Krypton SRAM Rival 22
Argon 18
Endurance

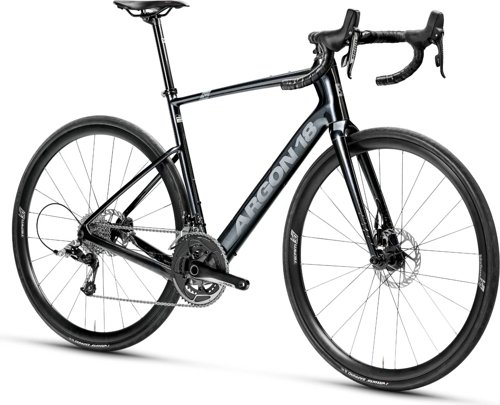

Krypton SRAM Rival 22 is a carbon endurance road bike (2024), by Argon 18, in the Krypton series. It is best suited to a wide range of riders thanks to its fit flexibility, leaning toward a balanced riding position, and is best matched to paved roads. Its profile is strongest in areas like good fit flexibility for dialing in rider position, balanced, versatile speed for everyday riding, and a balanced aero profile for mixed road priorities. Compare this bike on MatchBikes.com to similar endurance models.
5.2
Rating

+9
Image 1 of 15
Score Summary
Performance
3.9
Value
6.1
Fit
6.2
Performance
Built for speed and efficiency
Speed
6.3
Medium
Climbing Efficiency
3.3
Hefty but Manageable
Aerodynamics
5.9
Balanced Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.6
Balanced
Fit Flexibility
8.4
Adjustable
Ride Comfort
4.8
Balanced
Value
Value for Money
6.1
Fair Value
Surface Range
Road OnlySpecifications
General
Brand
Argon 18
Model
Krypton SRAM Rival 22
Year
2024
Price
$3,360
Category
Road
Sub Category
Endurance
Groupset
Rival
Wheels
700c
Frame
Frame
Krypton
Suspension Fork
Krypton
Suspension Type
Rigid
Drivetrain
Shift Levers
SRAM Rival 22 HRD
Rear Derailleur
SRAM Rival 22 MAX 11-32CS
Front Derailleur
SRAM Rival 22 YAW with Chain Spotter
Crank
SRAM Rival 50/34
Bottom Bracket
SRAM GXP T47
Chain
KMC X11 EPT Chain
Wheels
Rims
Vision Team 30 TC
Tires
Vittoria Zaffiro 700x30c
Brakes
Brake Type
Hydraulic Disc
Brake Description
SRAM Rival 22 HRD
Brake Levers
SRAM Rival 22 HRD
Cockpit
Handlebar
Ciclovation Leather Touch Tornado Gloss
Seat
Saddle
Repente Quasar S
Seatpost
Argon 18 TDS-C
Geometry
| Measurement | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.465 mm | 1.48 mm | 1.493 mm | 1.513 mm | 1.532 mm | 1.547 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 258 mm | 258 mm | 258 mm | 258 mm |
| Front Center | 573 mm | 582 mm | 587 mm | 602 mm | 617 mm | 630 mm |
| Rake | 52 mm | 52 mm | 47 mm | 48 mm | 47 mm | 47 mm |
| Trail | 64 mm | 59 mm | 59 mm | 58 mm | 59 mm | 56 mm |
| Stack | 523 mm | 543 mm | 563 mm | 584 mm | 605 mm | 628 mm |
| Reach | 357 mm | 367 mm | 377 mm | 386 mm | 395 mm | 406 mm |
| Top Tube Length | 496 mm | 516 mm | 537 mm | 558 mm | 580 mm | 604 mm |
| Seat Tube Angle | 75.5 ° | 74.9 ° | 74.3 ° | 73.7 ° | 73.1 ° | 72.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 485 mm | 520 mm | 555 mm | 590 mm |
| Head Tube Angle | 70.6 ° | 71.5 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.8 ° |
| Head Tube Length | 106 mm | 123 mm | 142 mm | 164 mm | 186 mm | 208 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 975 mm | 984 mm | 989 mm | 1005 mm | 1020 mm | 1033 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 78 mm | 78 mm | 78 mm | 78 mm |
| Standover Height | 675 mm | 704 mm | 738 mm | 770 mm | 801 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
