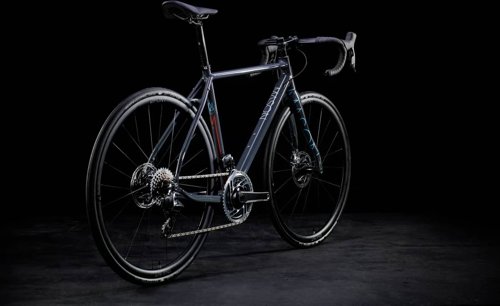

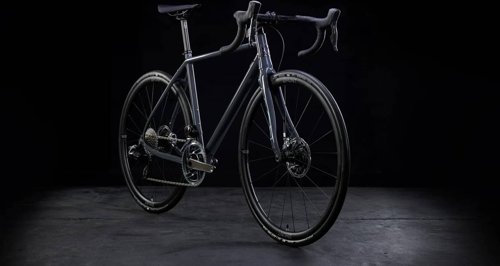

Definition Red AXS
mason
Endurance

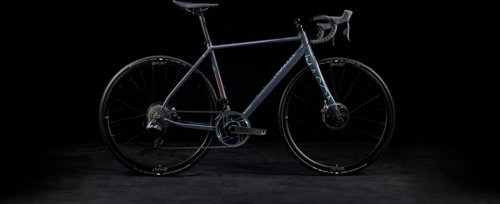

Definition Red AXS is an alloy endurance road bike (2022), by Mason, in the Definition series. It suits a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, and is best matched to paved roads. Standout strengths from the metrics include good fit flexibility for dialing in rider position, strong speed potential on smoother terrain, and a balanced aero profile for mixed road priorities. At the same time, the main trade-off is a firmer ride feel than comfort-first options and a value score that depends more on priorities than pure price efficiency. This summary is a starting point—compare this bike on MatchBikes.com with similar bikes.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | 48cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.45 mm | 1.48 mm | 1.5 mm | 1.5 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm |
| Front Center | 580 mm | 590 mm | 595 mm | 600 mm | 610 mm | 615 mm | 620 mm | 630 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 69 mm | 66 mm | 66 mm | 66 mm | 66 mm | 63 mm | 63 mm | 60 mm |
| Stack | 527.1 mm | 538.3 mm | 547.8 mm | 560.5 mm | 574.7 mm | 586.1 mm | 594.1 mm | 615.1 mm |
| Reach | 364.7 mm | 375.6 mm | 377.5 mm | 378 mm | 383.3 mm | 389.7 mm | 391.8 mm | 400.5 mm |
| Top Tube Length | 514 mm | 527.8 mm | 532.4 mm | 546.5 mm | 556.1 mm | 576.3 mm | 581 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 73.5 ° | 73.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 155 mm | 170 mm | 180 mm | 190 mm | 210 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 984 mm | 994 mm | 999 mm | 1004 mm | 1014 mm | 1019 mm | 1025 mm | 1035 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 71 mm | 71 mm | 71 mm | 70 mm | 70 mm |
| Standover Height | 736 mm | 751 mm | 765 mm | 782 mm | 799 mm | 813 mm | 828 mm | 848 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
