Diverge Sport Carbon
Specialized
Gravel

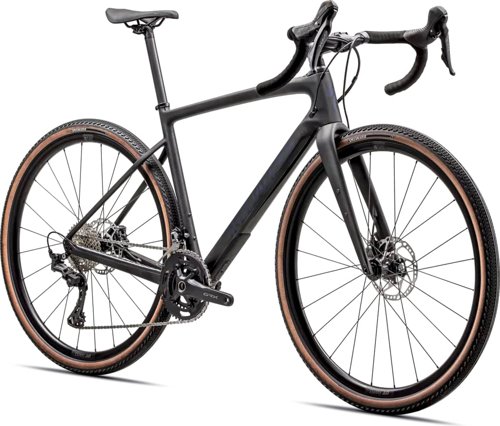

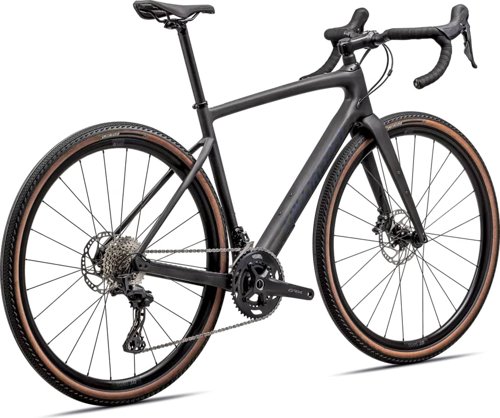

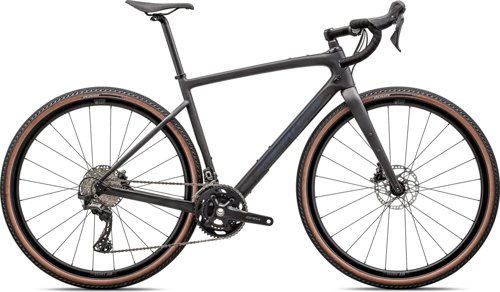

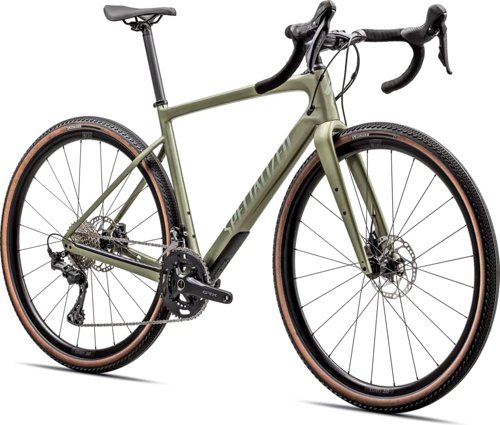

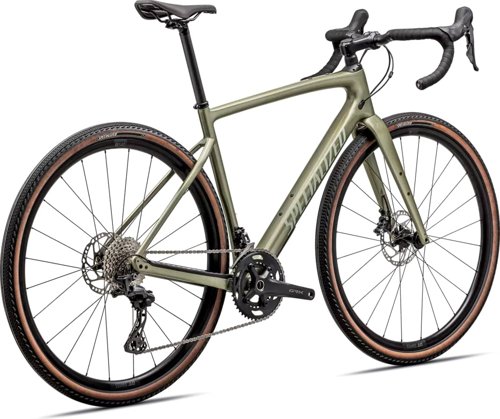

Diverge Sport Carbon is a carbon gravel road bike (2025), by Specialized, part of the Diverge family. It suits a wide range of riders thanks to its fit flexibility, leaning toward a balanced riding position, with a surface profile that is ready for gravel routes as well as pavement. Metric-wise, it stands out for strong climbing friendliness for sustained uphill riding, strong value-for-money versus many similar bikes, and good fit flexibility for dialing in rider position. Compared with more specialized alternatives, the compromise is less emphasis on outright speed than speed-focused builds. Add this bike to compare on MatchBikes.com and see how it stacks up against similar gravel models.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.591 mm | 1.564 mm | 1.543 mm | 1.546 mm | 1.556 mm | 1.581 mm | 1.607 mm | 1.632 mm |
| Bottom Bracket Height | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 604 mm | 607 mm | 614 mm | 620 mm | 630 mm | 647 mm | 664 mm | 675 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 72 mm | 69 mm | 66 mm | 61 mm | 57 mm | 57 mm | 57 mm | 54 mm |
| Stack | 568 mm | 571 mm | 577 mm | 592 mm | 610 mm | 634 mm | 659 mm | 684 mm |
| Reach | 357 mm | 365 mm | 374 mm | 383 mm | 392 mm | 401 mm | 410 mm | 419 mm |
| Top Tube Length | 515 mm | 529 mm | 542 mm | 558 mm | 573 mm | 589 mm | 605 mm | 628 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 363 mm | 390 mm | 430 mm | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.5 ° | 71.25 ° | 71.75 ° | 71.75 ° | 71.75 ° | 72.25 ° |
| Head Tube Length | 99 mm | 99 mm | 104 mm | 116 mm | 133 mm | 159 mm | 185 mm | 209 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1016 mm | 1019 mm | 1026 mm | 1032 mm | 1042 mm | 1059 mm | 1076 mm | 1088 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 683 mm | 700 | 725 mm | 754 mm | 779 mm | 805 mm | 832 mm | 859 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 142 cm | cm | 163 cm | 170 cm | 175 cm | 180 cm | 188 cm | 196 cm |
| Rider Max Height | 152 cm | cm | 170 cm | 178 cm | 180 cm | 188 cm | 196 cm | 205 cm |
