Substance Carbon HT Rival
Vitus
Gravel
Substance Carbon HT Rival is a carbon gravel road bike (2024), by Vitus, from the Substance lineup. It is a strong match for a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, with a surface profile that is built for broader mixed-surface riding and longer routes. On MatchBikes metrics, it scores well for good fit flexibility for dialing in rider position, a balanced ride feel between comfort and directness, and all-round climbing capability rather than a narrow specialty. The main trade-off is less emphasis on outright speed than speed-focused builds. Compare this bike on MatchBikes.com to similar gravel models.
5.7
Rating

+2

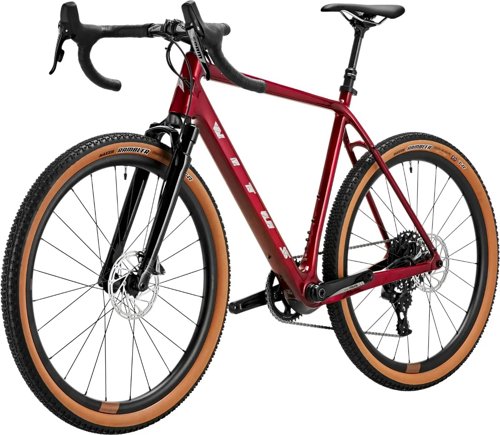

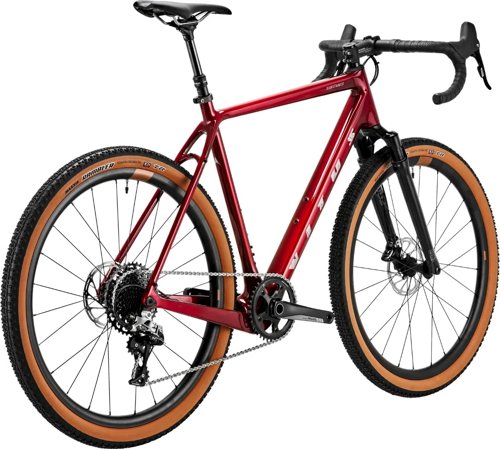

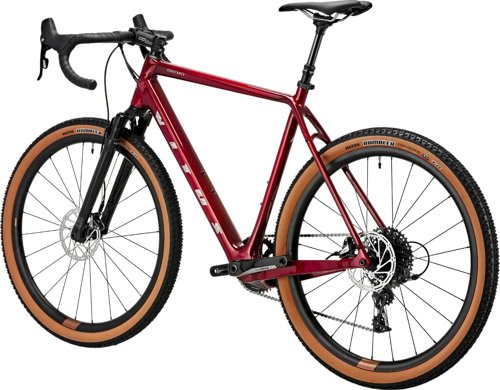

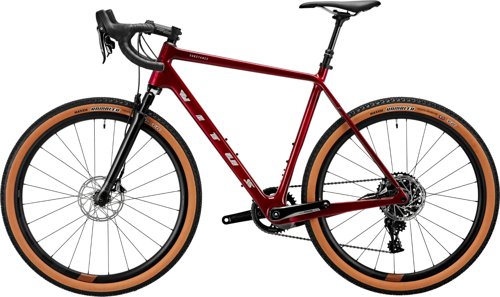

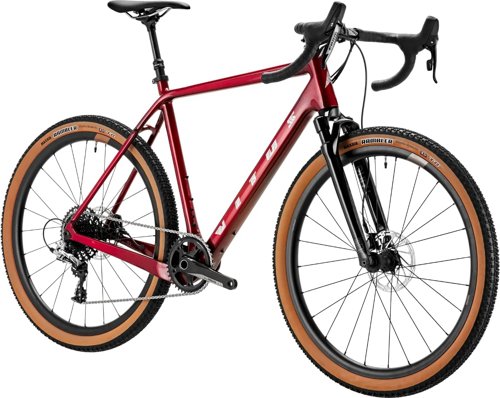

Image 1 of 8
Score Summary
Performance
4.2
Value
7.2
Fit
6.8
Performance
Built for speed and efficiency
Speed
2.2
Very Low
Climbing Efficiency
6.5
All-Rounder
Aerodynamics
4.9
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.3
Balanced
Fit Flexibility
7.9
Adjustable
Ride Comfort
6.6
Balanced
Value
Value for Money
7.2
Fair Value
Surface Range
AdventureSpecifications
General
Brand
Vitus
Model
Substance Carbon HT Rival
Year
2024
Price
$3,120
Weight
10.1 kg
Category
Road
Sub Category
Gravel
Groupset
Rival
Frame
Frame
Substance Carbon, UD Carbon, Internal Cable Routing, Flat Mount, 1x Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
RockShox Rudy XPLR, 30mm Travel, Tapered Steerer, 100 x 12mm, Flat Mount
Suspension Type
Hardtail
Drivetrain
Shift Levers
SRAM Rival, 11 Speed
Rear Derailleur
SRAM Rival, 11 Speed, Long Cage
Front Derailleur
undefined, N/A
Cassette
SRAM PG 1130, 11 Speed, 11-42T
Crank
SRAM Rival X-Sync, 40T, 11 Speed, XS:170mm S:170mm M:172.5mm L:172.5mm XL:175mm
Bottom Bracket
SRAM GXP, BSA Threaded, 68mm, English
Chain
KMC X11, 11 Speed
Wheels
Front Hub
Prime SR2D, 12x100mm, Centre Lock
Rear Hub
Prime SR2D, 142x12mm, Centre Lock, HG Freehub, 36T Ratchet System
Rims
Front: Prime Orra V2 Alloy, 650b, Tubeless Ready, Rear: Prime Orra V2 Alloy, 650b, Tubeless Ready
Tires
Front: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall, Rear: Maxxis Rambler, 650b x 47, Tubeless Ready, EXO Casing, Tan Wall
Brakes
Brake Type
Hydraulic Disc
Brake Description
SRAM Rival, Hydraulic Disc, Flat Mount
Cockpit
Stem
FSA Omega 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 6 degrees, XS:80mm S:90mm M:90mm L:100mm XL:110mm
Handlebar
FSA Adventure Compact Handlebars, 6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, XS:400mm S:420mm M:420mm L:440mm XL:440mm
Grips
Vitus Super Grip, Anti Slip, Shockproof
Seat
Saddle
Vitus, Ti Rail
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.466 mm | 1.507 mm | 1.531 mm | 1.554 mm | 1.59 mm |
| Front Center | 589.1 mm | 595.3 mm | 595.4 mm | 605.7 mm | 615.2 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 59 mm | 61 mm | 53 mm | 50 mm | 43 mm |
| Stack | 536.6 mm | 557.4 mm | 568 mm | 589.8 mm | 608.9 mm |
| Reach | 366 mm | 369.8 mm | 371 mm | 379.6 mm | 382.9 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1020 mm | 1021 mm | 1025 mm | 1036 mm | 1052 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 154 cm | 161 cm | 169 cm | 177 cm | 184 cm |
| Rider Max Height | 164 cm | 172 cm | 180 cm | 187 cm | 193 cm |
