Substance V
Vitus
Gravel

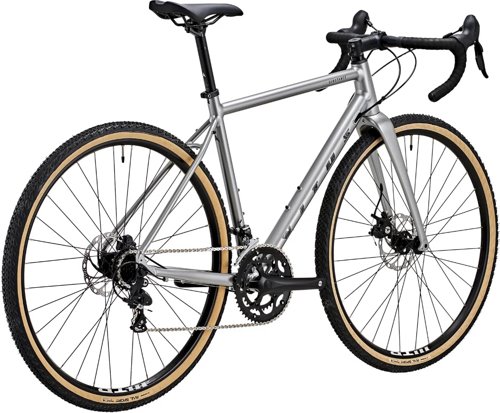

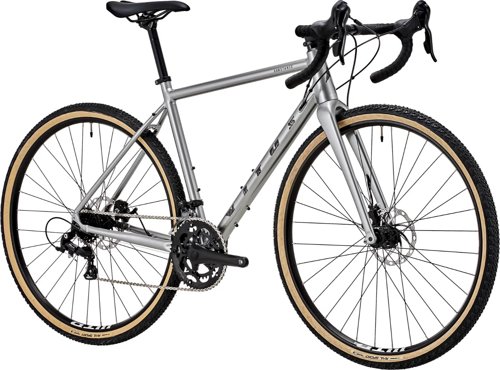

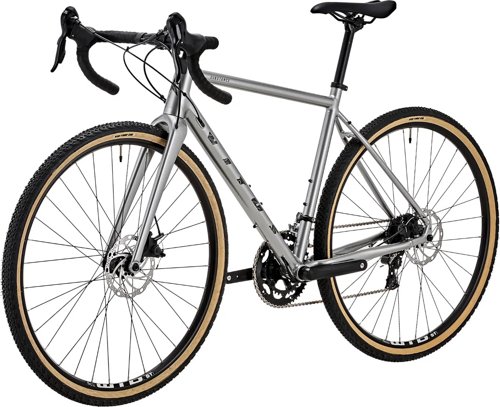

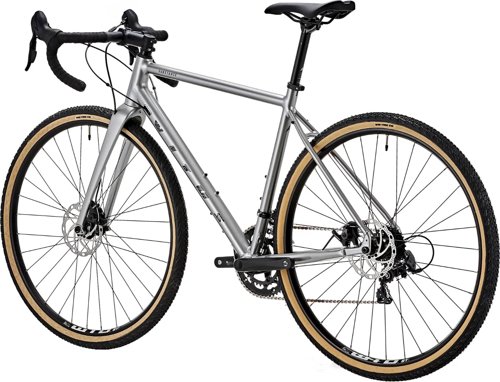

Substance V is an alloy gravel road bike (2024), from Vitus, in the Substance series. It is best suited to a wide range of riders thanks to its fit flexibility, with a balanced riding position, while being ready for gravel routes as well as pavement. The main strengths in the metrics are strong value-for-money versus many similar bikes, good fit flexibility for dialing in rider position, and a balanced ride feel between comfort and directness. The main trade-off is less emphasis on outright speed than speed-focused builds. If this looks close to what you want, compare this bike on MatchBikes.com against similar models.
5.7
Rating

+2
Image 1 of 8
Score Summary
Performance
3.0
Value
9.9
Fit
6.7
Performance
Built for speed and efficiency
Speed
2.7
Very Low
Climbing Efficiency
4.7
All-Rounder
Aerodynamics
4.7
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
6.0
Balanced
Fit Flexibility
7.9
Adjustable
Ride Comfort
6.0
Balanced
Value
Value for Money
9.9
Exceptional Value
Surface Range
Gravel ReadySpecifications
General
Brand
Vitus
Model
Substance V
Year
2024
Price
$973
Weight
11.1 kg
Category
Road
Sub Category
Gravel
Groupset
microSHIFT R8
Frame
Frame
Substance Aluminium, 6061-T6 Double Butted Aluminium, Internal Cable Routing, 1X Dropper Post Compatible, Mudguard Mounts, Rack Mounts, 142 x 12mm Hub Spacing, Flat Mount, Axle Specifcations: 160mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Fork
Substance Carbon, UD Carbon, Tapered Steerer, 100 x 12mm, Mudguard Mounts, Flat Mount, Axle Specifcations: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch
Suspension Type
Rigid
Drivetrain
Shift Levers
Microshift R8, SB-R482, 8 Speed
Rear Derailleur
Microshift R8, RD-R32S, Short Cage, 8 Speed
Front Derailleur
Microshift R8, FD-R252B, Band Type (31.8mm Clamp), 2 x 8 Speed
Cassette
Microshift H-Series, 8 Speed, 11-28T
Crank
Prowheel Ounce, 50/34T, 8 Speed, XS:165mm S:170mm M:172.5mm L:172.5mm XL:175mm XXL:175mm
Bottom Bracket
Cartridge Square Taper, BSA Threaded, 68mm, English
Chain
KMC X8, 8 Speed
Wheels
Front Hub
Vitus KT, XF1F-12, 100 x 12mm, 6 Bolt, 32 Hole
Rear Hub
Vitus KT, M4ZR, 142 x 12mm, 6 Bolt, 32 Hole, HG Freehub
Rims
Front: WTB ST i23 TCS 2.0, 700c, 32 Hole, Tubeless Ready, Rear: WTB ST i23 TCS 2.0, 700c, 32 Hole, Tubeless Ready
Tires
Front: Vee Tire Co. Rail Sport, 700c x 40c, MPC Compound, Skin Wall, Rear: Vee Tire Co. Rail Sport, 700c x 40c, MPC Compound, Skin Wall
Brakes
Brake Type
Mechanical Disc
Brake Description
Tektro MD-C310 Disc Brake, Flat Mount, Cable Actuated
Cockpit
Stem
Vitus 6061 Aluminium, 3D Forged, Bar Bore: 31.8mm, +/- 7 degrees, XS:80mm S:80mm M:90mm L:100mm XL:110mm XXL:110mm
Handlebar
Vitus 6061 Aluminium, 80mm Reach, 124mm Drop, XS:400mm S:400mm M:420mm L:420mm XL:440mm XXL: 440mm
Grips
Vitus, EVA Cork
Seat
Saddle
Vitus, Steel Rail
Seatpost
Vitus 6061 Aluminium, 27.2mm x 350mm, 12mm Offset
Geometry
| Measurement | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.462 mm | 1.487 mm | 1.476 mm | 1.495 mm | 1.471 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 591.4 mm | 596.6 mm | 605.1 mm | 617.4 mm | 630.6 mm | 645.2 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 65 mm | 64 mm | 64 mm | 67 mm | 67 mm |
| Stack | 534 mm | 551 mm | 568 mm | 577 mm | 595 mm | 606 mm |
| Reach | 371 mm | 377 mm | 382 mm | 391 mm | 398 mm | 412 mm |
| Top Tube Length | 522 mm | 535 mm | 550 mm | 562 mm | 578 mm | 595 mm |
| Seat Tube Angle | 74.2 ° | 74 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm | 575 mm |
| Head Tube Angle | 70.6 ° | 71.3 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.75 ° |
| Head Tube Length | 112 mm | 127 mm | 144 mm | 154 mm | 173 mm | 184 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 440 mm | 440 mm |
| Wheelbase | 1017 mm | 1022 mm | 1031 mm | 1043 mm | 1057 mm | 1071 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 161 cm | 169 cm | 177 cm | 184 cm | 192 cm |
| Rider Max Height | 164 cm | 172 cm | 180 cm | 187 cm | 194 cm | 203 cm |
