Aeroad CF SL 8 Disc
Canyon
Aero
Aeroad CF SL 8 Disc is a carbon aero road bike (2024), by Canyon, from the Aeroad lineup. It suits riders who want a sporty road feel without a full race fit, with a sporty riding position, with a surface profile that is best matched to paved roads. The main strengths in the metrics are strong value-for-money versus many similar bikes, a clearly aero-focused setup for faster road riding, and strong speed potential on smoother terrain. At the same time, compared with more specialized alternatives, the compromise is a firmer ride feel than comfort-first options. Compare this bike with other aero bikes on MatchBikes.com.
6.7
Rating

Image 1 of 6
Score Summary
Performance
6.3
Value
10.0
Fit
5.6
Performance
Built for speed and efficiency
Speed
7.4
High
Climbing Efficiency
5.6
All-Rounder
Aerodynamics
9.8
Full Aero
Fit
Dialed-in Fit & Comfort
Riding Position
6.6
Sporty
Fit Flexibility
6.6
Moderately Adjustable
Ride Comfort
2.7
Firm
Value
Value for Money
10.0
Exceptional Value
Surface Range
Road OnlySpecifications
General
Brand
Canyon
Model
Aeroad CF SL 8 Disc
Year
2024
Price
$3,999
Weight
7.82 kg
Category
Road
Sub Category
Aero
Groupset
Ultegra
Frame
Frame

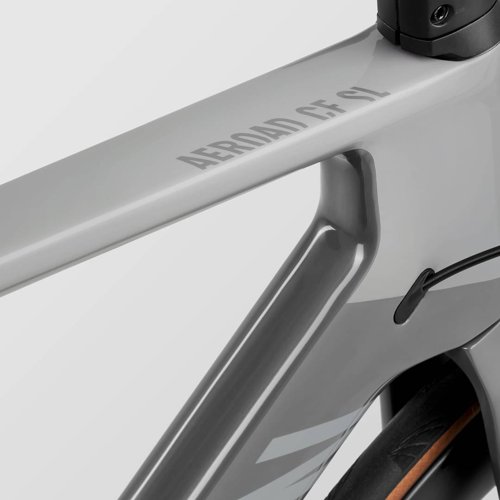

Aeroad CF SL, Aero frame with the same design as the flagship Aeroad CFR. Shaped by extensive supercomputer analysis, validated in the wind tunnel., Axle dimension: 12x142 mm, Tyre Clearance: 31 mm, Material: Carbon (CF)
Suspension Fork
Fork for R082 Aeroad 700c, Aerodynamically optimised design, compatible with conventional aero cockpits. Tested and approved with computer tomography scanning., Fork steer tube diameter: 1 1/4", Tyre Clearance: 31 mm, Material: Carbon (CF)
Suspension Type
Rigid
Drivetrain
Shift Levers
Shimano Ultegra R8020 2s, Weight: 0.48 lbs | Shimano Ultegra R8020 11s, Weight: 0.49 lbs
Rear Derailleur
Shimano Ultegra R8000 SS, Cage length: short, Weight: 0.46 lbs
Front Derailleur
Shimano Ultegra R8000, Weight: 0.20 lbs
Cassette
Shimano Ultegra R8000 11-30 11s, Number of sprockets: 11, Range: 11-30
Crank
Shimano Ultegra R8000, Number of chainrings: 2
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 0.19 lbs
Chain
Shimano HG701 11-speed, High-grade chain with premium SIL-TEC treatment on roller link plate and pin link plate for increased durability and efficiency.
Wheels
Rims
DT Swiss ARC 1600, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 62 mm, Inner width: 20 mm, Rim material: Carbon, Weight: 1.85 lbs | DT Swiss ARC 1600 Dicut, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 62 mm, Weight: 2.16 lbs
Tires
Continental Grand Prix 5000 25mm, Width: 25mm, Weight: 0.54 lbs | Continental Grand Prix 5000, 28 mm, Width: 28mm, Weight: 0.54 lbs
Brakes
Brake Type
Hydraulic Disc
Brake Description
Shimano Ultegra R8020 2s, Weight: 0.48 lbs | Shimano Ultegra R8020 11s, Weight: 0.49 lbs
Brake Levers
Shimano Ultegra R8020 2s, Weight: 0.48 lbs | Shimano Ultegra R8020 11s, Weight: 0.49 lbs
Seat
Saddle
Selle Italia Model X, Gender: Unisex, Weight: 0.69 lbs
Seatpost

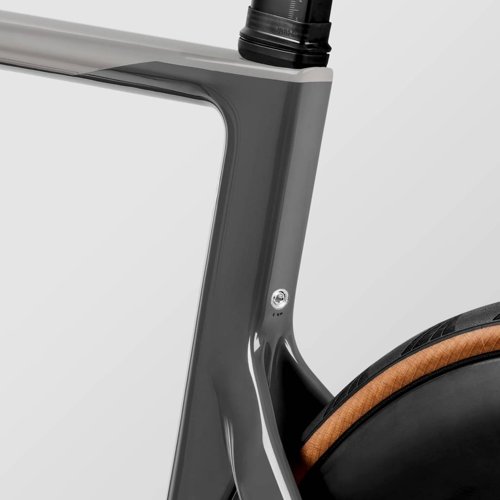

Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering., Clamp diameter: 27,2 mm
Geometry
| Measurement | XXXS | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.349 mm | 1.339 mm | 1.378 mm | 1.382 mm | 1.425 mm | 1.446 mm | 1.446 mm | 1.455 mm |
| Front Center | 553 mm | 569 mm | 578 mm | 584 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 44 mm | 43 mm | 42 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 64 mm | 60 mm | 67 mm | 60 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 483 mm | 498 mm | 521 mm | 539 mm | 560 mm | 580 mm | 606 mm | 624 mm |
| Reach | 358 mm | 372 mm | 378 mm | 390 mm | 393 mm | 401 mm | 419 mm | 429 mm |
| Top Tube Length | 501 mm | 520 mm | 533 mm | 549 mm | 559 mm | 572 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 413 mm | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 71.5 ° | 72.75 ° | 73.25 ° | 73.25 ° | 73.5 ° | 73.75 ° |
| Head Tube Length | 103 mm | 121 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 405 mm | 405 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 951 mm | 967 mm | 977 mm | 984 mm | 989 mm | 1002 mm | 1025 mm | 1038 mm |
| Bottom Bracket Drop | 57 mm | 57 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 708 mm | 729 mm | 759 mm | 785 mm | 810 mm | 834 mm | 860 mm | 884 mm |
| Wheels | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 159 cm | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
