Croix De Fer 40
Genesis
Gravel

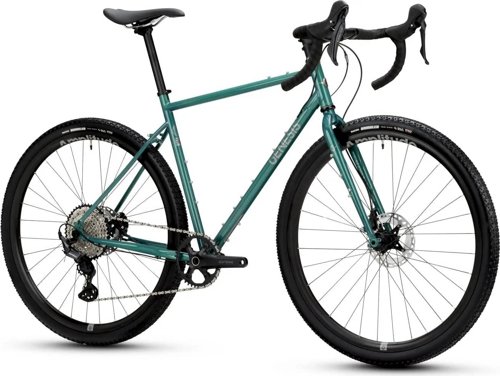

Croix De Fer 40 is a steel gravel road bike (2024), from Genesis, part of the Croix De family. This bike is aimed at a wide range of riders thanks to its fit flexibility, with a balanced riding position, and is ready for gravel routes as well as pavement. On MatchBikes metrics, it scores well for good fit flexibility for dialing in rider position, a balanced ride feel between comfort and directness, and less emphasis on aero shaping than on comfort or versatility. At the same time, compared with more specialized alternatives, the compromise is less emphasis on outright speed than speed-focused builds. Use MatchBikes.com to compare this bike with nearby gravel options.
4.9
Rating

Image 1 of 2
Score Summary
Performance
3.2
Value
5.7
Fit
6.6
Performance
Built for speed and efficiency
Speed
3.6
Very Low
Climbing Efficiency
4.4
All-Rounder
Aerodynamics
4.5
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.3
Balanced
Fit Flexibility
8.1
Adjustable
Ride Comfort
5.9
Balanced
Value
Value for Money
5.7
Fair Value
Surface Range
Gravel ReadySpecifications
General
Brand
Genesis
Model
Croix De Fer 40
Year
2024
Price
$3,044
Category
Road
Sub Category
Gravel
Groupset
GRX 800, GRX 600
Frame
Frame
Steel
Suspension Fork
Chromoly Disc Fork With Anything Cage Mounts
Suspension Type
Rigid
Drivetrain
Shift Levers
Shimano GRX ST-RX600 11 Speed
Rear Derailleur
Shimano GRX RD-RX810 Medium Cage
Front Derailleur
Shimano GRX FD-RX810
Cassette
Shimano CS-HG700-11 11-34T
Bottom Bracket
Prowheel BB68+
Chain
KMX X11
Wheels
Front Hub
Formula Front - CL-712 / Rear - RXC-142S
Rear Hub
Formula Front - CL-712 / Rear - RXC-142S
Rims
WTB ST i23 TCS 2.0 32H
Spokes
Steel 14 g
Tires
WTB Raddler 700 x 40c Tubeless Ready
Brakes
Brake Type
Hydraulic Disc
Brake Description
Shimano GRX BR-RX400 Hydraulic Disc
Brake Levers
Shimano GRX ST-RX600 11 Speed
Cockpit
Stem
Genesis Alloy 31.8mm -6 deg 100 mm
Seat
Saddle
Genesis
Seatpost
Genesis Alloy 27.2 x 350 mm
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.397 mm | 1.433 mm | 1.519 mm | 1.529 mm | 1.538 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 617 mm | 621 mm | 618 mm | 634 mm | 651 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 67 mm | 67 mm | 68 mm | 67 mm |
| Stack | 552 mm | 566 mm | 585 mm | 604 mm | 623 mm |
| Reach | 395 mm | 395 mm | 385 mm | 395 mm | 405 mm |
| Top Tube Length | 553 mm | 557 mm | 558 mm | 574 mm | 589 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1042 mm | 1046 mm | 1043 mm | 1059 mm | 1076 mm |
| Bottom Bracket Drop | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Standover Height | 741 mm | 759 mm | 785 mm | 809 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 170 cm | 177 cm | 184 cm |
| Rider Max Height | 165 cm | 173 cm | 180 cm | 187 cm | 193 cm |
