TERRA H41 1X
Orbea
Gravel

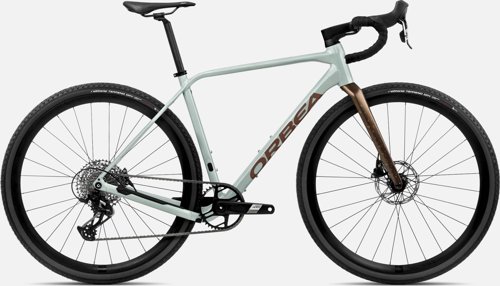

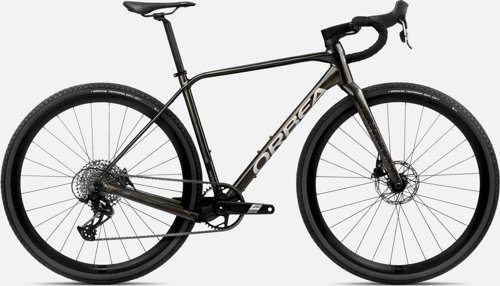

TERRA H41 1X is an alloy gravel road bike (2024), by Orbea, in the Terra series. This model is best for a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, and is ready for gravel routes as well as pavement. Its profile is strongest in areas like good fit flexibility for dialing in rider position, a balanced ride feel between comfort and directness, and less emphasis on aero shaping than on comfort or versatility. That said, the main trade-off is less emphasis on outright speed than speed-focused builds and a value score that depends more on priorities than pure price efficiency. Compare this bike on MatchBikes.com to similar gravel models.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.435 mm | 1.465 mm | 1.499 mm | 1.527 mm | 1.555 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 602 mm | 612 mm | 621 mm | 635 mm | 644 mm | 653 mm |
| Rake | 56 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 62 mm | 59 mm | 59 mm | 56 mm | 53 mm |
| Stack | 526 mm | 548 mm | 570 mm | 592 mm | 614 mm | 636 mm |
| Reach | 375 mm | 382 mm | 389 mm | 395 mm | 402 mm | 409 mm |
| Top Tube Length | 526 mm | 539 mm | 558 mm | 570 mm | 590 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 425 mm | 458 mm | 491 mm | 524 mm | 557 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1020 mm | 1030 mm | 1039 mm | 1054 mm | 1063 mm | 1072 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 704 mm | 731 mm | 759 mm | 788 mm | 815 mm | 838 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
