TERRA M41e TEAM 1X
Orbea
Gravel

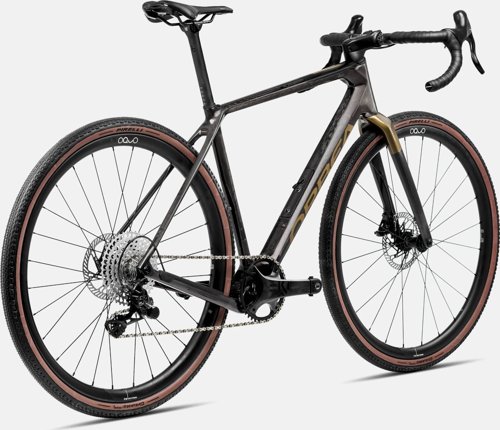

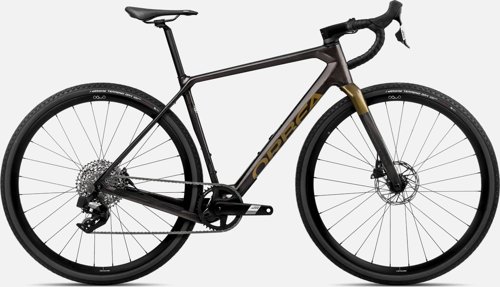

TERRA M41e TEAM 1X is a carbon gravel road bike (2024), from Orbea, in the Terra series. This model is best for a wide range of riders thanks to its fit flexibility, with a balanced riding position, and is ready for gravel routes as well as pavement. Based on the metrics, key strengths are good fit flexibility for dialing in rider position, a balanced ride feel between comfort and directness, and less emphasis on aero shaping than on comfort or versatility. At the same time, the main limitation versus more focused builds is less emphasis on outright speed than speed-focused builds. Compare this bike with other gravel bikes on MatchBikes.com.
5.1
Rating

Image 1 of 4
Score Summary
Performance
3.4
Value
6.8
Fit
6.4
Performance
Built for speed and efficiency
Speed
4.4
Very Low
Climbing Efficiency
4.1
All-Rounder
Aerodynamics
4.7
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.7
Balanced
Fit Flexibility
7.8
Adjustable
Ride Comfort
5.5
Balanced
Value
Value for Money
6.8
Fair Value
Surface Range
Gravel ReadySpecifications
General
Brand
Orbea
Model
TERRA M41e TEAM 1X
Year
2024
Price
$3,779
Category
Road
Sub Category
Gravel
Groupset
Apex XPLR AXS, Apex AXS
Wheels
700c
Frame
Frame
Orbea Terra carbon OMR Disc, monocoque construction, HS 1,5", PF30, powermeter compatible, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, LOCKR service box
Suspension Fork
Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Suspension Type
Rigid
Drivetrain
Shift Levers
SRAM Apex AXS
Rear Derailleur
SRAM Apex XPLR AXS 12s
Cassette
SRAM PG-1231 XPLR 11-44t 12-Speed
Crank
SRAM Apex 1 DM Dub Wide 40t Aluminium
Bottom Bracket
PF30, press-fit
Chain
SRAM Apex 12-Speed
Wheels
Rims
Oquo Road Control RC25PRO
Tires
Vittoria Terreno Dry CX-Gravel G2.0 TNT 700x38c
Brakes
Brake Type
Hydraulic Disc
Brake Description
SRAM Apex AXS
Cockpit
Stem
OC Road Performance RP21, -6º
Handlebar
OC Gravel GR31, Reach 70, Drop 110
Seat
Saddle
Prologo Akero AGX STN size 155mm
Seatpost
SP 0.2 Carbon, 27.2mm, Setback 20
Geometry
| Measurement | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.435 mm | 1.465 mm | 1.499 mm | 1.527 mm | 1.555 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 601 mm | 611 mm | 621 mm | 635 mm | 644 mm | 653 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 66 mm | 62 mm | 59 mm | 59 mm | 56 mm | 53 mm |
| Stack | 526 mm | 548 mm | 570 mm | 592 mm | 614 mm | 636 mm |
| Reach | 375 mm | 382 mm | 389 mm | 395 mm | 402 mm | 409 mm |
| Top Tube Length | 526 mm | 539 mm | 558 mm | 570 mm | 590 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 438 mm | 471 mm | 504 mm | 537 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1009 mm | 1019 mm | 1029 mm | 1044 mm | 1053 mm | 1062 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 713 mm | 746 mm | 768 mm | 798 mm | 825 mm | 853 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
