GREVIL F7 – SHIMANO GRX 820
Pinarello
Gravel
GREVIL F7 – SHIMANO GRX 820 is a gravel road bike (2024), by Pinarello, in the Grevil series. It is a strong match for a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, with a surface profile that is ready for gravel routes as well as pavement. Standout strengths from the metrics include good fit flexibility for dialing in rider position, balanced, versatile speed for everyday riding, and a balanced ride feel between comfort and directness. Compare this bike on MatchBikes.com to similar gravel models.
5.4
Rating

Image 1 of 2
Score Summary
Performance
4.5
Fit
6.7
Performance
Built for speed and efficiency
Speed
6.8
Medium
Climbing Efficiency
4.4
All-Rounder
Aerodynamics
4.7
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.4
Balanced
Fit Flexibility
8.4
Adjustable
Ride Comfort
5.9
Balanced
Value
Surface Range
Gravel ReadySpecifications
General
Brand
Pinarello
Model
GREVIL F7 – SHIMANO GRX 820
Year
2024
Category
Road
Sub Category
Gravel
Frame
Suspension Type
Rigid

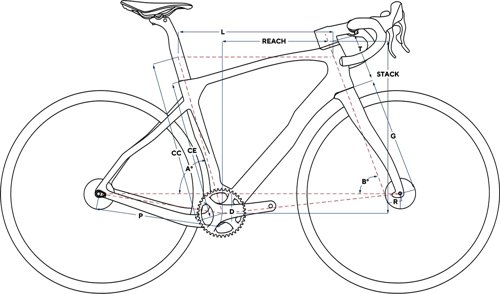

Geometry
| Measurement | 47cm | 50cm | 53cm | 55cm | 57.5cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.532 mm | 1.545 mm | 1.554 mm | 1.562 mm | 1.578 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 282 mm | 282 mm | 282 mm | 282 mm |
| Rake | 55 mm | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 548.4 mm | 563.5 mm | 578.4 mm | 593.5 mm | 608.8 mm | 628.8 mm |
| Reach | 360.1 mm | 367.8 mm | 374.4 mm | 382 mm | 389.7 mm | 398.5 mm |
| Top Tube Length | 520 mm | 535 mm | 547 mm | 560 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.75 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 410 mm | 445 mm | 475 mm | 500 mm | 520 mm | 550 mm |
| Head Tube Angle | 70.25 ° | 70.5 ° | 70.75 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 120 mm | 135 mm | 155 mm | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 425 mm | 425 mm | 425 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
