DOGMA F SUPER RECORD WRL
Pinarello
Race
DOGMA F SUPER RECORD WRL is a race road bike (2024), from Pinarello, in the Dogma series. This bike is aimed at riders who want a sporty road feel without a full race fit, with a sporty riding position, while being best matched to paved roads. On MatchBikes metrics, it scores well for an aero-leaning setup that still keeps some versatility, strong speed potential on smoother terrain, and good fit flexibility for dialing in rider position. At the same time, what it gives up slightly is a firmer ride feel than comfort-first options. Add this bike to compare on MatchBikes.com and see how it stacks up against similar race models.
6.8
Rating

Image 1 of 2
Score Summary
Performance
7.3
Fit
5.6
Performance
Built for speed and efficiency
Speed
8.7
Very High
Climbing Efficiency
6.2
All-Rounder
Aerodynamics
7.8
Aero-Enhanced
Fit
Dialed-in Fit & Comfort
Riding Position
6.4
Sporty
Fit Flexibility
7.0
Adjustable
Ride Comfort
2.5
Race-Stiff
Value
Surface Range
Road OnlySpecifications
General
Brand
Pinarello
Model
DOGMA F SUPER RECORD WRL
Year
2024
Weight
6.88 kg
Category
Road
Sub Category
Race
Groupset
Super Record Wireless
Frame
Frame
TorayCa M40X, TiCR™ Cable Routing, Italian BB
Suspension Fork
NEW eTICR Onda Fork with ForkFlap™, 1.5' upper and lower steerer
Suspension Type
Rigid
Drivetrain
Rear Derailleur
Campagnolo Super Record WRL 12S
Front Derailleur
Campagnolo Super Record WRL 12S
Cassette
Campagnolo Super Record WRL 12S
Crank
Campagnolo Super Record WRL 12S
Bottom Bracket
campagnolo super record
Chain
Campagnolo Super Record WRL 12S
Wheels
Rims
Campagnolo Bora WTO
Tires
Continental Gran Prix 5000S TR28-622
Brakes
Brake Type
Hydraulic Disc
Brake Description
Front: Campagnolo Super Record 2 pistons, 160mm rotor, Rear: Campagnolo Super Record 2 pistons, 160mm rotor
Cockpit
Handlebar
most bar tape
Seat
Saddle
Most Lynx Ultrafast Superflow L Carbon Large 145mm
Seatpost
Pinarello Aero seatpost with 3D printed titanium top seatclamp and bolts

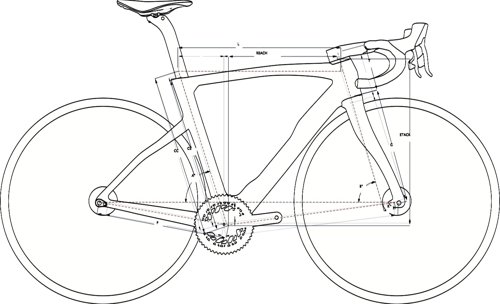

Geometry
| Measurement | 43cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.428 mm | 1.416 mm | 1.411 mm | 1.407 mm | 1.407 mm | 1.43 mm | 1.443 mm | 1.459 mm | 1.474 mm | 1.559 mm | 1.589 mm |
| Bottom Bracket Height | 269 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm | 269 mm | 269 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Stack | 502 mm | 517.3 mm | 525.2 mm | 532.1 mm | 542.4 mm | 551 mm | 561.5 mm | 570.1 mm | 584.8 mm | 613.2 mm | 651.6 mm |
| Reach | 351.5 mm | 365.4 mm | 372.2 mm | 378.2 mm | 385.6 mm | 385.3 mm | 389.2 mm | 390.8 mm | 396.7 mm | 393.4 mm | 410 mm |
| Top Tube Length | 500 mm | 515 mm | 525 mm | 535 mm | 545 mm | 550 mm | 557 mm | 565 mm | 575 mm | 587 mm | 620 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 425 mm | 450 mm | 465 mm | 485 mm | 500 mm | 510 mm | 520 mm | 525 mm | 540 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 102 mm | 109 mm | 114 mm | 119 mm | 128 mm | 136 mm | 147 mm | 154.5 mm | 168 mm | 204 mm | 244 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 408 mm | 408 mm | 409 mm | 409 mm | 409 mm | 411 mm |
| Bottom Bracket Drop | 67 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
