KANSAS CITY
Megamo
Gravel

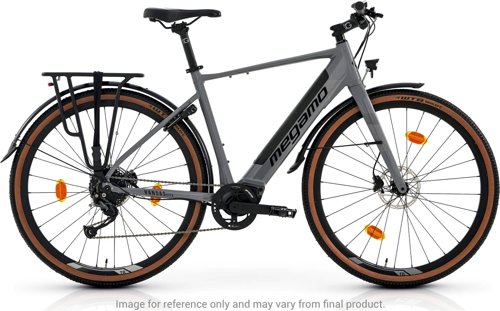

KANSAS CITY is an alloy electric gravel road bike (2024), from Megamo, in the Kansas series. It suits riders who prioritize comfort, confidence, and longer rides, with a comfort-leaning riding position, and is ready for gravel routes as well as pavement. Its strongest points in the MatchBikes metrics are good fit flexibility for dialing in rider position, a balanced ride feel between comfort and directness, and battery support that suits regular day-to-day rides. That said, the main limitation versus more focused builds is less emphasis on outright speed than speed-focused builds. Next step: compare this bike with other gravel models on MatchBikes.com.
3.9
Rating

Image 1 of 2
Score Summary
Performance
1.8
Fit
6.6
Performance
Built for speed and efficiency
Speed
1.6
Very Low
Climbing Efficiency
2.4
Hefty but Manageable
Aerodynamics
4.3
Non-Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.1
Comfort
Fit Flexibility
7.7
Adjustable
Ride Comfort
6.4
Balanced
Value
Surface Range
Gravel ReadyBattery
Battery
4.4
Regular rides
Specifications
General
Brand
Megamo
Model
KANSAS CITY
Year
2024
Category
E-bikeRoad
Sub Category
Gravel
Groupset
CUES, FSA
Wheels
700c
Frame
Frame
Aluminium frame, Central motor, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Suspension Type
Rigid
Drivetrain
Shift Levers
Shimano CUES 9s
Rear Derailleur
Shimano CUES 9s
Crank
FSA 38T
Wheels
Rims
Megamo GR 700 - TLR
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brake Type
Mechanical Disc
Brake Description
Mechanical Disc
Cockpit
Stem
Megamo FOV
Handlebar
Megamo FOV Compact
Seat
Saddle
Sellie Italia Model X Superflow
Seatpost
Megamo 30,9mm
E-Bike Components
Motor
Megamo central motor 200W 65Nm
Battery
integrated (Li-Ion) 36v - 14 Ah - 504 Wh
Range
4.4
Geometry
| Measurement | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.558 mm | 1.515 mm | 1.654 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm |
| Front Center | 607 mm | 611 mm | 615 mm |
| Rake | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 61 mm | 54 mm |
| Stack | 581.05 mm | 584.99 mm | 636.6 mm |
| Reach | 372.84 mm | 386.16 mm | 384.77 mm |
| Top Tube Length | 540 mm | 560 mm | 580 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 470 mm | 520 mm | 570 mm |
| Head Tube Angle | 71 ° | 72 ° | 73 ° |
| Head Tube Length | 160 mm | 160 mm | 210 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1053 mm | 1058 mm | 1062 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
