Surface Voyager G1
Chromag
Enduro

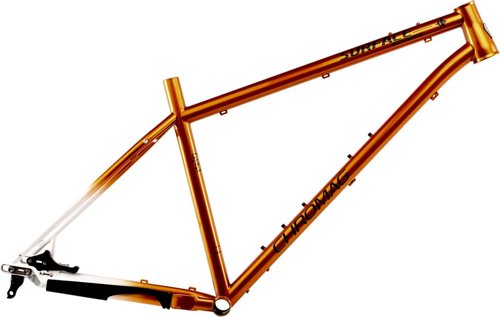

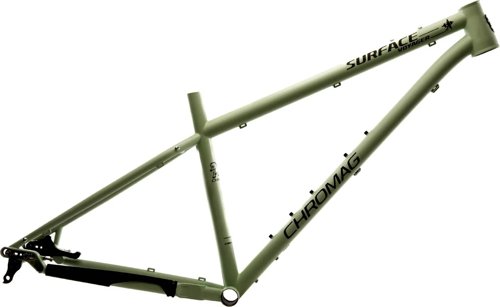

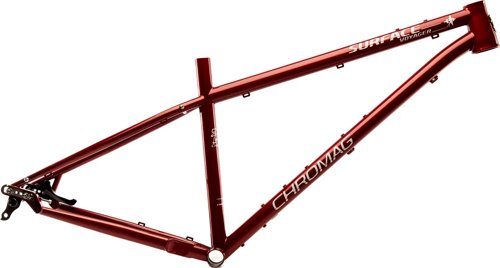

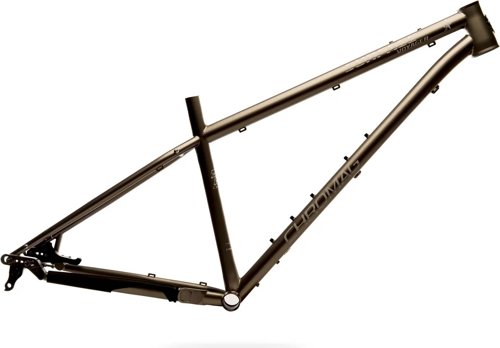

Surface Voyager G1 is a steel enduro mountain bike (2024), by Chromag, part of the Surface Voyager family. It is best suited to a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, while being aimed at more technical trails and rougher terrain. Based on the metrics, key strengths are strong climbing friendliness for sustained uphill riding, capable suspension support for rougher terrain, and good fit flexibility for dialing in rider position. Relative to category specialists, the trade-off is a firmer ride feel than comfort-first options. This summary is a starting point—compare this bike on MatchBikes.com with similar bikes.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.399 mm | 1.367 mm | 1.318 mm | 1.294 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 730 mm | 755 mm | 776 mm | 805 mm | 825 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
| Stack | 624 mm | 624 mm | 633 mm | 642 mm | 651 mm |
| Reach | 421 mm | 446 mm | 463 mm | 487 mm | 503 mm |
| Top Tube Length | 577 mm | 602 mm | 621 mm | 647 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 368 mm | 406 mm | 431 mm | 456 mm | 494 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1150 mm | 1175 mm | 1196 mm | 1225 mm | 1245 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 677 mm | 714 mm | 738 mm | 762 mm | 799 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 163 cm | 172 cm | 181 cm | 190 cm |
| Rider Max Height | 165 cm | 174 cm | 183 cm | 192 cm | 200 cm |
