Delano Peak Team XX Transmission
Fezzari
Trail

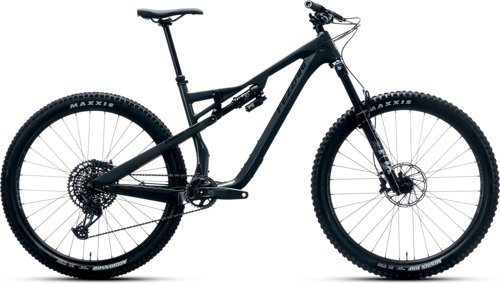

Delano Peak Team XX Transmission is a carbon trail mountain bike (2023), by Fezzari, from the Delano Peak lineup. This bike is aimed at riders who want a more active, performance-leaning off-road feel, leaning toward a sporty, active riding position, and is well suited to natural trails and mixed off-road terrain. Its profile is strongest in areas like a comfort-leaning ride feel over longer rides, strong climbing friendliness for sustained uphill riding, and capable suspension support for rougher terrain. At the same time, what it gives up slightly is a value score that depends more on priorities than pure price efficiency. This summary is a starting point—compare this bike on MatchBikes.com with similar bikes.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.419 mm | 1.341 mm | 1.308 mm | 1.284 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 744 mm | 777 mm | 801 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 133 mm | 124 mm | 134 mm | 134 mm |
| Stack | 610 mm | 610 mm | 628 mm | 642 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 560 mm | 593 mm | 613 mm | 637 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 445 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 95 mm | 115 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1176 mm | 1209 mm | 1234 mm | 1260 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 734 mm | 741 mm | 751 mm | 763 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
