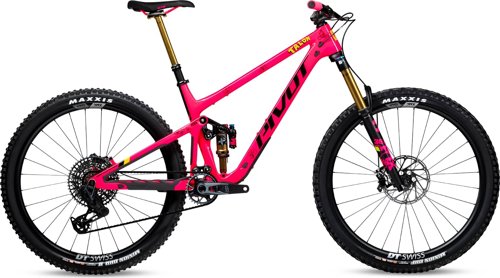

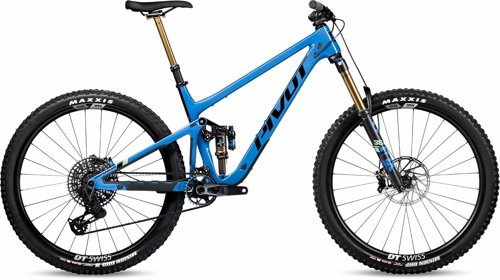

SWITCHBLADE Pro X0 Eagle Transmission w/ Carbon Wheels
Pivot
Trail
SWITCHBLADE Pro X0 Eagle Transmission w/ Carbon Wheels is a carbon trail mountain bike (2024), by Pivot, part of the Switchblade family. It is best suited to riders looking for a balanced off-road setup, with a balanced riding position, with a surface profile that is well suited to natural trails and mixed off-road terrain. Standout strengths from the metrics include a comfort-leaning ride feel over longer rides, capable suspension support for rougher terrain, and all-round climbing capability rather than a narrow specialty. At the same time, relative to category specialists, the trade-off is a value score that depends more on priorities than pure price efficiency. Compare this bike across categories on MatchBikes.com to see whether a nearby segment gives you a better fit.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.472 mm | 1.402 mm | 1.351 mm | 1.318 mm | 1.289 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 728 mm | 764 mm | 794 mm | 810 mm | 836 mm |
| Rake | 43 mm | 43 mm | 43 mm | 42 mm | 43 mm |
| Trail | 122 mm | 122 mm | 122 mm | 123 mm | 122 mm |
| Stack | 611 mm | 624 mm | 635 mm | 639 mm | 651 mm |
| Reach | 415 mm | 445 mm | 470 mm | 485 mm | 505 mm |
| Top Tube Length | 568 mm | 605 mm | 633 mm | 649 mm | 662 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° | 77 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° | 65.7 ° |
| Head Tube Length | 85 mm | 100 mm | 112 mm | 117 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 431 mm | 435 mm |
| Wheelbase | 1156 mm | 1192 mm | 1222 mm | 1240 mm | 1270 mm |
| Bottom Bracket Drop | 23 mm | 23 mm | 23 mm | 23 mm | 23 mm |
| Standover Height | 656 mm | 672 mm | 694 mm | 706 mm | 707 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
