Smuggler Carbon Deore
Transition
Trail

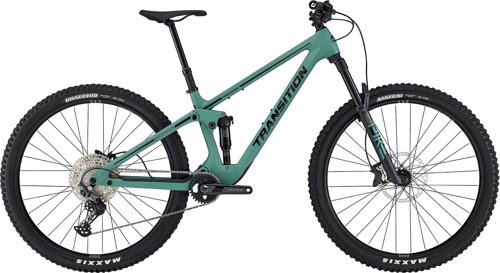

Smuggler Carbon Deore is a carbon trail mountain bike (2024), by Transition, from the Smuggler lineup. This setup will suit riders who want a more active, performance-leaning off-road feel, leaning toward a sporty, active riding position, and is well suited to natural trails and mixed off-road terrain. Its strongest points in the MatchBikes metrics are strong climbing friendliness for sustained uphill riding, a comfort-leaning ride feel over longer rides, and capable suspension support for rougher terrain. At the same time, the main limitation versus more focused builds is a value score that depends more on priorities than pure price efficiency. Compare this bike across categories on MatchBikes.com to see whether a nearby segment gives you a better fit.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.412 mm | 1.339 mm | 1.289 mm | 1.245 mm | 1.204 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 746 mm | 780 mm | 809 mm | 839 mm | 868 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 607 mm | 616 mm | 625 mm | 635 mm | 644 mm |
| Reach | 430 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Top Tube Length | 555 mm | 588 mm | 617 mm | 645 mm | 670 mm |
| Seat Tube Angle | 79.3 ° | 78.6 ° | 78.1 ° | 77.6 ° | 77.3 ° |
| Seat Tube Length | 375 mm | 390 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1181 mm | 1215 mm | 1250 mm | 1280 mm | 1309 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm | 190 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm | 207 cm |
