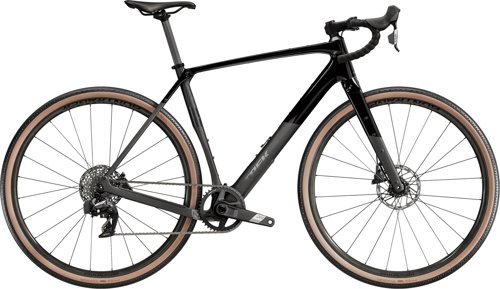

Checkpoint SL 5 AXS Gen 3
Trek
Gravel
Checkpoint SL 5 AXS Gen 3 es una bicicleta gravel (2025) de Trek, parte de la familia Checkpoint. En uso real, es un gran match para quienes priorizan comodidad, confianza y salidas largas. Postura: orientada a la comodidad. Terreno: lista para gravel y asfalto. A nivel de métricas, sobresale por buena capacidad de ajuste de la posición, muy buena en subidas largas y equilibrio entre comodidad y respuesta. El principal compromiso es menos enfoque en velocidad pura que montajes más rápidos y el value depende más de prioridades que del precio puro. Compara esta bici en MatchBikes.com con modelos gravel similares.
5.2
Valoración

+6
Image 1 of 12
Score Summary
Rendimiento
4.3
Valor
4.9
Ajuste
6.6
Rendimiento
Built for speed and efficiency
Velocidad
3.3
Muy baja
Eficiencia en subida
7.8
Escaladora
Aerodinámica
5.0
Aero mínima
Ajuste
Dialed-in Fit & Comfort
Posición de conducción
4.9
Confort
Flexibilidad de ajuste
8.2
Ajustable
Comodidad
6.2
Equilibrada
Valor
Relación calidad-precio
4.9
Poco valor
Rango de superficie
Lista para gravelEspecificaciones
General
Marca
Trek
Modelo
Checkpoint SL 5 AXS Gen 3
Año
2025
Precio
$4,199
Peso
9.5 kg
Categoría
Road
Subcategoría
Gravel
Grupo
Apex XPLR AXS, Apex AXS
Cuadro
Cuadro
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

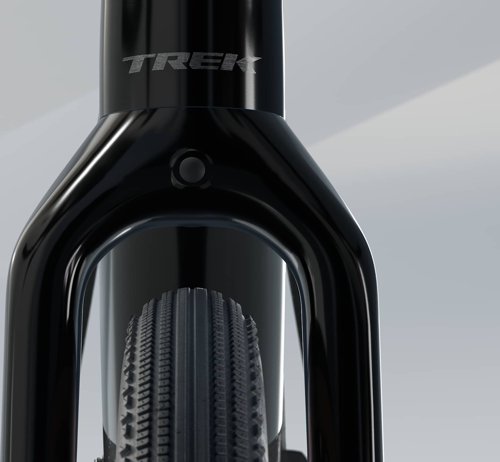

Horquilla de Suspensión
Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Tipo de suspensión
Rigid

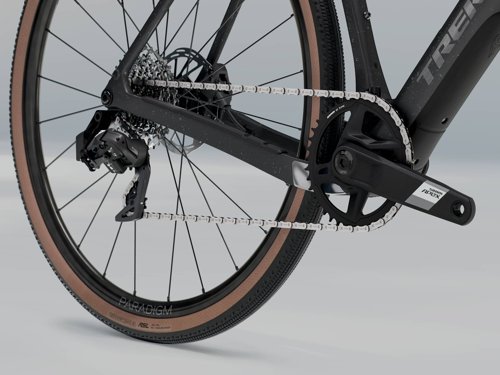

Transmisión
Palancas de Cambio
Size: XS, S, M, ML, L, XL, SRAM Apex, 12 speed; Size: XS, S, M, ML, L, XL, SRAM Apex AXS, 12 speed
Desviador Trasero
SRAM Apex XPLR eTap AXS, 44T max cog
Cassette
SRAM XPLR PG-1231, 11-44, 12 speed
Biela
Size: XS, S, SRAM Apex 1, 40T, DUB Wide, 165mm length; Size: M, SRAM Apex 1, 40T, DUB Wide, 170mm length; Size: ML, L, SRAM Apex 1, 40T, DUB Wide, 172.5mm length; Size: XL, SRAM Apex 1, 40T, DUB Wide, 175mm length
Eje de Pedalier
SRAM DUB, T47 threaded, internal bearing
Cadena
SRAM Apex, 12 speed
Ruedas
Buje Delantero
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Llantas
Front: Bontrager Paradigm SL TLR rim with CL-712 100x12mm Centerlock Disc hub, 24H, Black spokes and nipples, Rear: Bontrager Paradigm SL TLR rim with CL-712 142x12mm Centerlock Disc hub, 24H, Black spokes and nipples
Radios
14 g stainless steel, black
Neumáticos
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Frenos
Tipo de freno
Hydraulic Disc
Descripción del freno
SRAM Paceline, rounded, centerlock, 160mm

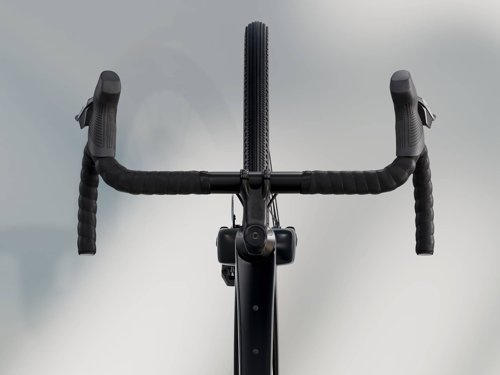

Cockpit
Potencia
Size: XS, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: M, ML, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
Manillar
Size: XS, Bontrager Elite Gravel, alloy, 40cm width; Size: S, M, Bontrager Elite Gravel, alloy, 42cm width; Size: ML, L, Bontrager Elite Gravel, alloy, 44cm width; Size: XL, Bontrager Elite Gravel, alloy, 46cm width
Asiento
Sillín
Size: XS, S, Verse Short Comp, steel rails, 155mm width; Size: M, ML, L, XL, Verse Short Comp, steel rails, 145mm width
Tija de Sillín
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Geometría
| Medida | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.408 mm | 1.44 mm | 1.481 mm | 1.514 mm | 1.542 mm | 1.569 mm |
| Bottom Bracket Height | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm | 273 mm |
| Front Center | 595 mm | 604 mm | 615 mm | 623 mm | 633 mm | 643 mm |
| Rake | 49 mm | 49 mm | 50 mm | 49 mm | 49 mm | 49 mm |
| Trail | 71 mm | 68 mm | 68 mm | 64 mm | 64 mm | 62 mm |
| Stack | 535 mm | 556 mm | 579 mm | 601 mm | 620 mm | 640 mm |
| Reach | 380 mm | 386 mm | 391 mm | 397 mm | 402 mm | 408 mm |
| Top Tube Length | 536 mm | 547 mm | 566 mm | 578 mm | 589 mm | 601 mm |
| Seat Tube Angle | 72.7 ° | 73 ° | 72.8 ° | 72.8 ° | 72.8 ° | 72.8 ° |
| Seat Tube Length | 445 mm | 480 mm | 505 mm | 530 mm | 550 mm | 575 mm |
| Head Tube Angle | 71 ° | 71.4 ° | 71.6 ° | 72 ° | 72.1 ° | 72.4 ° |
| Head Tube Length | 86 mm | 106 mm | 130 mm | 151 mm | 171 mm | 191 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1013 mm | 1022 mm | 1034 mm | 1042 mm | 1052 mm | 1062 mm |
| Bottom Bracket Drop | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 746 mm | 772 mm | 799 mm | 813 mm | 837 mm | 861 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm |
| Rider Max Height | 163 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
