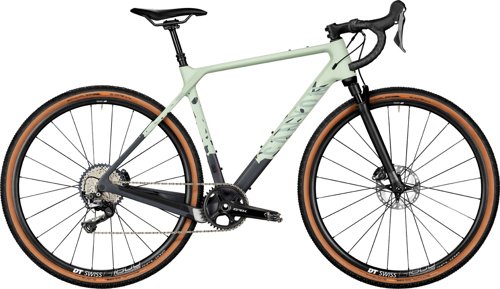

Grizl CF SL 8 Suspension 1by
Canyon
Gravel
Grizl CF SL 8 Suspension 1by ist ein Gravel-Rennrad (2024) by Canyon, aus der Grizl-Familie. Am besten geeignet für eine breite Palette von Fahrer:innen dank hoher Einstellbarkeit. Sitzposition: ausgewogen. Einsatzprofil: bereit für Gravel und Asphalt. Metrik-wise fällt es auf durch starkes Preis-Leistungs-Verhältnis im Vergleich, gute Einstellbarkeit für deine Sitzposition und ein ausgewogenes Fahrgefühl zwischen Komfort und Direktheit. Zu beachten ist weniger Fokus auf reine Endgeschwindigkeit als Speed-Spezialisten. Vergleiche dieses Bike auf MatchBikes.com mit ähnlichen gravel-Modellen.
6.3
Bewertung

Image 1 of 6
Score Summary
Leistung
4.0
Wert
9.6
Passform
7.3
Leistung
Built for speed and efficiency
Geschwindigkeit
1.9
Sehr niedrig
Klettereffizienz
6.3
Allrounder
Aerodynamik
4.2
Nicht-Aero
Passform
Dialed-in Fit & Comfort
Fahrposition
5.9
Ausgewogen
Passform-Flexibilität
8.9
Anpassbar
Fahrkomfort
6.7
Ausgewogen
Wert
Preis-Leistungs-Verhältnis
9.6
Herausragender Wert
Oberflächenbereich
Gravel-tauglichSpezifikationen
Allgemein
Marke
Canyon
Modell
Grizl CF SL 8 Suspension 1by
Jahr
2024
Preis
$2,999
Gewicht
10.22 kg
Kategorie
Road
Unterkategorie
Gravel
Schaltgruppe
GRX 800
Rahmen
Rahmen
Canyon Grizl CF SL, Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Versatile frame designed for maximum utility. Tyre clearance: 50 mm. Gravel Pro geometry for off-road stability & agility. Dropper post and suspension fork compatibility. 12 x 142 mm through axle. Weight: 1030 g (size M).
Federgabel

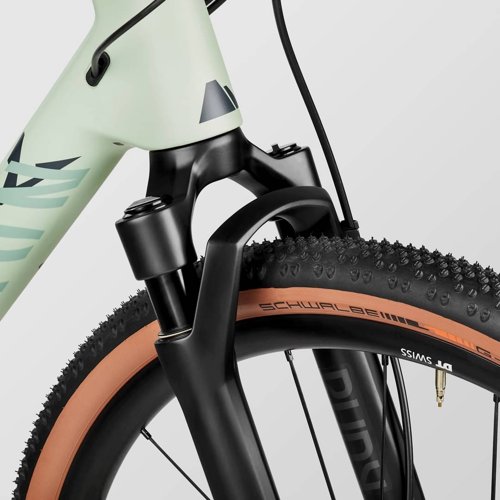

RockShox Rudy 30, Axle dimension: 12x100 mm, Stanchion Diameter: 30 mm, Travel: 30 mm, Fork steer tube diameter: 1 1/4", Tyre clearance: 50 mm, Weight: 5.07 lbs
Federungstyp
Hardtail

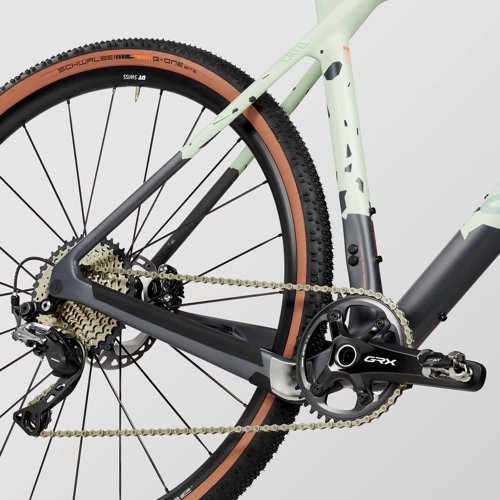

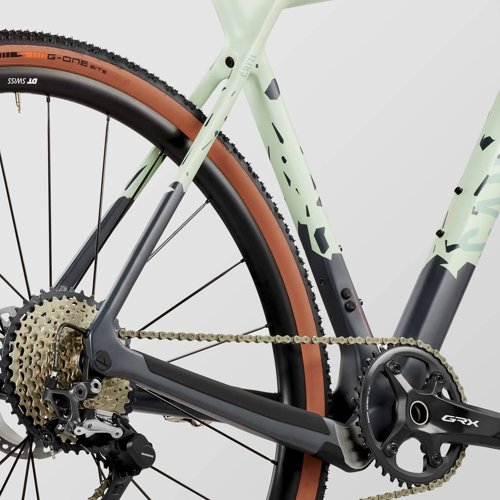

Antrieb
Schalthebel
Shimano GRX RX810, 11-speed, Weight: 1.19 lbs | Shimano GRX RX810 Remote, 1-speed, Weight: 1.19 lbs
Schaltwerk
Shimano GRX RX812 GS, Cage length: long, Weight: 0.55 lbs
Kassette
Shimano SLX M7000 11-42 11s, Number of sprockets: 11
Kurbel
Shimano RX810 40T, 11-speed, Number of chainrings: 1
Innenlager
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 0.19 lbs
Kette
Shimano CN-HG701 11s
Räder
Felgen
DT Swiss G1800 Spline db, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 1.94 lbs | DT Swiss G1800 Spline db SH11, Rotor mount: Center Lock, Rim height: 25 mm, Weight: 0.02 lbs
Reifen
Schwalbe G-One Bite 45mm, Width: 45 mm, Weight: 1.19 lbs
Bremsen
Bremsentyp
Hydraulic Disc
Bremsenbeschreibung
Shimano GRX RX810, 11-speed, Weight: 1.19 lbs | Shimano GRX RX810 Remote, 1-speed, Weight: 1.19 lbs
Bremshebel
Shimano GRX RX810, 11-speed, Weight: 1.19 lbs | Shimano GRX RX810 Remote, 1-speed, Weight: 1.19 lbs

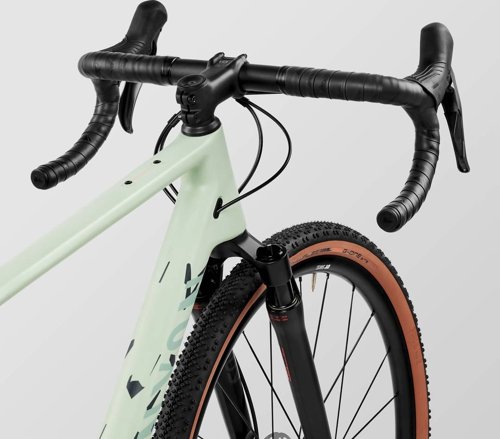

Cockpit
Vorbau
Canyon V13, High-quality aluminium stem with square cross-sectional profile. A new handlebar clamp design increases torsional stiffness by up to 40%. Handlebar clamp diameter: 31.8 mm. Head tube diameter: 1 1/4"., Fork steer tube diameter: 1 1/4", Clamping diameter: 31,8 mm
Lenker
Canyon HB0063, Robust aluminium handlebar with flared drops for enhanced off-road control., Clamping diameter: 31,8 mm, Width: 440 mm
Sitz
Sattel
Fizik Argo Terra X5, Gender: Unisex, Weight: 0.60 lbs
Sattelstütze
Iridium SP0058 Dropper Post, Clamp diameter: 27,2 mm, Material: Aluminium (AL)
Geometrie
| Messung | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.401 mm | 1.44 mm | 1.479 mm | 1.466 mm | 1.477 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 612 mm | 613 mm | 626 mm | 648 mm | 662 mm |
| Rake | 42 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 76 mm | 67 mm | 65 mm | 63 mm | 63 mm |
| Stack | 556 mm | 579 mm | 605 mm | 626 mm | 644 mm |
| Reach | 397 mm | 402 mm | 409 mm | 427 mm | 436 mm |
| Top Tube Length | 552 mm | 564 mm | 578 mm | 602 mm | 617 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Head Tube Angle | 71 ° | 72.25 ° | 72.5 ° | 72.75 ° | 72.75 ° |
| Head Tube Length | 118 mm | 138 mm | 164 mm | 185 mm | 204 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1036 mm | 1037 mm | 1050 mm | 1072 mm | 1086 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 789 mm | 816 mm | 845 mm | 870 mm | 892 mm |
| Front Travel | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 179 cm | 185 cm | 190 cm | 195 cm | cm |
