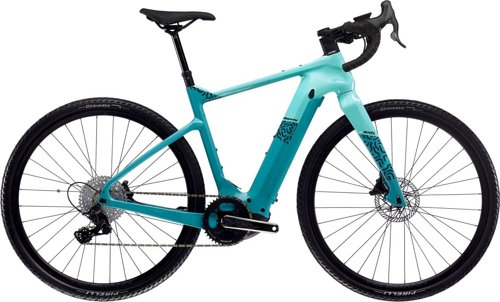

E-Arcadex Ekar
Bianchi
Gravel
E-Arcadex Ekar is an electric gravel road bike (2024), by Bianchi. It is a strong match for riders who prioritize comfort, confidence, and longer rides, with a setup that gives you a comfort-leaning riding position, and is ready for gravel routes as well as pavement. The main strengths in the metrics are good fit flexibility for dialing in rider position, strong value-for-money versus many similar bikes, and a balanced ride feel between comfort and directness. Compared with more specialized alternatives, the compromise is less emphasis on outright speed than speed-focused builds. Add this bike to compare on MatchBikes.com and see how it stacks up against similar gravel models.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Battery
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
E-Bike Components

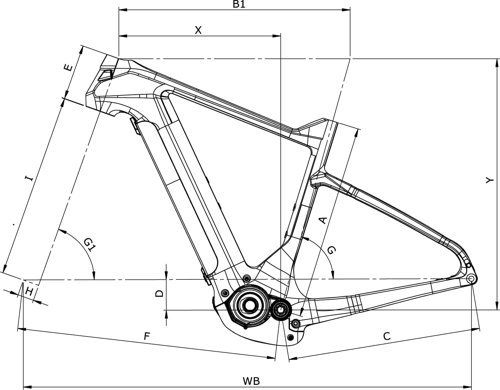

Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.549 mm | 1.582 mm | 1.597 mm | 1.594 mm | 1.589 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 596 mm | 603 mm | 609 mm | 625 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm | 67 mm |
| Stack | 564 mm | 579 mm | 594 mm | 609 mm | 623 mm |
| Reach | 364 mm | 366 mm | 372 mm | 382 mm | 392 mm |
| Top Tube Length | 520 mm | 532 mm | 548 mm | 563 mm | 583 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1020 mm | 1028 mm | 1034 mm | 1049 mm | 1064 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
