Cinder Cone
Kona
Crosscountry

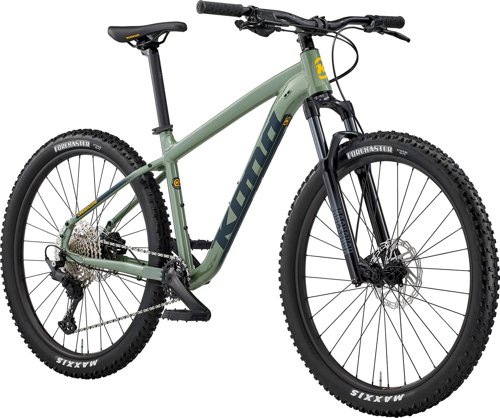

Cinder Cone is an alloy cross-country mountain bike (2023), by Kona, from the Cinder Cone lineup. It is best suited to riders who want a more active, performance-leaning off-road feel, with a sporty, active riding position, and is best for smoother trails and efficient rolling. The main strengths in the metrics are strong climbing friendliness for sustained uphill riding, strong value-for-money versus many similar bikes, and balanced, versatile speed for everyday riding. That said, the main limitation versus more focused builds is a firmer ride feel than comfort-first options. Compare this bike with other cross-country bikes on MatchBikes.com.
7.5
Rating

+4
Image 1 of 10
Score Summary
Performance
7.3
Value
9.3
Fit
6.5
Performance
Built for speed and efficiency
Speed
5.4
Low
Climbing Efficiency
9.8
Mountain Goat
Suspension
5.0
Confident trail control
Fit
Dialed-in Fit & Comfort
Riding Position
7.0
Sporty
Fit Flexibility
6.6
Moderately Adjustable
Ride Comfort
6.2
Race-Stiff
Value
Value for Money
9.3
Exceptional Value
Surface Range
Flow TrailsSpecifications
General
Brand
Kona
Model
Cinder Cone
Year
2023
Price
$1,199
Category
Mountain
Sub Category
Crosscountry
Groupset
Deore
Wheels
27.5"
Frame
Frame
Kona Race Light 6061 Aluminum Butted
Suspension Fork
RockShox Judy Silver TK Solo Air 100mm
Suspension Type
Hardtail
Drivetrain
Shift Levers
Shimano Deore
Rear Derailleur
Shimano Deore
Cassette
Shimano Deore 11-51t 11spd
Crank
Prowheel 11spd, 28t
Bottom Bracket
FSA BB7420 73mm
Chain
KMC X11
Wheels
Front Hub
Formula 100x9mm (centerlock)
Rear Hub
Shimano 135x10mm (centerlock)
Rims
WTB ST i27 TCS 2.0
Spokes
Stainless Black 14g
Tires
Front: Maxxis Forekaster 27.5x2.35", Rear: Maxxis Forekaster 27.5x2.35"
Brakes
Brake Type
Hydraulic Disc
Brake Description
Alhonga HT472 Hydraulic
Brake Levers
Alhongo HT472 Hydraulic
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip Slip on
Seat
Saddle
Kona XC
Seatpost
Kona Thumb 31.6mm
Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 678 mm | 709 mm | 737 mm | 778 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 589 mm | 603 mm | 612 mm | 626 mm |
| Reach | 419 mm | 444 mm | 469 mm | 504 mm |
| Top Tube Length | 576 mm | 604 mm | 632 mm | 671 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1113 mm | 1143 mm | 1172 mm | 1212 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm |
| Standover Height | 714 mm | 723 mm | 729 mm | 752 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
