Transonic 2.3
Fuji
Aero

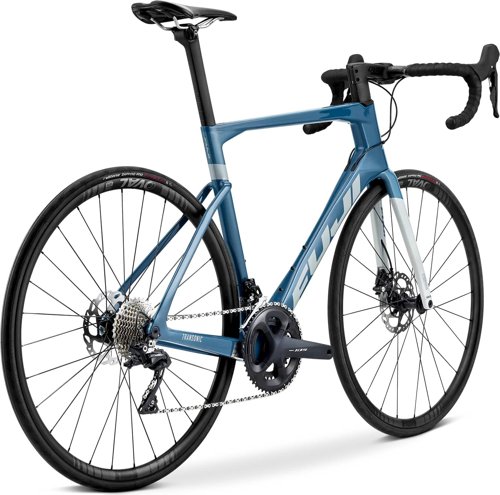

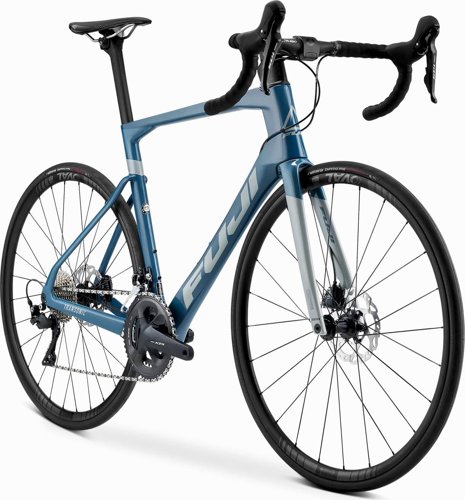

Transonic 2.3 is a carbon aero road bike (2024), by Fuji, from the Transonic lineup. This bike is aimed at performance-focused riders who want an aggressive position, leaning toward an aggressive, race-leaning riding position, and is best matched to paved roads. Its profile is strongest in areas like a clearly aero-focused setup for faster road riding, good fit flexibility for dialing in rider position, and balanced, versatile speed for everyday riding. At the same time, the main trade-off is a firmer ride feel than comfort-first options. Compare this bike on MatchBikes.com to similar aero models.
5.5
Rating

Image 1 of 3
Score Summary
Performance
4.8
Value
6.5
Fit
6.3
Performance
Built for speed and efficiency
Speed
6.4
Medium
Climbing Efficiency
2.3
Hefty but Manageable
Aerodynamics
9.1
Full Aero
Fit
Dialed-in Fit & Comfort
Riding Position
7.7
Race / Pro
Fit Flexibility
7.1
Adjustable
Ride Comfort
2.9
Firm
Value
Value for Money
6.5
Fair Value
Surface Range
Road OnlySpecifications
General
Brand
Fuji
Model
Transonic 2.3
Year
2024
Price
$3,499
Category
Road
Sub Category
Aero
Groupset
105
Frame
Frame
C10 high-modulus schedule process. High compaction molding. Aero optimized integration. PF30 BB, 142x12 thru-axle.
Suspension Fork
C10 high-modulus schedule process. High compaction molding. Aero optimized integration. 100x12mm thru-axle
Suspension Type
Rigid
Drivetrain
Shift Levers
Shimano 105 Dual Control, 2 x 11-speed
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Cassette
Shimano 105, 11-30T
Crank
Shimano 105 or FSA Gossamer Pro, 50/34T
Bottom Bracket
Praxis PF30 M24
Chain
KMC X11
Wheels
Rims
Oval Concepts 524 Disc, 24/28H
Tires
Vittoria Zaffiro Pro V, G2.0, 700 x 28c
Brakes
Brake Type
Hydraulic Disc
Brake Description
Shimano 105, hydraulic disc, 160mm rotor
Brake Levers
Shimano 105, hydraulic disc
Cockpit
Stem
Oval Concepts 313, 3D-forged 6061, +/-6°
Handlebar
Oval Concepts 310 Ergo, 6061 alloy, 31.8mm clamp, 133mm drop, 4° sweep
Seat
Saddle
Selle Italia X Base
Seatpost
Transonic Aero Carbon
Geometry
| Measurement | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.327 mm | 1.337 mm | 1.369 mm | 1.38 mm | 1.409 mm | 1.406 mm | 1.426 mm |
| Bottom Bracket Height | 263 mm | 266 mm | 266 mm | 268 mm | 268 mm | 270 mm | 270 mm |
| Front Center | 573 mm | 582 mm | 588 mm | 589 mm | 599 mm | 615 mm | 629 mm |
| Rake | 52 mm | 52 mm | 52 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 63 mm | 61 mm | 54 mm | 60 mm | 58 mm | 58 mm | 58 mm |
| Stack | 487 mm | 500 mm | 523 mm | 541 mm | 562 mm | 576.5 mm | 596 mm |
| Reach | 367 mm | 374 mm | 382 mm | 392 mm | 399 mm | 410 mm | 418 mm |
| Top Tube Length | 500 mm | 515 mm | 537 mm | 552 mm | 565 mm | 581 mm | 600 mm |
| Seat Tube Angle | 74.75 ° | 74.3 ° | 74.2 ° | 74.2 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 457 mm | 484 mm | 503 mm | 520 mm | 538 mm | 567 mm |
| Head Tube Angle | 70.6 ° | 71 ° | 72 ° | 72.7 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 93 mm | 109 mm | 129 mm | 145 mm | 166 mm | 183 mm | 203 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 971 mm | 982 mm | 988 mm | 989 mm | 999 mm | 1016 mm | 1030 mm |
| Bottom Bracket Drop | 73 mm | 70 mm | 70 mm | 68 mm | 68 mm | 66 mm | 66 mm |
| Standover Height | 730 mm | 747 mm | 772 mm | 788 mm | 806 mm | 824 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
