Madone SL 7 Gen 7
Trek
Aero
Madone SL 7 Gen 7 es una bicicleta aero (2024) by Trek, parte de la familia Madone. Esta bici está orientada a quienes quieren sensaciones deportivas sin un ajuste de carrera extremo. Postura: deportiva. Uso: ideal en asfalto. Lo mejor en métricas MatchBikes es un montaje claramente orientado al aero para ir más rápido en carretera, muy buena relación calidad/precio y gran potencial de velocidad en terreno rodador. Aun así, Lo que sacrifica un poco es una sensación más firme que opciones comfort-first. Compara esta bici en MatchBikes.com con modelos aero similares.
7.0
Valoración

+16
Image 1 of 22
Score Summary
Rendimiento
7.0
Valor
9.7
Ajuste
5.5
Rendimiento
Built for speed and efficiency
Velocidad
8.4
Muy alta
Eficiencia en subida
5.5
Polivalente
Aerodinámica
9.8
Aero total
Ajuste
Dialed-in Fit & Comfort
Posición de conducción
6.5
Deportiva
Flexibilidad de ajuste
6.8
Moderadamente ajustable
Comodidad
2.2
Rígida de carrera
Valor
Relación calidad-precio
9.7
Valor excepcional
Rango de superficie
Solo carreteraEspecificaciones
General
Marca
Trek
Modelo
Madone SL 7 Gen 7
Año
2024
Precio
$6,499
Peso
8 kg
Categoría
Road
Subcategoría
Aero
Grupo
Ultegra Di2
Ruedas
700c

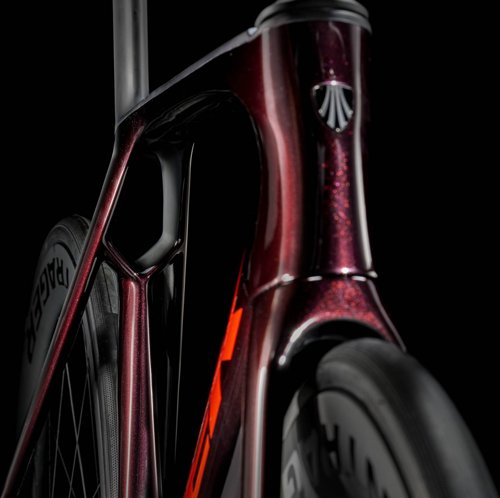

Cuadro
Cuadro
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
Horquilla de Suspensión
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Tipo de suspensión
Rigid

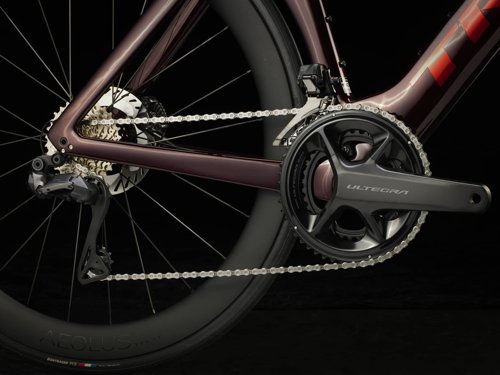

Transmisión
Palancas de Cambio
Shimano Ultegra R8170 Di2, 12 speed
Desviador Trasero
Shimano Ultegra R8150 Di2, 34T max cog
Desviador Delantero
Shimano Ultegra R8150 Di2, braze-on, down swing
Cassette
Shimano Ultegra R8101, 11-30, 12 speed
Biela
Size: 47, Shimano Ultegra R8100, 52/36, 165mm length; Size: 50, 52, Shimano Ultegra R8100, 52/36, 170mm length; Size: 54, 56, Shimano Ultegra R8100, 52/36, 172.5mm length; Size: 58, 60, 62, Shimano Ultegra R8100, 52/36, 175mm length
Eje de Pedalier
Praxis, T47 threaded, internal bearing
Cadena
Shimano Ultegra/XT M8100, 12 speed
Ruedas
Llantas
Front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle
Neumáticos
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm

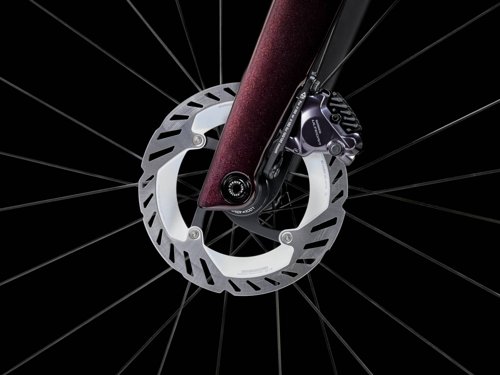

Frenos
Tipo de freno
Hydraulic Disc
Descripción del freno
Shimano Ultegra hydraulic disc, flat mount
Cockpit
Potencia
Size: 47, Trek RCS Pro, -7 degree, 70mm length; Size: 50, Trek RCS Pro, -7 degree, 80mm length; Size: 52, 54, Trek RCS Pro, -7 degree, 90mm length; Size: 56, 58, Trek RCS Pro, -7 degree, 100mm length; Size: 60, 62, Trek RCS Pro, -7 degree, 110mm length
Manillar
Size: 47, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 35cm control width, 38cm drops width; Size: 50, 52, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 37cm control width, 40cm drops width; Size: 54, 56, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 42cm width; Size: 58, 60, 62, Bontrager RSL Aero, OCLV Carbon, 31.8mm, Di2 routing, 80mm reach, 124mm drop, 41cm control width, 44cm drops width
Asiento
Sillín
Size: 47, 50, 52, Bontrager Aeolus Comp, steel rails, 155mm width; Size: 54, 56, 58, 60, 62, Bontrager Aeolus Comp, steel rails, 145mm width
Tija de Sillín
Size: 47, 50, 52, 54, Madone aero carbon seatpost, integrated light mount, 0mm offset, short length; Size: 56, 58, 60, 62, Madone aero carbon seatpost, integrated light mount, 0mm offset, long length
Componentes Eléctricos
Batería
Shimano BT-DN300
Cargador
Charging cable included
Geometría
| Medida | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.37 mm | 1.38 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.5 mm | 1.53 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 266 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 573 mm | 575 mm | 578 mm | 581 mm | 583 mm | 591 mm | 600 mm | 607 mm |
| Rake | 52 mm | 45 mm | 46 mm | 45 mm | 40 mm | 40 mm | 41 mm | 40 mm |
| Trail | 68 mm | 62 mm | 58 mm | 56 mm | 58 mm | 57 mm | 56 mm | 56 mm |
| Stack | 514 mm | 528 mm | 540 mm | 548 mm | 570 mm | 588 mm | 608 mm | 627 mm |
| Reach | 380 mm | 385 mm | 390 mm | 393 mm | 398 mm | 403 mm | 406 mm | 410 mm |
| Top Tube Length | 519 mm | 528 mm | 541 mm | 550 mm | 566 mm | 581 mm | 593 mm | 605 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.8 ° | 72.5 ° |
| Seat Tube Length | 424 mm | 453 mm | 483 mm | 496 mm | 525 mm | 553 mm | 573 mm | 593 mm |
| Head Tube Angle | 72.1 ° | 72.1 ° | 72.8 ° | 73 ° | 73.5 ° | 73.8 ° | 73.9 ° | 73.9 ° |
| Head Tube Length | 100 mm | 111 mm | 121 mm | 131 mm | 151 mm | 171 mm | 191 mm | 211 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 418 mm | 418 mm | 419 mm |
| Wheelbase | 979 mm | 981 mm | 984 mm | 988 mm | 990 mm | 999 mm | 1008 mm | 1017 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 699 mm | 718 mm | 739 mm | 751 mm | 775 mm | 800 mm | 818 mm | 836 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 157 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm | 189 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |
