E-Arcadex Ekar
Bianchi
Gravel
E-Arcadex Ekar is a carbon electric gravel road bike (2023), by Bianchi. It is best suited to riders who prioritize comfort, confidence, and longer rides, leaning toward a comfort-leaning riding position, and is ready for gravel routes as well as pavement. Based on the metrics, key strengths are good fit flexibility for dialing in rider position, a balanced ride feel between comfort and directness, and battery support that suits regular day-to-day rides. At the same time, relative to category specialists, the trade-off is less emphasis on outright speed than speed-focused builds. Compare this bike with other gravel bikes on MatchBikes.com.
4.9
Rating

Image 1 of 4
Score Summary
Performance
3.1
Value
6.0
Fit
6.5
Performance
Built for speed and efficiency
Speed
3.4
Very Low
Climbing Efficiency
4.4
All-Rounder
Aerodynamics
4.2
Non-Aero
Fit
Dialed-in Fit & Comfort
Riding Position
4.6
Comfort
Fit Flexibility
8.4
Adjustable
Ride Comfort
5.9
Balanced
Value
Value for Money
6.0
Fair Value
Surface Range
Gravel ReadyBattery
Battery
4.6
Regular rides
Specifications
General
Brand
Bianchi
Model
E-Arcadex Ekar
Year
2023
Price
$7,000
Category
E-bikeRoad
Sub Category
Gravel
Groupset
Ekar, FSA
Wheels
700c
Frame
Frame
e-Arcadex Carbon sizes: 47, 51, 55, 58, 61 - 12x142 mm thru axle - Flat mount 140 disc brake type - Fender compatible
Suspension Fork
Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm
Suspension Type
Rigid
Drivetrain
Shift Levers
Campagnolo EP EKAR 1x13 - Ant. adapter + screws - Post. adapter + screws - Fixing screws 29mm
Rear Derailleur
Campagnolo RD EKAR 1x13
Crank
FSA E-bike KFX Crankset - ISIS / 165mm - 170mm - 175mm / Hollow Alloy / SB black FSA Bosch Gen4 STD Alloy Spider
Bottom Bracket
Included in the Drive unit
Chain
Campagnolo EKAR 13v C-Link 117 links w/quick-link
Wheels
Front Hub
TA 12x100, center lock, J-bend
Rear Hub
TA 12x142, center lock, J-bend, N3W
Rims
Fulcrum E-Racing 900 - 622x22 - Rim height 24 mm - Disc Center Lock - 12x100 - 12x142
Tires
Pirelli Cinturato GRAVEL Adventure M, 40-622, black, 60tpi, TLR, Foldable
Brakes
Brake Type
Hydraulic Disc
Brake Description
included in the shifter
Brake Levers
included
Cockpit
Stem
Velomann, Alloy 6061, 1 1/4", raise 0°, Oversize, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL
Handlebar
Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120, Size: 400mm-XS/S, 420mm-M/L, 440mm-XL
Grips
La Spirale Ribbon cork + new plug carbon look with Bianchi logo color: Black
Seat
Saddle
Velomann, rail steel black, open, cover PU, lenght/wide 250x148mm color: black
Seatpost
Alpha3 Series, 40+80, 31,6 mm, Anodized black, Gravel remote, 1800 mm Barrel + screw
E-Bike Components
Motor
Bosch Performance Line CX motor unit
Battery
Bosch Powertube 500Wh integrated battery
Range
4.6

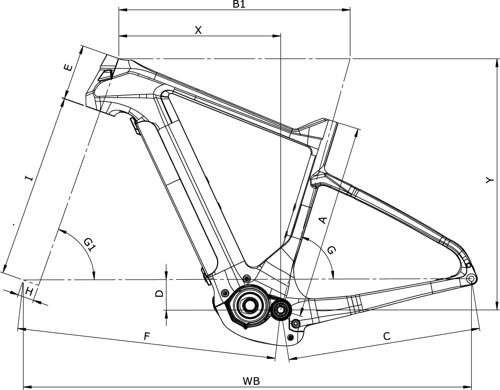

Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.57 mm | 1.59 mm | 1.59 mm | 1.58 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 596 mm | 603 mm | 609 mm | 625 mm | 640 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 71 mm | 67 mm | 67 mm | 67 mm |
| Stack | 570 mm | 585 mm | 600 mm | 615 mm | 629 mm |
| Reach | 370 mm | 372 mm | 378 mm | 388 mm | 398 mm |
| Top Tube Length | 526 mm | 538 mm | 554 mm | 569 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 125 mm | 140 mm | 155 mm | 170 mm | 185 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1026 mm | 1034 mm | 1040 mm | 1055 mm | 1070 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
