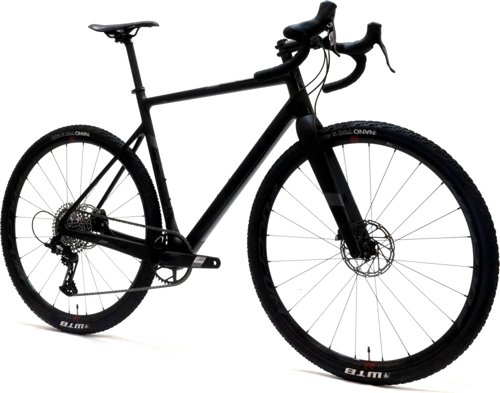

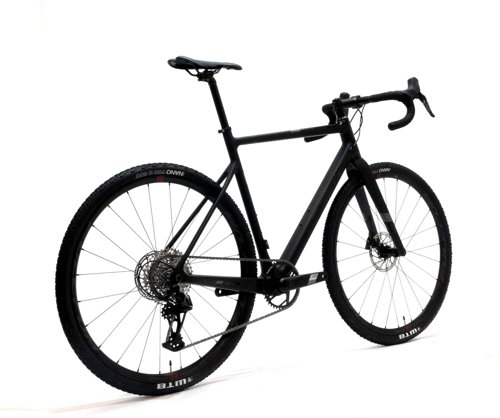

Planet X XLS Evo SRAM Apex XPLR Carbon
planetx
Cyclocross
Planet X XLS Evo SRAM Apex XPLR Carbon is a carbon cyclocross road bike (2024), by Planetx, from the Planet lineup. This model is best for a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, with a surface profile that is ready for gravel routes as well as pavement. Its strongest points in the MatchBikes metrics are good fit flexibility for dialing in rider position, all-round climbing capability rather than a narrow specialty, and balanced, versatile speed for everyday riding. Use MatchBikes.com to compare this bike with nearby cyclocross options.
5.8
Rating

+4
Image 1 of 10
Score Summary
Performance
5.1
Value
6.0
Fit
6.7
Performance
Built for speed and efficiency
Speed
6.4
Medium
Climbing Efficiency
6.5
All-Rounder
Aerodynamics
5.3
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
5.7
Balanced
Fit Flexibility
8.2
Adjustable
Ride Comfort
5.9
Balanced
Value
Value for Money
6.0
Fair Value
Surface Range
Gravel ReadySpecifications
General
Brand
planetx
Model
Planet X XLS Evo SRAM Apex XPLR Carbon
Year
2024
Price
$2,220
Category
Road
Sub Category
Cyclocross
Groupset
Apex XPLR
Frame
Frame
Carbon
Suspension Type
Rigid
Drivetrain

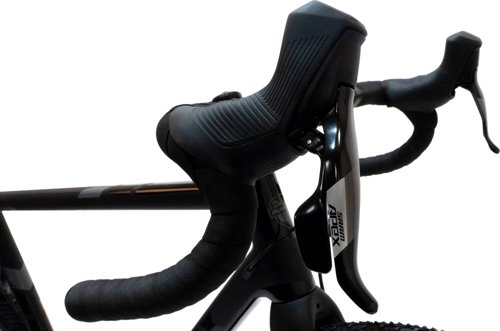

Shift Levers
SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset

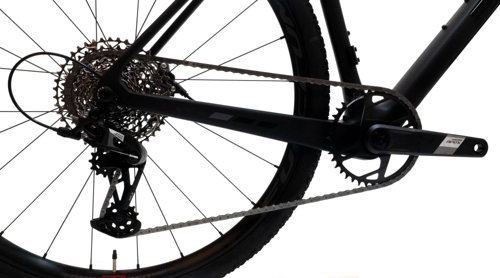

Rear Derailleur
SRAM Apex XPLR 1x12 Speed Rear Mech / Max 44 Tooth
Cassette
SRAM XPLR PG-1231 12 Speed Cassette / 11-44 Tooth
Crank
SRAM Apex 1 Wide Chainset / 172.5mm / 40 Tooth
Brakes
Brake Type
Hydraulic Disc
Brake Description
SRAM Apex Shift Brake System With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / Flat Mount 20mm Offset
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.416 mm | 1.467 mm | 1.492 mm | 1.526 mm | 1.544 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 590 mm | 591 mm | 591 mm | 601 mm | 616 mm |
| Rake | 45 mm | 44 mm | 45 mm | 45 mm | 46 mm |
| Trail | 71 mm | 68 mm | 64 mm | 64 mm | 63 mm |
| Stack | 534 mm | 553 mm | 564 mm | 583 mm | 602 mm |
| Reach | 377 mm | 377 mm | 378 mm | 382 mm | 390 mm |
| Top Tube Length | 520 mm | 534 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1007 mm | 1007 mm | 1008 mm | 1018 mm | 1033 mm |
| Bottom Bracket Drop | 64 mm | 64 mm | 64 mm | 64 mm | 64 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 169 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 172 cm | 178 cm | 188 cm | 193 cm |
