Planet X Pro Carbon Shimano 105 R7100
planetx
Race
Planet X Pro Carbon Shimano 105 R7100 is a carbon race road bike (2024), by Planetx, from the Planet lineup. Rider-wise, it fits riders who want a sporty road feel without a full race fit, leaning toward a sporty riding position, and is best matched to paved roads. Standout strengths from the metrics include strong value-for-money versus many similar bikes, good fit flexibility for dialing in rider position, and strong speed potential on smoother terrain. The main limitation versus more focused builds is a firmer ride feel than comfort-first options. Next step: compare this bike with other race models on MatchBikes.com.
6.5
Rating

+6

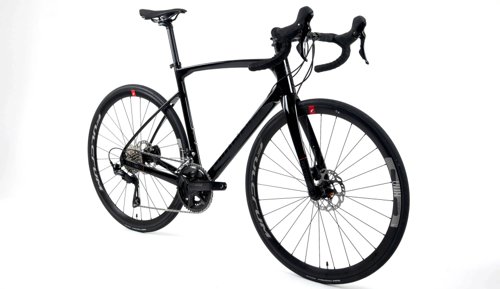

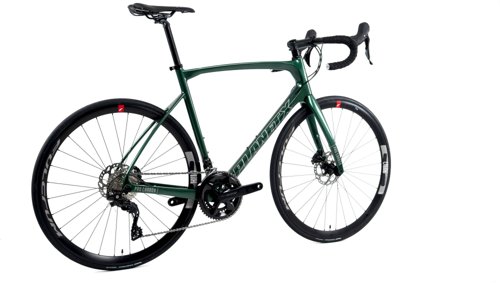

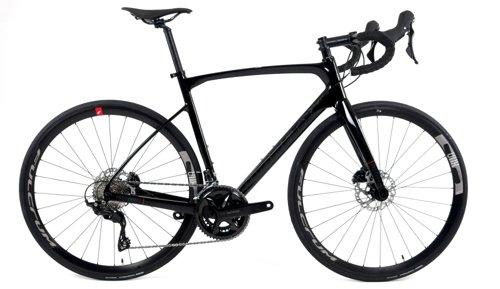

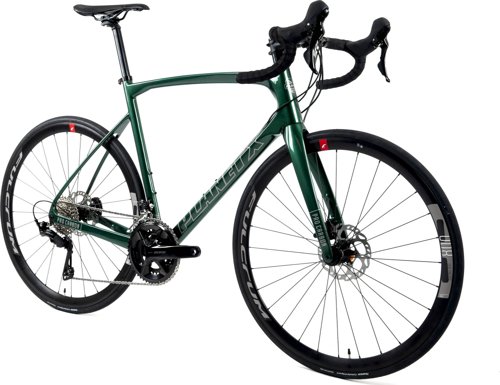

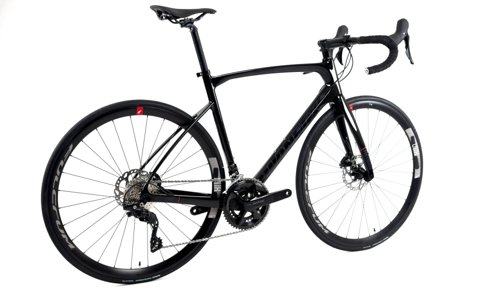

Image 1 of 12
Score Summary
Performance
5.9
Value
9.9
Fit
5.8
Performance
Built for speed and efficiency
Speed
7.6
High
Climbing Efficiency
3.3
Hefty but Manageable
Aerodynamics
7.2
Balanced Aero
Fit
Dialed-in Fit & Comfort
Riding Position
6.3
Sporty
Fit Flexibility
8.2
Adjustable
Ride Comfort
2.2
Race-Stiff
Value
Value for Money
9.9
Exceptional Value
Surface Range
Road OnlySpecifications
General
Brand
planetx
Model
Planet X Pro Carbon Shimano 105 R7100
Year
2024
Price
$2,218
Category
Road
Sub Category
Race
Groupset
105 Di2
Frame
Frame
Carbon
Suspension Type
Rigid
Drivetrain
Shift Levers
Shimano 105 ST-R7120 / BR-R7170 Left Hand Shifter
Rear Derailleur
Shimano 105 RD-R7100 GS 12-Speed Rear Mech
Front Derailleur
Shimano 105 FD-R7100 Braze On Front Mech
Cassette
Shimano CS-R7100-12 Speed 11-34 Cassette
Crank
Shimano 105 FC-R7100 Chainset / 172.5mm / 50/34T
Bottom Bracket
Token 878 GXP 68mm BSA Bottom Bracket / Black
Chain
Shimano CN-M6100 12 Speed Chain 114L
Wheels
Rims
Vision Team 30 Disc CL TL 700c Road Wheelset / Shimano HG
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brake Type
Hydraulic Disc
Brake Description
Hydraulic Disc
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Monza Start Wide Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.341 mm | 1.38 mm | 1.443 mm | 1.464 mm | 1.476 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 580 mm | 582 mm | 595 mm | 606 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 50 mm | 46 mm | 58 mm | 64 mm | 66 mm |
| Stack | 511 mm | 527 mm | 554 mm | 571 mm | 592 mm |
| Reach | 381 mm | 382 mm | 384 mm | 390 mm | 401 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 151 mm | 170 mm | 190 mm |
| Chainstay Length | 405 mm | 405 mm | 408 mm | 410 mm | 410 mm |
| Wheelbase | 980 mm | 986 mm | 980 mm | 987 mm | 994 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 172 cm | 177 cm | 188 cm | 195 cm |
