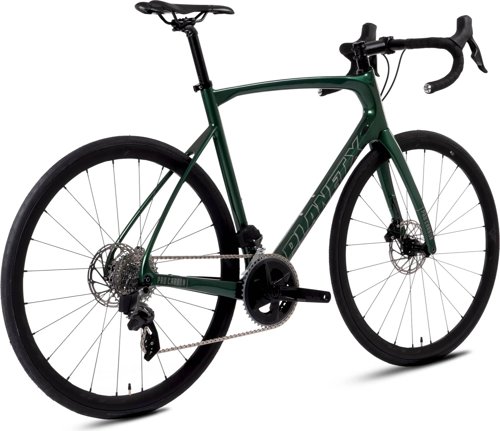

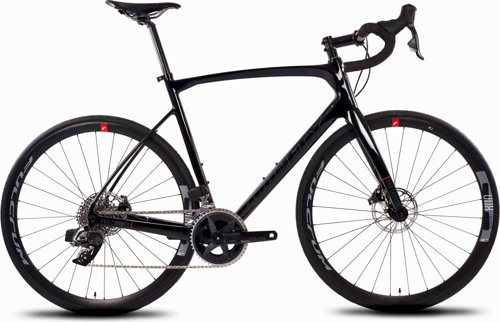

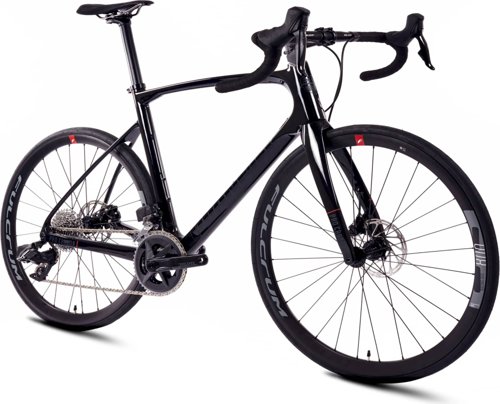

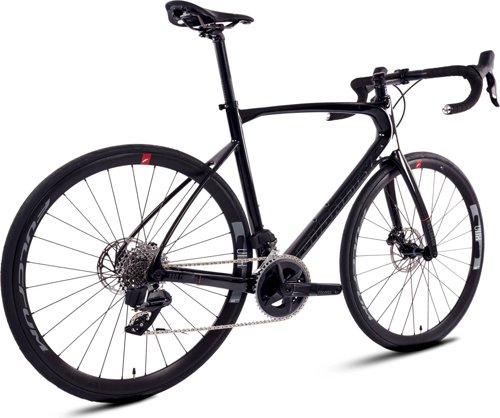

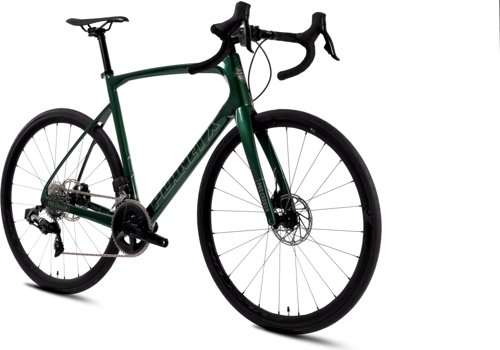

Planet X Pro Carbon SRAM Rival AXS
planetx
Race
Planet X Pro Carbon SRAM Rival AXS is a carbon race road bike (2024), by Planetx, part of the Planet family. This bike is aimed at riders who want a sporty road feel without a full race fit, leaning toward a sporty riding position, and is best matched to paved roads. Metric-wise, it stands out for strong value-for-money versus many similar bikes, good fit flexibility for dialing in rider position, and strong speed potential on smoother terrain. Relative to category specialists, the trade-off is a firmer ride feel than comfort-first options. Compare this bike across categories on MatchBikes.com to see whether a nearby segment gives you a better fit.
6.5
Rating

+12
Image 1 of 18
Score Summary
Performance
6.0
Value
9.7
Fit
5.8
Performance
Built for speed and efficiency
Speed
7.7
High
Climbing Efficiency
3.6
Hefty but Manageable
Aerodynamics
7.3
Balanced Aero
Fit
Dialed-in Fit & Comfort
Riding Position
6.3
Sporty
Fit Flexibility
8.2
Adjustable
Ride Comfort
2.2
Race-Stiff
Value
Value for Money
9.7
Exceptional Value
Surface Range
Road OnlySpecifications
General
Brand
planetx
Model
Planet X Pro Carbon SRAM Rival AXS
Year
2024
Price
$3,131
Category
Road
Sub Category
Race
Groupset
Rival AXS
Frame
Frame
Carbon
Suspension Type
Rigid
Drivetrain
Rear Derailleur
SRAM Rival AXS 12 Speed Rear Mech / Max 36T
Front Derailleur
SRAM Rival AXS Front Mech / Braze On
Cassette
SRAM Rival XG-1250 12 Speed Cassette / 10-36 Tooth
Crank
SRAM Rival AXS 12 Speed Chainset / 172.5mm / 48-35 Tooth
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide
Chain
SRAM Rival AXS 12 Speed Chain / 120 Link
Wheels
Rims
Fulcrum Racing 800 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 x 142mm / SRAM AXS 12 Speed
Tires
Hutchinson Challenger 700c Folding Tyre / 25mm / Black
Brakes
Brake Type
Hydraulic Disc
Brake Description
SRAM Rival AXS HRD Hydraulic Disc Brake Lever With Flat Mount Caliper / Left Lever / Rear Brake / 2000mm / FM 20mm Offset
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Shortfit Open-Fit Start-Up Superwide Saddle / Xsilite Rail
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.341 mm | 1.38 mm | 1.443 mm | 1.464 mm | 1.476 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 580 mm | 582 mm | 595 mm | 606 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 50 mm | 46 mm | 58 mm | 64 mm | 66 mm |
| Stack | 511 mm | 527 mm | 554 mm | 571 mm | 592 mm |
| Reach | 381 mm | 382 mm | 384 mm | 390 mm | 401 mm |
| Top Tube Length | 515 mm | 530 mm | 545 mm | 565 mm | 585 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 151 mm | 170 mm | 190 mm |
| Chainstay Length | 405 mm | 405 mm | 408 mm | 410 mm | 410 mm |
| Wheelbase | 980 mm | 986 mm | 980 mm | 987 mm | 994 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 165 cm | 170 cm | 175 cm | 185 cm |
| Rider Max Height | 167 cm | 172 cm | 177 cm | 188 cm | 195 cm |
