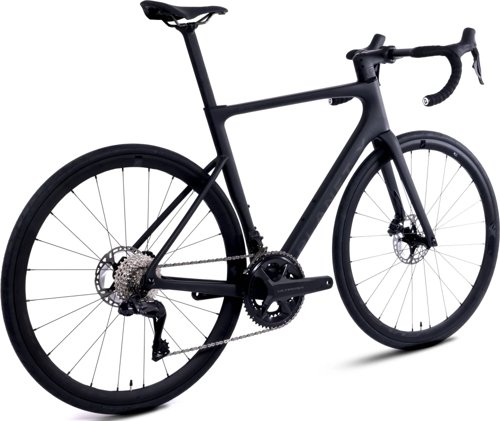

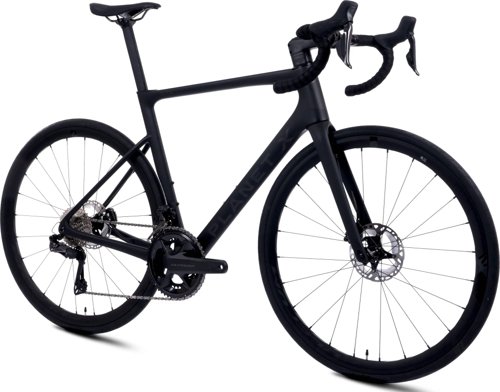

Planet X EC-130 Shimano Ultegra Di2
planetx
Aero
Planet X EC-130 Shimano Ultegra Di2 is a carbon aero road bike (2024), by Planetx, in the Planet series. Rider-wise, it fits riders who want a sporty road feel without a full race fit, with a sporty riding position, and is best matched to paved roads. Based on the metrics, key strengths are a clearly aero-focused setup for faster road riding, good fit flexibility for dialing in rider position, and strong value-for-money versus many similar bikes. The main trade-off is a firmer ride feel than comfort-first options. Add this bike to compare on MatchBikes.com and see how it stacks up against similar aero models.
6.2
Rating

Image 1 of 3
Score Summary
Performance
5.9
Value
7.4
Fit
5.9
Performance
Built for speed and efficiency
Speed
7.9
High
Climbing Efficiency
2.8
Hefty but Manageable
Aerodynamics
8.8
Full Aero
Fit
Dialed-in Fit & Comfort
Riding Position
7.0
Sporty
Fit Flexibility
7.5
Adjustable
Ride Comfort
2.1
Race-Stiff
Value
Value for Money
7.4
Great Value
Surface Range
Road OnlySpecifications
General
Brand
planetx
Model
Planet X EC-130 Shimano Ultegra Di2
Year
2024
Price
$5,087
Category
Road
Sub Category
Aero
Groupset
Ultegra, Ultegra Di2
Frame
Frame
Carbon
Suspension Type
Rigid
Drivetrain
Shift Levers
Shimano Ultegra Di2 ST-R8170 / BR-R8170 Left Hand Shifter Rear Brake
Rear Derailleur
Shimano Ultegra Di2 RD-R8150 GS 12-Speed Rear Mech
Front Derailleur
Shimano Ultegra Di2 FD-R8150 Braze On Front Mech
Cassette
Shimano CS-R8100 12-Speed 11-34 Cassette
Crank
Shimano Ultegra FC-R8100 Chainset / 172.5mm / 52/36T
Bottom Bracket
Shimano SM-BBR60 BSA Bottom Bracket
Chain
Shimano CN-M8100-12 Speed Chain 120L
Wheels
Rims
Vision Team 30 Disc CL TL 700c Road Wheelset / Shimano HG
Tires
Hutchinson Challenger 700c Folding Tyre / 25mm / Black
Brakes
Brake Type
Hydraulic Disc
Brake Description
Shimano Ultegra Di2 ST-R8170 / BR-R8170 Left Hand Shifter Rear Brake
Cockpit
Handlebar
Selcof Soft Touch Handlebar Tape / Black
Seat
Saddle
San Marco Shortfit Open-Fit Start-Up Superwide Saddle / Xsilite Rail
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.357 mm | 1.379 mm | 1.412 mm | 1.43 mm | 1.448 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 579 mm | 582 mm | 591 mm | 599 mm | 615 mm |
| Rake | 42 mm | 44 mm | 43 mm | 33 mm | 43 mm |
| Trail | 71 mm | 66 mm | 64 mm | 71 mm | 61 mm |
| Stack | 513 mm | 524 mm | 545 mm | 565 mm | 585 mm |
| Reach | 378 mm | 380 mm | 386 mm | 395 mm | 404 mm |
| Top Tube Length | 515 mm | 531 mm | 543 mm | 562 mm | 577 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 105 mm | 115 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 406 mm | 406 mm | 406 mm | 406 mm | 406 mm |
| Wheelbase | 974 mm | 977 mm | 984 mm | 985 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
