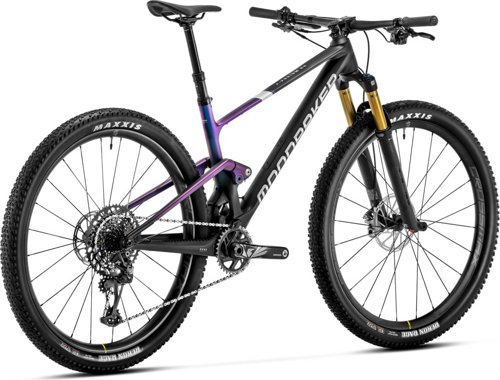

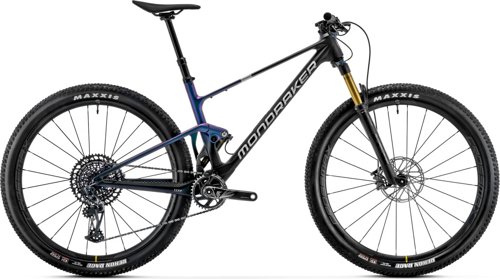

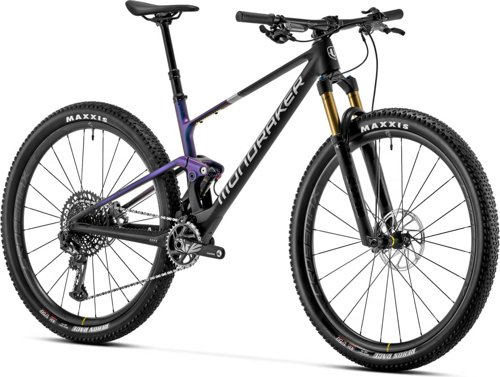

F-PODIUM RR
Mondraker
Crosscountry
F-PODIUM RR ist ein Cross-Country-MTB (2023) by Mondraker. Dieses Bike richtet sich an Fahrer:innen, die ein aktiveres, performance-orientiertes Offroad-Gefühl suchen. Sitzposition: sportlich-aktiv. Einsatzprofil: am besten für flowige Trails und effizientes Rollen. Aus den Metriken stechen hervor starkes Kletter-Feeling für längere Anstiege, komfortorientiertes Fahrgefühl auf längeren Strecken und starkes Tempopotenzial auf glattem Untergrund. Gleichzeitig Zu beachten ist Value hängt stärker von Prioritäten ab als von reiner Preis-Effizienz. Wenn das nah dran ist: Vergleiche es auf MatchBikes.com gegen Alternativen.
6.3
Bewertung

Image 1 of 5
Score Summary
Leistung
7.9
Wert
1.2
Passform
7.0
Leistung
Built for speed and efficiency
Geschwindigkeit
6.6
Mittel
Klettereffizienz
9.7
Bergziege
Federung
6.0
Souveräne Trail-Kontrolle
Passform
Dialed-in Fit & Comfort
Fahrposition
7.4
Sportlich
Passform-Flexibilität
6.2
Mäßig anpassbar
Fahrkomfort
7.5
Komfortabel
Wert
Preis-Leistungs-Verhältnis
1.2
Überteuert
Oberflächenbereich
Flow-TrailsSpezifikationen
Allgemein
Marke
Mondraker
Modell
F-PODIUM RR
Jahr
2023
Preis
$9,611
Gewicht
11.5 kg
Kategorie
Mountain
Unterkategorie
Crosscountry
Schaltgruppe
X01 Eagle, X1
Rahmen
Rahmen
F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1X drivetrain design, Boost 12x148mm rear axle, shock mudguard, postmount rear brake mount.
Federgabel
Fox 34 Step Cast Float FIT4 EVOL Factory Kashima, 120mm, tapered steerer tube,15x110mm Boost Kabolt axle, offset 44mm. Settings: remote 3pos Push to lock, compression micro-adjustment at low-speed, rebound, air preload
Dämpfer
Fox Float SL Factory Kashima SV EVOL, 165x45mm. Settings: 3 position remote compression (open/medium/lock), low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Federungstyp
Full
Antrieb
Schalthebel
SRAM GX Eagle, 12s
Schaltwerk
SRAM X01 Eagle, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1
Kurbel
SRAM X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, CNC-machined alloy
Innenlager
SRAM DUB BSA, sealed bearings, 73mm
Kette
SRAM GX Eagle, 12s, Powerlock
Räder
Vorderradnabe
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Hinterradnabe
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Felgen
Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Speichen
Mavic 24 straight-pull double butted spokes
Reifen
Front: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead, Rear: Maxxis Rekon Race 29x2.4, EXO protection, tubeless ready, 120TPI, folding bead
Bremsen
Bremsentyp
Hydraulic Disc
Bremsenbeschreibung
Front: SRAM Level Bronze 2P Stealth, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level Bronze 2P Stealth, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Bremshebel
SRAM Level Bronze, tools-free reach adjust, lever pivot bushings
Cockpit
Vorbau
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Lenker
Onoff Helium Carbon 0.2, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Griffe
Onoff Desert, 1lock-on, 135mm
Sitz
Sattel
Fizik Vento Argo X5
Sattelstütze
Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

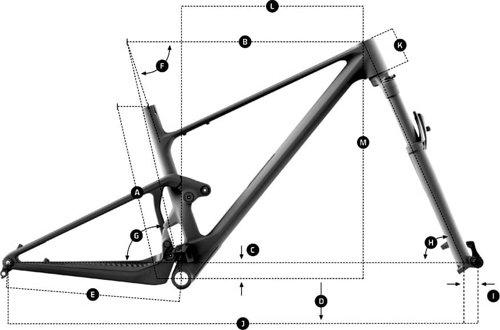

Geometrie
| Messung | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.383 mm | 1.307 mm | 1.267 mm | 1.232 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 720 mm | 745 mm | 776 mm | 807 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 594.6 mm | 594.6 mm | 608.3 mm | 622.1 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 576 mm | 601 mm | 629.4 mm | 657.8 mm |
| Seat Tube Angle | 76.2 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
