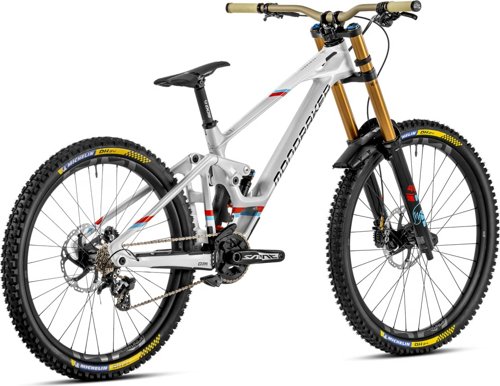

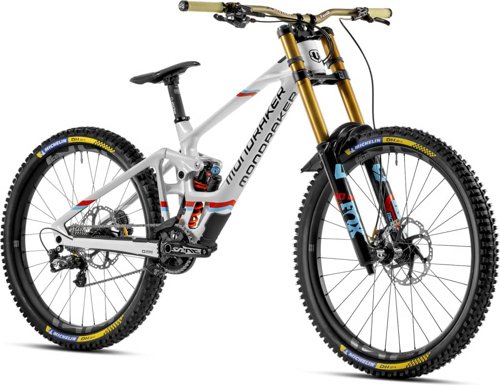

SUMMUM CARBON RR MX
Mondraker
Downhill
SUMMUM CARBON RR MX ist ein Downhill-MTB (2023) by Mondraker, aus der Summum-Familie. Vom Fahrgefühl her ist es ideal für Fahrer:innen, die ein ausgewogenes Offroad-Setup suchen. Sitzposition: ausgewogen. Einsatzprofil: mehr zu Hause im Bikepark (Gravity-Fokus). Stärken laut Metriken sind fähige Federung für ruppiges Terrain und komfortorientiertes Fahrgefühl auf längeren Strecken. Im Vergleich zu Spezialisten ist der Trade-off weniger Fokus auf reine Endgeschwindigkeit als Speed-Spezialisten. Nächster Schritt: Vergleiche dieses Bike auf MatchBikes.com.
7.1
Bewertung

Image 1 of 4
Score Summary
Leistung
6.8
Passform
7.8
Leistung
Built for speed and efficiency
Geschwindigkeit
2.8
Sehr niedrig
Klettereffizienz
2.9
Schwer, aber beherrschbar
Federung
10.0
Für extremes Gelände bereit
Passform
Dialed-in Fit & Comfort
Fahrposition
6.6
Ausgewogen
Passform-Flexibilität
6.4
Mäßig anpassbar
Fahrkomfort
8.8
Komfortabel
Wert
Oberflächenbereich
Bike ParkSpezifikationen
Allgemein
Marke
Mondraker
Modell
SUMMUM CARBON RR MX
Jahr
2023
Gewicht
16.7 kg
Kategorie
Mountain
Unterkategorie
Downhill
Schaltgruppe
Saint, e*thirteen
Räder
29"
Rahmen
Rahmen
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included.
Federgabel
Fox 40 29 Float FIT GRIP2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Dämpfer
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Federungstyp
Full
Antrieb
Schalthebel
Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
Schaltwerk
Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
Umwerfer
E.13 Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Kurbel
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm, Rings: 36T, aluminum, BCD 104
Innenlager
Shimano 83mm
Kette
Shimano HG95, 10s
Räder
Vorderradnabe
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Hinterradnabe
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts
Felgen
e*thirteen LG1 Race Carbon, IW30 29" Hookless, World Cup carbon fiber, 30mm internal width, tubeless ready, 32 spokes
Speichen
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Reifen
Front: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead, Rear: Michelin DH34 29x2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Bremsen
Bremsentyp
Hydraulic Disc
Bremsenbeschreibung
Front: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler, Rear: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Bremshebel
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Cockpit
Vorbau
ONOFF Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Lenker
Renthal Fatbar series 7 alloy, rise: 30mm, width: 800mm, 7º backsweep, 5º upsweep, 31.8mm barbore
Griffe
Renthal, double lock-on, kevlar compound, 130mm
Sitz
Sattel
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Sattelstütze
SDG Micro I-Beam SP-951 Carbon, diameter 31.6mm, length 300mm, micro-adjustment

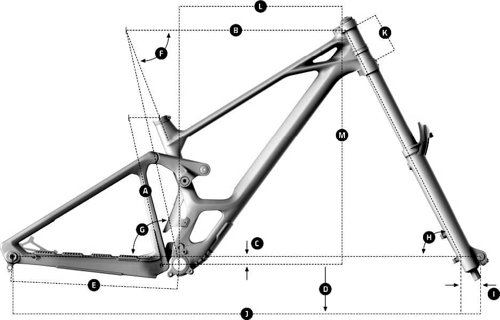

Geometrie
| Messung | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.422 mm | 1.347 mm | 1.279 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Rake | 56 mm | 56 mm | 56 mm | 56 mm |
| Stack | 633 mm | 633 mm | 633 mm | 633 mm |
| Reach | 427 mm | 445 mm | 470 mm | 495 mm |
| Top Tube Length | 577 mm | 596 mm | 622 mm | 647 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 62.5 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 110 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
