SUMMUM RR Mullet
Mondraker
Downhill
SUMMUM RR Mullet ist ein Downhill-MTB (2024) von Mondraker, aus der Summum-Familie. Vom Fahrgefühl her ist es ideal für Fahrer:innen, die ein ausgewogenes Offroad-Setup suchen. Sitzposition: ausgewogen. Einsatzprofil: mehr zu Hause im Bikepark (Gravity-Fokus). Metrik-wise fällt es auf durch fähige Federung für ruppiges Terrain und komfortorientiertes Fahrgefühl auf längeren Strecken. Leicht nachteilig ist weniger Fokus auf reine Endgeschwindigkeit als Speed-Spezialisten und Value hängt stärker von Prioritäten ab als von reiner Preis-Effizienz. Nächster Schritt: Vergleiche dieses Bike auf MatchBikes.com.
6.1
Bewertung

Image 1 of 4
Score Summary
Leistung
7.1
Wert
1.2
Passform
7.6
Leistung
Built for speed and efficiency
Geschwindigkeit
4.1
Sehr niedrig
Klettereffizienz
3.0
Schwer, aber beherrschbar
Federung
10.0
Für extremes Gelände bereit
Passform
Dialed-in Fit & Comfort
Fahrposition
6.7
Ausgewogen
Passform-Flexibilität
5.9
Mäßig anpassbar
Fahrkomfort
8.8
Komfortabel
Wert
Preis-Leistungs-Verhältnis
1.2
Überteuert
Oberflächenbereich
Bike ParkSpezifikationen
Allgemein
Marke
Mondraker
Modell
SUMMUM RR Mullet
Jahr
2024
Preis
$8,113
Gewicht
17.8 kg
Kategorie
Mountain
Unterkategorie
Downhill
Schaltgruppe
Saint
Rahmen
Rahmen
Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Zero suspension system, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05. *Optional Geometry kit
Federgabel
Fox 40 29 Float FIT GRIP X2 EVOL Factory Kashima, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Dämpfer
Fox DHX2 Factory Kashima, 225x70mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Federungstyp
Full
Antrieb
Schalthebel
Shimano Saint SL-M820 10s, low friction multi bearing, instant release, multi release, 2-way release
Schaltwerk
Shimano Saint RD-M820-SS, 10s, Shadow+, short cage
Umwerfer
e*Thirteen Vario Compact Upper Slider,Alloy backplate,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Kurbel
Shimano Saint M825 Hollowtech II, reinforced steel axle, 165mm, Rings: 36T, aluminum, BCD 104
Innenlager
Shimano 83mm
Kette
Shimano HG95, 10s
Räder
Vorderradnabe
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Hinterradnabe
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Felgen
e*thirteen Grappler Race DH, IW29 29" Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Speichen
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Reifen
Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead, Rear: Maxxis Dissector 27''5x2.4 WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Bremsen
Bremsentyp
Hydraulic Disc
Bremsenbeschreibung
Front: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler, Rear: Shimano Saint M820, 4-piston caliper, RT86 203mm 2-piece IS 6 bolts rotor with ICE technology, resin pads with cooler
Bremshebel
Shimano Saint, ergonomic antiskid lever with servo wave, free stroke and tool less reach adjust
Cockpit
Vorbau
Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer
Lenker
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Griffe
Ergon GDH Team black
Sitz
Sattel
Ergon SM10 DH Black
Sattelstütze
Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

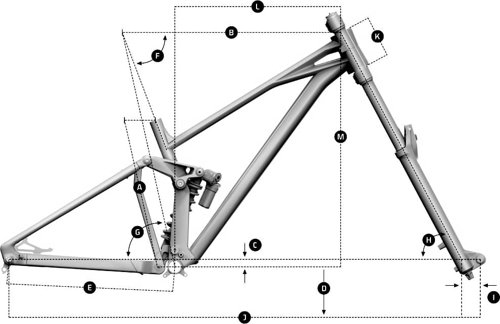

Geometrie
| Messung | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.404 mm | 1.331 mm | 1.264 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 806 mm | 820 mm | 851 mm | 876 mm |
| Rake | 58 mm | 58 mm | 58 mm | 58 mm |
| Trail | 123 mm | 130 mm | 123 mm | 119 mm |
| Stack | 632 mm | 632 mm | 632 mm | 632 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 576 mm | 596 mm | 621 mm | 646 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 112 mm | 112 mm | 112 mm | 112 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1256 mm | 1270 mm | 1301 mm | 1326 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 15 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
