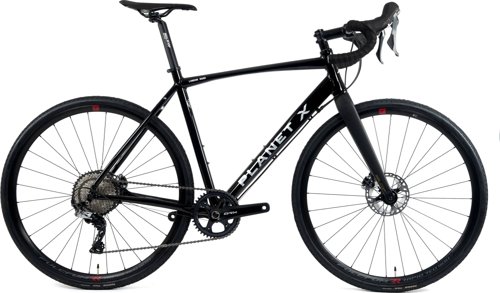

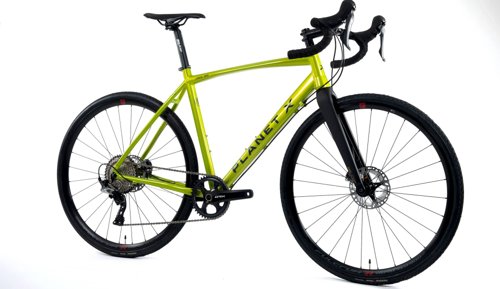

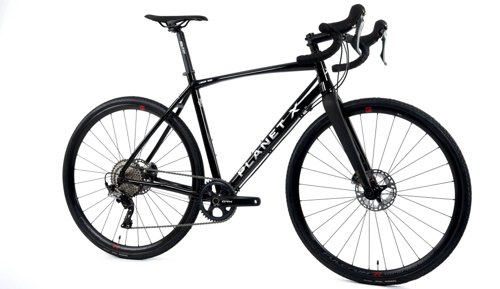

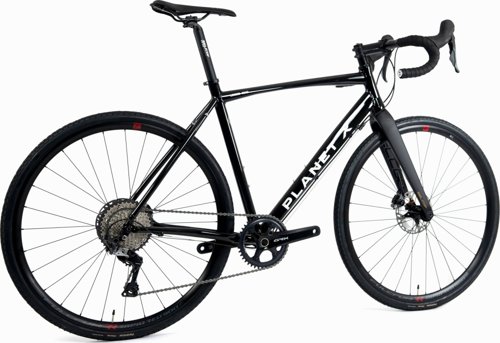

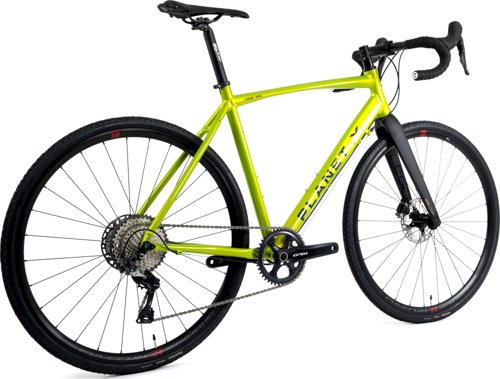

Planet X London Road Shimano GRX RX810
planetx
Gravel
Planet X London Road Shimano GRX RX810 is an alloy gravel road bike (2023), by Planetx, from the Planet lineup. This model is best for a wide range of riders thanks to its fit flexibility, with a setup that gives you a balanced riding position, with a surface profile that is a good fit for mixed paved-road conditions. Based on the metrics, key strengths are strong value-for-money versus many similar bikes, good fit flexibility for dialing in rider position, and less emphasis on aero shaping than on comfort or versatility. The trade-off to keep in mind is a firmer ride feel than comfort-first options and less emphasis on outright speed than speed-focused builds. This summary is a starting point—compare this bike on MatchBikes.com with similar bikes.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.45 mm | 1.45 mm | 1.45 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 598 mm | 610 mm | 631 mm | 645 mm |
| Rake | 55 mm | 55 mm | 55 mm | 49 mm |
| Trail | 68 mm | 62 mm | 62 mm | 68 mm |
| Stack | 524 mm | 547 mm | 566 mm | 587 mm |
| Reach | 363 mm | 377 mm | 391 mm | 405 mm |
| Top Tube Length | 515 mm | 535 mm | 555 mm | 585 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1018 mm | 1030 mm | 1051 mm | 1066 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 163 cm | 168 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 178 cm | 188 cm | 193 cm |
