Planet X Tempest Shimano GRX RX820 Titanium
planetx
Gravel

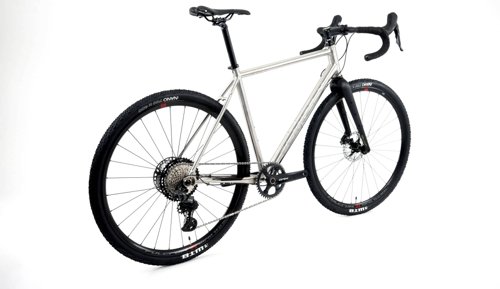

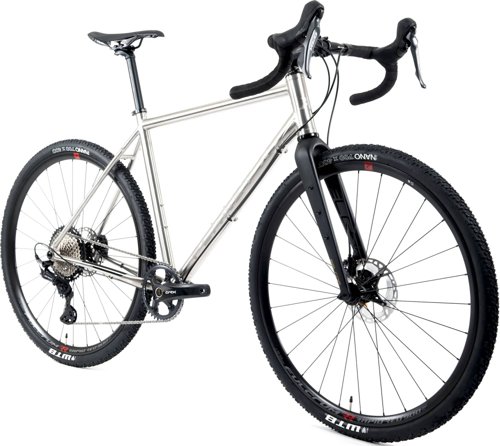

Planet X Tempest Shimano GRX RX820 Titanium is a titanium gravel road bike (2024), by Planetx, from the Planet lineup. It is best suited to a wide range of riders thanks to its fit flexibility, with a balanced riding position, and is ready for gravel routes as well as pavement. The main strengths in the metrics are strong value-for-money versus many similar bikes, good fit flexibility for dialing in rider position, and a balanced ride feel between comfort and directness. At the same time, compared with more specialized alternatives, the compromise is less emphasis on outright speed than speed-focused builds. Compare this bike on MatchBikes.com to similar gravel models.
5.6
Rating

Image 1 of 3
Score Summary
Performance
3.1
Value
9.7
Fit
6.7
Performance
Built for speed and efficiency
Speed
3.4
Very Low
Climbing Efficiency
4.2
All-Rounder
Aerodynamics
4.7
Minimal Aero
Fit
Dialed-in Fit & Comfort
Riding Position
6.6
Balanced
Fit Flexibility
7.7
Adjustable
Ride Comfort
5.9
Balanced
Value
Value for Money
9.7
Exceptional Value
Surface Range
Gravel ReadySpecifications
General
Brand
planetx
Model
Planet X Tempest Shimano GRX RX820 Titanium
Year
2024
Price
$2,870
Category
Road
Sub Category
Gravel
Groupset
GRX 800
Frame
Frame
Planet X Tempest Titanium Gravel Road Frame / Medium
Suspension Fork
Selcof Carbon Gravel Fork / Tapered-12mm Thru
Suspension Type
Rigid
Drivetrain
Rear Derailleur
Shimano GRX RD-RX822 12-Speed Rear Mech
Cassette
Shimano CS-M8100 12-Speed 10-45 Cassette
Crank
Shimano GRX FC-RX820-1 Chainset / 172.5mm / 40T
Bottom Bracket
Token 878 GXP 68mm BSA Bottom Bracket / Black
Chain
Shimano CN-M6100 12 Speed Chain 116L
Wheels
Rims
Fulcrum Rapid Red 900 700c Disc Centrelock Clincher Wheelset / Shimano Microspline
Tires
WTB Nano 700c Wired Tyre / 40mm / Black
Brakes
Brake Type
Hydraulic Disc
Brake Description
SRAM Flat Mount Disc Brake Mounting Hardware / 32mm / Single
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Sterrato V2 Flared Gravel Handlebar / 42cm
Seat
Saddle
San Marco Monza Start Wide Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.41 mm | 1.428 mm | 1.486 mm | 1.472 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 599 mm | 610 mm | 620 mm | 630 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 77 mm | 74 mm | 74 mm | 69 mm | 66 mm |
| Stack | 532 mm | 543 mm | 557 mm | 587 mm | 599 mm |
| Reach | 373 mm | 385 mm | 390 mm | 395 mm | 407 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 570 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 155 mm | 165 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1018 mm | 1029 mm | 1039 mm | 1050 mm | 1061 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
