Planet X Tempest SRAM Red AXS XPLR
planetx
Gravel

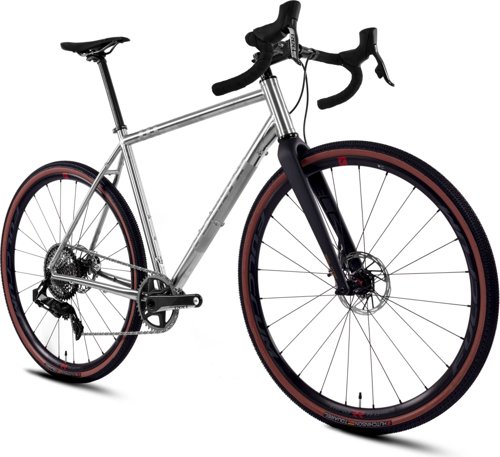

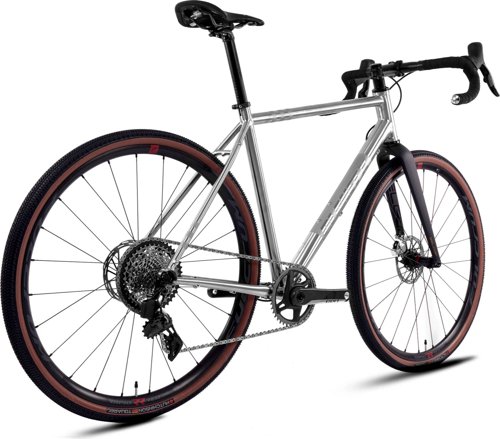

Planet X Tempest SRAM Red AXS XPLR is a titanium gravel road bike (2024), from Planetx, in the Planet series. It is best suited to a wide range of riders thanks to its fit flexibility, with a balanced riding position, while being ready for gravel routes as well as pavement. Metric-wise, it stands out for good fit flexibility for dialing in rider position, all-round climbing capability rather than a narrow specialty, and a balanced ride feel between comfort and directness. At the same time, the main trade-off is less emphasis on outright speed than speed-focused builds and a value score that depends more on priorities than pure price efficiency. Add this bike to compare on MatchBikes.com and see how it stacks up against similar gravel models.
Rating

Score Summary
Performance
Built for speed and efficiency
Fit
Dialed-in Fit & Comfort
Value
Specifications
General
Frame
Drivetrain
Wheels
Brakes
Cockpit
Seat
Geometry
| Measurement | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.41 mm | 1.428 mm | 1.486 mm | 1.472 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 588 mm | 599 mm | 610 mm | 620 mm | 630 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm | 45 mm |
| Trail | 77 mm | 74 mm | 74 mm | 69 mm | 66 mm |
| Stack | 532 mm | 543 mm | 557 mm | 587 mm | 599 mm |
| Reach | 373 mm | 385 mm | 390 mm | 395 mm | 407 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 570 mm | 590 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 155 mm | 165 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1018 mm | 1029 mm | 1039 mm | 1050 mm | 1061 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
