e-Vertic X-Type Deore
Bianchi
Trail

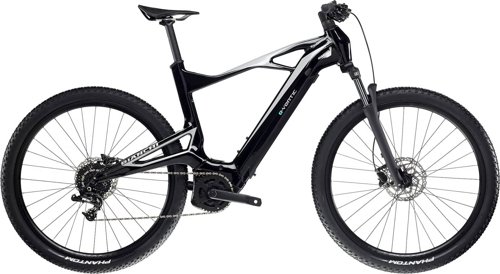

e-Vertic X-Type Deore is an alloy electric trail mountain bike (2023), from Bianchi. This setup will suit a wide range of riders thanks to its fit flexibility, with a balanced riding position, and is well suited to natural trails and mixed off-road terrain. Metric-wise, it stands out for strong value-for-money versus many similar bikes, a balanced ride feel between comfort and directness, and strong speed potential on smoother terrain. At the same time, relative to category specialists, the trade-off is battery range that is better for shorter daily use than long all-day outings. Compare this bike on MatchBikes.com to similar trail models.
7.0
Rating

Image 1 of 2
Score Summary
Performance
6.3
Value
8.5
Fit
7.2
Performance
Built for speed and efficiency
Speed
7.2
High
Climbing Efficiency
5.9
All-Rounder
Suspension
6.0
Confident trail control
Fit
Dialed-in Fit & Comfort
Riding Position
5.9
Balanced
Fit Flexibility
7.0
Adjustable
Ride Comfort
7.7
Balanced
Value
Value for Money
8.5
Great Value
Surface Range
Natural TrailsBattery
Battery
3.2
Commutes
Specifications
General
Brand
Bianchi
Model
e-Vertic X-Type Deore
Year
2023
Price
$3,994
Category
E-bikeMountain
Sub Category
Trail
Groupset
Deore, FSA
Wheels
29"
Frame
Frame
e-VERTIC X-Type ALU sizes: 43, 48, 53 - 9x135 mm quick release dropouts - Post mount 180 disc brake type - 120mm travel front - Internal cable routing in steerer - 625Wh compatible
Suspension Fork
Suntour XCR34-AIR-Boost LOR DS 15QLC32-110 29", 120mm travel, 1.5" tapered HT, Thru Axle 15QLC32-110, minimum 180mm rotor, maximum 203mm rotor, Damper Type LOR, 34mm stanchions, Air
Suspension Type
Full
Drivetrain
Shift Levers
Shimano, SL-M4100-R, DEORE, 10-SPEED
Rear Derailleur
Shimano, RD-M4120, DEORE, SGS 10/11-SPEED
Crank
FSA CK-320/IS/Gen4 FSA E-Bike Diecast Crankset ISIS / 165mm / Die cast aluminum, FSA Steel MegaTooth Chainring 34T
Bottom Bracket
included in the motor
Chain
KMC e10S NPBK
Wheels
Front Hub
Formula CL-811 for Center Lock, 32h, 15x110mm TA
Rear Hub
Formula CL-1422, CENTER LOCK, FOR SHIMANO MTB 8/ 9/ 10/ 11-SPEED - O.L.D. 135 mm - AXLE 145 mm
Rims
Velomann E-Sport Tubeless Ready 29", 622x25, 32 hole
Tires
Chaoyang Phantom dry 29x2.3, 60tpi
Brakes
Brake Type
Hydraulic Disc
Brake Description
Promax DSK-925
Cockpit
Stem
Velomann Viper0, 60mm, 31.8 mm, 1"1/8
Handlebar
Velomann, width 740mm, diam 31.8mm, rise 15mm, backsweep 9°
Grips
T-One Rock T-GP34 single lock grip, TPR, 130mm, plastic inner body, aluminium clamp
Seat
Saddle
Velomann Gnd Full-fit Start Up, carbon steel rail, 262x145
Seatpost
Velomann, diam.31,6mm, 0mm seatback, 300mm size 43 350mm size 48 400mm size 53
E-Bike Components
Motor
Bosch Performance Line CX, 250W, 85Nm, Purion display
Battery
Bosch Powertube 625Wh integrated battery
Range
3.2
Geometry
| Measurement | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.42 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm |
| Front Center | 723 mm | 745 mm | 766 mm |
| Rake | 46 mm | 46 mm | 45 mm |
| Trail | 109 mm | 109 mm | 110 mm |
| Stack | 621 mm | 630 mm | 644 mm |
| Reach | 422 mm | 440 mm | 455 mm |
| Top Tube Length | 595 mm | 616 mm | 634 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 471 mm | 471 mm | 471 mm |
| Wheelbase | 1191 mm | 1213 mm | 1233 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
