Moterra Neo EQ
Cannondale
Trail
Moterra Neo EQ is an alloy electric trail mountain bike (2024), by Cannondale, part of the Moterra Neo family. It is best suited to riders looking for a balanced off-road setup, leaning toward a balanced riding position, and is well suited to natural trails and mixed off-road terrain. Based on the metrics, key strengths are a comfort-leaning ride feel over longer rides, strong climbing friendliness for sustained uphill riding, and strong speed potential on smoother terrain. Relative to category specialists, the trade-off is a value score that depends more on priorities than pure price efficiency. Next step: compare this bike with other trail models on MatchBikes.com.
6.7
Rating

Image 1 of 2
Score Summary
Performance
7.0
Value
5.2
Fit
7.2
Performance
Built for speed and efficiency
Speed
6.7
Medium
Climbing Efficiency
7.4
Climber
Suspension
7.0
High-impact ready
Fit
Dialed-in Fit & Comfort
Riding Position
5.3
Balanced
Fit Flexibility
6.8
Moderately Adjustable
Ride Comfort
8.0
Comfortable
Value
Value for Money
5.2
Low Value
Surface Range
Natural TrailsBattery
Battery
4.3
Regular rides
Specifications
General
Brand
Cannondale
Model
Moterra Neo EQ
Year
2024
Price
$6,194
Category
E-bikeMountain
Sub Category
Trail
Groupset
XT, Deore
Frame
Frame
Moterra, SmartForm C1 Alloy, 130mm travel, Proportional Response Tuned Suspension, removable downtube battery, injected molded skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, tapered headtube, 18mm two-bolt kickstand mount, integrated rear rack
Suspension Fork
RockShox 35 Silver R, 150mm, Coil, 15x110mm thru-axle, tapered steerer, 44mm offset, rack and fender compatible
Rear Shock
RockShox Deluxe Select, DebonAir
Suspension Type
Full
Drivetrain
Shift Levers
Shimano Deore M6100, 12-speed
Rear Derailleur
Shimano XT
Cassette
Shimano Deore M6100, 10-51, 12-speed
Crank
FSA Bosch E-bike w/ custom Ai offset, 160mm, 34T
Bottom Bracket
Cannondale AI, 83mm, press-fit
Chain
Shimano Deore 6100, 12-speed
Wheels
Front Hub
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rear Hub
(F) Formula 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle
Rims
WTB ST i30 TCS, 32h, tubeless ready
Spokes
Stainless Steel, 14g
Tires
Continental eRuban, 29x2.3"
Brakes
Brake Type
Hydraulic Disc
Brake Description
Shimano MT420 4-piston hydraulic disc, 203/203mm RT66/64 rotors
Brake Levers
Shimano MT400 hydraulic disc
Cockpit
Stem
Cannondale 2, 6061 Alloy, 35mm, 0°
Handlebar
Cannondale 3 Riser, Alloy, 25mm rise, 8° sweep, 5° rise, 780mm
Grips
Fabric FunGuy
Seat
Saddle
Fabric Scoop Shallow Sport, steel rails
Seatpost
Cannondale DownLow Dropper, internal routing, 31.6, 150mm (Cannondale 3, 6061 Alloy, 31.6x350mm on size Small for clearance)
E-Bike Components
Motor
Bosch Performance Line CX
Battery
Bosch PowerTube, 750Wh
Charger
Bosch 4A
Range
4.3

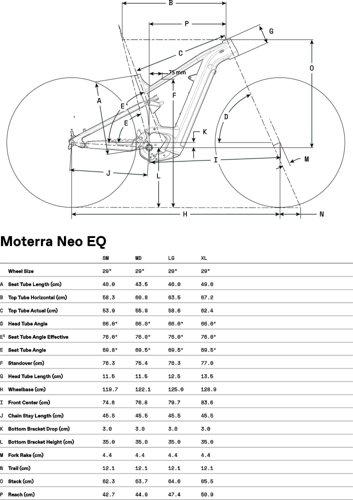

Geometry
| Measurement | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 185 cm | 195 cm |
