Planet X Pro Carbon Shimano Ultegra Di2
planetx
Race

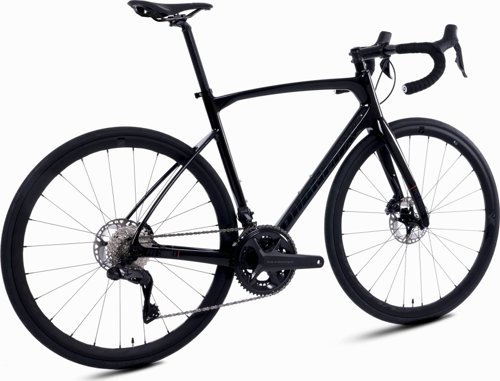

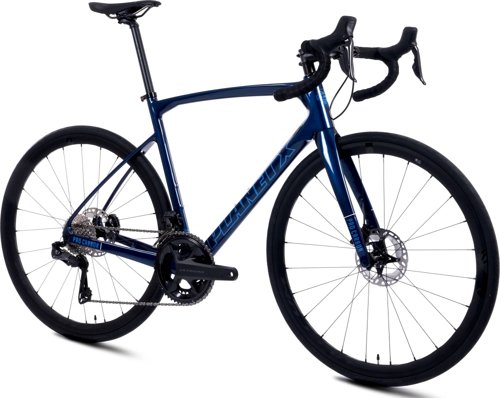

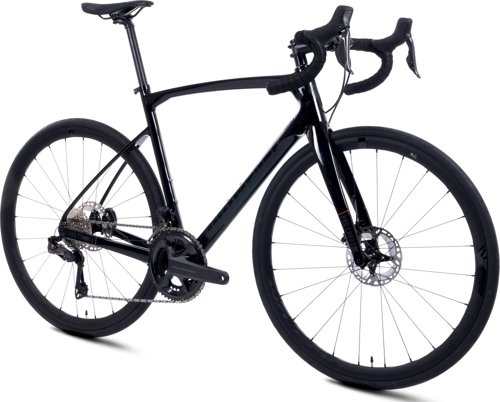

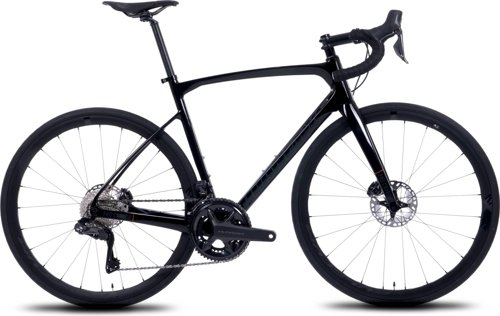

Planet X Pro Carbon Shimano Ultegra Di2 is a carbon race road bike (2023), by Planetx, in the Planet series. It is best suited to riders who want a sporty road feel without a full race fit, leaning toward a sporty riding position, while being best matched to paved roads. Based on the metrics, key strengths are good fit flexibility for dialing in rider position, strong speed potential on smoother terrain, and a balanced aero profile for mixed road priorities. At the same time, relative to category specialists, the trade-off is a firmer ride feel than comfort-first options. If this looks close to what you want, compare this bike on MatchBikes.com against similar models.
6.7
Rating

+3
Image 1 of 9
Score Summary
Performance
7.0
Value
6.6
Fit
5.9
Performance
Built for speed and efficiency
Speed
8.2
Very High
Climbing Efficiency
6.2
All-Rounder
Aerodynamics
7.3
Balanced Aero
Fit
Dialed-in Fit & Comfort
Riding Position
6.3
Sporty
Fit Flexibility
8.3
Adjustable
Ride Comfort
2.2
Race-Stiff
Value
Value for Money
6.6
Fair Value
Surface Range
Road OnlySpecifications
General
Brand
planetx
Model
Planet X Pro Carbon Shimano Ultegra Di2
Year
2023
Price
$4,493
Weight
8.8 kg
Category
Road
Sub Category
Race
Groupset
Ultegra Di2
Wheels
700c
Frame
Frame
Carbon
Suspension Type
Rigid
Drivetrain
Rear Derailleur
Shimano Ultegra Di2 RD-R8150 GS 12-Speed Rear Mech
Front Derailleur
Shimano Ultegra Di2 FD-R8150 Braze On Front Mech
Cassette
Shimano CS-R8100 12-Speed 11-34 Cassette
Crank
Shimano Ultegra FC-R8100 Chainset / 172.5mm / 52/36T
Bottom Bracket
Shimano SM-BBR60 BSA Bottom Bracket
Chain
Shimano CN-M8100-12 Speed Chain 120L
Wheels
Rims
Fulcrum Racing 400 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 X 142mm / Shimano 11 Speed
Tires
Hutchinson Challenger 700c Folding Tyre / 25mm / Black
Brakes
Brake Type
Hydraulic Disc
Brake Description
Hydraulic Disc
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Shortfit Open-Fit Start-Up Superwide Saddle / Xsilite Rail
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Geometry
| Measurement | 470mm XSM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.45 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 580 mm | 582 mm | 595 mm | 606 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 51 mm | 48 mm | 55 mm | 64 mm | 66 mm |
| Stack | 513 mm | 529 mm | 556 mm | 573 mm | 594 mm |
| Reach | 384 mm | 386 mm | 383 mm | 392 mm | 403 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 151 mm | 170 mm | 190 mm |
| Chainstay Length | 407 mm | 407 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 988 mm | 982 mm | 989 mm | 996 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
