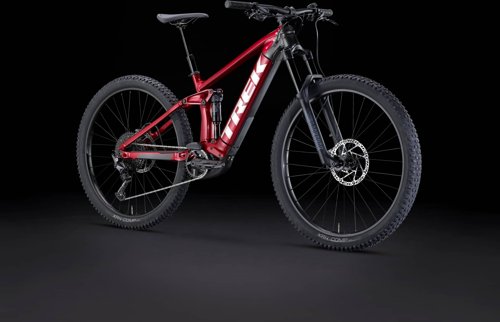

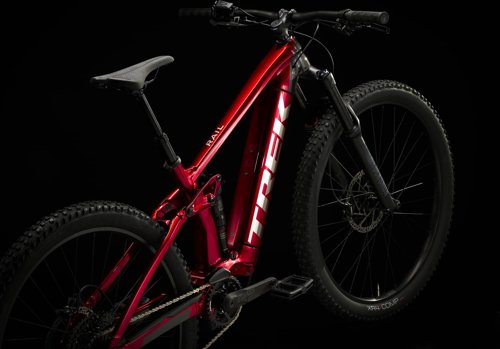

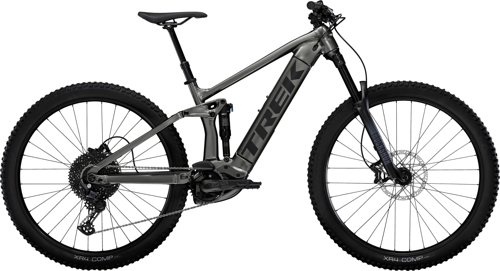

Rail 5 625W Gen 3
Trek
Enduro
Rail 5 625W Gen 3 est un VTT enduro électrique (2024) de Trek. Idéal pour des riders qui veulent un ressenti off-road plus actif et orienté performance. Position: sportive et active. Profil terrain: orienté sentiers techniques et terrain plus cassant. Ce qui ressort dans les métriques MatchBikes: un bon équilibre entre confort et réactivité, un très bon rapport qualité/prix et une suspension solide en terrain cassant. Face à des spécialistes, le compromis est moins axé vitesse pure que les montages orientés performance et autonomie plutôt pour le quotidien que pour des journées entières. Prochaine étape: comparez ce vélo sur MatchBikes.com.
7.3
Note

+18
Image 1 of 24
Score Summary
Performance
6.6
Valeur
8.3
Ajustement
7.7
Performance
Built for speed and efficiency
Vitesse
4.5
Très faible
Efficacité en montée
5.3
Polyvalent
Suspension
8.0
Prêt pour gros impacts
Ajustement
Dialed-in Fit & Comfort
Position de conduite
7.5
Sportive
Flexibilité de l'ajustement
6.8
Modérément ajustable
Confort de conduite
8.3
Équilibrée
Valeur
Rapport qualité-prix
8.3
Bon rapport qualité-prix
Variété de surfaces
Trails techniquesBatterie
Batterie
2.7
Petits trajets
Spécifications
Général
Marque
Trek
Modèle
Rail 5 625W Gen 3
Année
2024
Prix
$5,774
Poids
24.88 kg
Catégorie
E-bikeMountain
Sous-catégorie
Enduro
Groupe
Deore, e*thirteen
Roues
29"
Cadre
Cadre
Size: S, Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel; Size: M, L, XL, Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fourche Suspendue
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Amortisseur Arrière
RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Type de suspension
Full
Transmission
Manettes de Changement
Shimano Deore M6100, 12-speed
Dérailleur Arrière
Shimano Deore M6100, long cage
Cassette
SunRace CSMZ800 11-51, 12 speed
Pédalier
E*thirteen E*spec Plus, 165 mm length
Chaîne
Shimano Deore M6100, 12-speed
Roues
Moyeu Avant
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Moyeu Arrière
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Jantes
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Pneus
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Freins
Type de frein
Hydraulic Disc
Description des freins
Size: S, M, L, XL, Tektro HD-M745 hydraulic disc; Size: S, M, L, XL, Tektro HD-M745 4-piston hydraulic disc
Cockpit
Potence
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Cintre
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Poignées
Bontrager XR Trail Comp, nylon lock-on
Assise
Selle
Bontrager Arvada, steel rails, 138 mm width
Tige de Selle
Size: S, TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length; Size: M, L, XL, TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Composants Électriques
Moteur

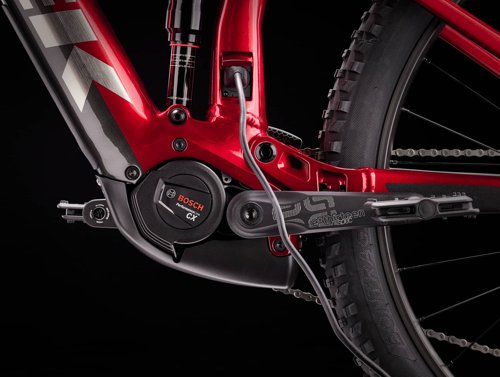

Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Batterie

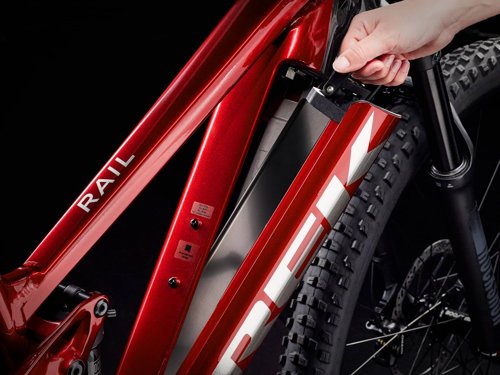

Bosch PowerTube 625Wh, smart system
Chargeur
Bosch standard 4A, 230V, smart system
Autonomie
2.7
Géométrie
| Mesure | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.5 mm | 1.39 mm | 1.41 mm | 1.34 mm | 1.36 mm | 1.28 mm | 1.3 mm |
| Bottom Bracket Height | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm | 344 mm | 339 mm |
| Front Center | 750 mm | 750 mm | 774 mm | 775 mm | 797 mm | 797 mm | 831 mm | 832 mm |
| Rake | 41 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 43 mm | 44 mm |
| Trail | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm |
| Stack | 616 mm | 619 mm | 615 mm | 619 mm | 620 mm | 623 mm | 629 mm | 632 mm |
| Reach | 418 mm | 413 mm | 443 mm | 438 mm | 463 mm | 458 mm | 492 mm | 488 mm |
| Top Tube Length | 580 mm | 581 mm | 604 mm | 606 mm | 626 mm | 627 mm | 658 mm | 659 mm |
| Seat Tube Angle | 75.4 ° | 75 ° | 75.4 ° | 75 ° | 75.4 ° | 75 ° | 75.4 ° | 75 ° |
| Seat Tube Length | 410 mm | 410 mm | 420 mm | 420 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° | 64.9 ° | 64.5 ° |
| Head Tube Length | 105 mm | 105 mm | 105 mm | 105 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm | 440 mm | 441 mm |
| Wheelbase | 1188 mm | 1189 mm | 1213 mm | 1214 mm | 1236 mm | 1236 mm | 1270 mm | 1271 mm |
| Bottom Bracket Drop | 29 mm | 35 mm | 29 mm | 35 mm | 29 mm | 35 mm | 29 mm | 35 mm |
| Standover Height | 741 mm | 736 mm | 771 mm | 766 mm | 760 mm | 755 mm | 773 mm | 768 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
