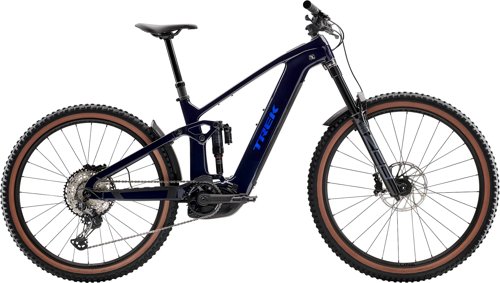

Rail+ 9.7 Gen 5
Trek
Enduro
Rail+ 9.7 Gen 5 è una e-MTB enduro (2025) di Trek. In pratica è un ottimo match per chi cerca un feeling off-road più attivo e orientato alla performance. Assetto: sportiva e attiva. Terreno: pensata per trail tecnici e terreno più sconnesso. I principali punti nelle metriche MatchBikes sono un equilibrio tra comfort e reattività, sospensioni capaci su terreno sconnesso e capacità in salita da all-rounder. Da tenere presente: meno focus sulla velocità pura rispetto ai setup più race. Prossimo passo: confronta questa bici su MatchBikes.com.
6.9
Valutazione

Image 1 of 2
Score Summary
Prestazioni
6.8
Valore
5.6
Vestibilità
7.9
Prestazioni
Built for speed and efficiency
Velocità
4.9
Molto bassa
Efficienza in Salita
6.1
Tuttofare
Sospensione
8.0
Pronta ai grandi impatti
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.9
Sportiva
Flessibilità Vestibilità
6.9
Moderatamente regolabile
Comfort di Guida
8.4
Bilanciata
Valore
Rapporto Qualità-Prezzo
5.6
Valore adeguato
Gamma Superfici
Trail tecniciSpecifiche
Generale
Marca
Trek
Modello
Rail+ 9.7 Gen 5
Anno
2025
Prezzo
$7,350
Peso
23.73 kg
Categoria
E-bikeMountain
Sottocategoria
Enduro
Gruppo
XT, SLX
Telaio
Telaio
OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle, 160 mm travel
Forcella Ammortizzata
RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 160 mm travel
Ammortizzatore Posteriore
RockShox Super Deluxe Select+ RT, 205mm x 65mm
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
Shimano SLX M7100, 12-speed
Deragliatore Posteriore
Shimano XT M8100, long cage
Cassetta
Shimano SLX M7100, 10-51T, 12-speed
Catena
Shimano SLX M7100, 12-speed
Ruote
Cerchi
Front: Size: S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"; Size: M, L, XL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29", Rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Pneumatici
Size: S, M, L, XL, Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"; Size: M, L, XL, Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
SRAM DB 8 4-piston hydraulic disc
Cockpit
Attacco Manubrio
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Manubrio
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Manopole
Bontrager XR Trail Comp, nylon lock-on
Seduta
Sella
Bontrager Verse P3, chromoly rails
Reggisella
Size: S, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length; Size: M, Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length; Size: L, XL, Bontrager Line Dropper, 200 mm travel, internal routing, 34.9 mm, 515 mm length
Componenti Elettrici
Motore
Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Geometria
| Misura | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.375 mm | 1.381 mm | 1.387 mm | 1.393 mm | 1.311 mm | 1.316 mm | 1.292 mm | 1.295 mm |
| Bottom Bracket Height | 344 mm | 338 mm | 345 mm | 338 mm | 345 mm | 338 mm | 345 mm | 338 mm |
| Front Center | 755 mm | 831 mm | 784 mm | 783 mm | 832 mm | 831 mm | 867 mm | 867 mm |
| Rake | 43 mm | mm | 39 mm | 41 mm | 38 mm | 40 mm | 37 mm | 41 mm |
| Trail | 119 mm | 122 mm | 127 mm | 131 mm | 127 mm | 131 mm | 127 mm | 131 mm |
| Stack | 598 mm | 594 mm | 631 mm | 627 mm | 649 mm | 645 mm | 672 mm | 667 mm |
| Reach | 435 mm | 430 mm | 455 mm | 450 mm | 495 mm | 490 mm | 520 mm | 515 mm |
| Top Tube Length | 562 mm | 563 mm | 591 mm | 592 mm | 639 mm | 639 mm | 670 mm | 670 mm |
| Seat Tube Angle | 77.9 ° | 77.4 ° | 77.7 ° | 77.2 ° | 77.5 ° | 77 ° | 77.4 ° | 76.9 ° |
| Seat Tube Length | 380 mm | 380 mm | 410 mm | 410 mm | 435 mm | 435 mm | 470 mm | 470 mm |
| Head Tube Angle | 65 ° | 64.5 ° | 65 ° | 64.5 ° | 65 ° | 64.5 ° | 64.9 ° | 64.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 120 mm | 120 mm | 145 mm | 145 mm |
| Chainstay Length | 446 mm | 448 mm | 446 mm | 448 mm | 446 mm | 448 mm | 446 mm | 448 mm |
| Wheelbase | 1201 mm | 1278 mm | 1229 mm | 1230 mm | 1277 mm | 1278 mm | 1313 mm | 1314 mm |
| Bottom Bracket Drop | 12 mm | 18 mm | 18 mm | 24 mm | 18 mm | 24 mm | 17 mm | 24 mm |
| Standover Height | 763 mm | 758 mm | 775 mm | 769 mm | 775 mm | 769 mm | 798 mm | 779 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" |
