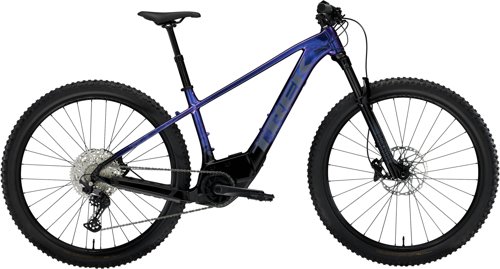

Marlin+ 8
Trek
Trail
Marlin+ 8 è una e-MTB trail (2025) by Trek. È ideale per chi cerca un setup off-road bilanciato. Assetto: equilibrata. Uso: ideale su trail scorrevoli. Punti forti secondo le metriche: ottimo rapporto qualità/prezzo, capacità in salita da all-rounder e sospensioni capaci su terreno sconnesso. Rispetto a opzioni più specialistiche, il compromesso è un feeling più rigido rispetto alle opzioni comfort-first e meno focus sulla velocità pura rispetto ai setup più race. Aggiungila al confronto su MatchBikes.com e vedi come si posiziona.
6.7
Valutazione

+16
Image 1 of 22
Score Summary
Prestazioni
5.8
Valore
9.4
Vestibilità
6.4
Prestazioni
Built for speed and efficiency
Velocità
4.7
Molto bassa
Efficienza in Salita
6.5
Tuttofare
Sospensione
6.0
Controllo sicuro sui trail
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
5.2
Bilanciata
Flessibilità Vestibilità
6.8
Moderatamente regolabile
Comfort di Guida
6.6
Rigida
Valore
Rapporto Qualità-Prezzo
9.4
Valore eccezionale
Gamma Superfici
Trail scorrevoliBatteria
Batteria
1.5
Tragitti brevi
Specifiche
Generale
Marca
Trek
Modello
Marlin+ 8
Anno
2025
Prezzo
$3,149
Peso
21.49 kg
Categoria
E-bikeMountain
Sottocategoria
Trail
Gruppo
Deore
Telaio
Telaio

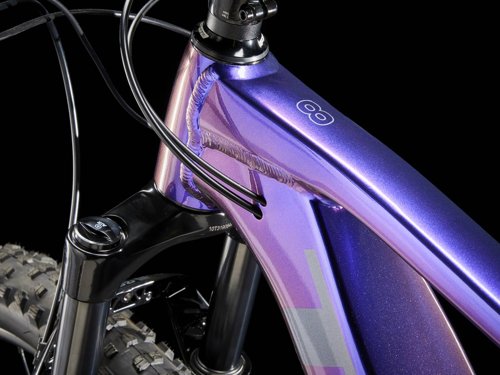

Size: XS, Alpha Gold Aluminum, curved top tube, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle; Size: S, M, L, XL, Alpha Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
Forcella Ammortizzata

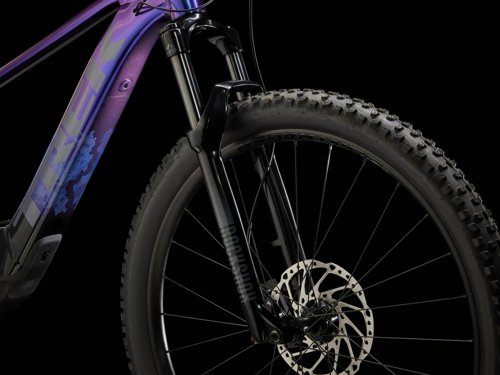

Size: XS, RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 100mm travel; Size: S, RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, 15mm Maxle Stealth, 120mm travel; Size: M, L, XL, RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
Tipo di sospensione
Hardtail
Trasmissione
Leve del Cambio

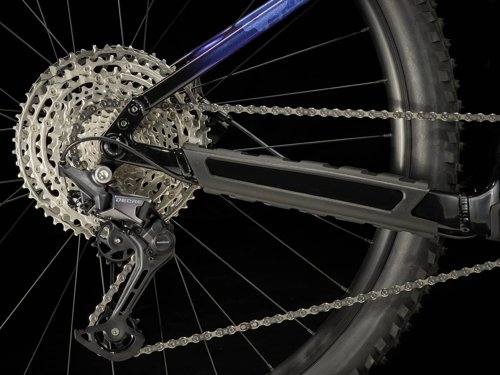

Shimano Deore M6100, 12 speed
Deragliatore Posteriore
Shimano Deore M6100, long cage
Cassetta
Shimano Deore M6100, 10-51, 12 speed
Guarnitura
FSA CK-220, 165mm length
Catena
Shimano Deore M6100, 12 speed
Ruote
Mozzo Anteriore
Shimano TC500 alloy, centerlock, 110x15mm thru axle
Mozzo Posteriore
Shimano TC500 alloy, centerlock, 148x12mm thru axle
Cerchi
Size: XS, S, M, L, XL, Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve; Size: XS, S, M, L, XL, Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve
Pneumatici
Size: XS, S, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60''; Size: M, L, XL, Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60''
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper
Cockpit
Attacco Manubrio
Size: XS, S, Bontrager Comp, 31.8mm, 7 degree, 35mm length; Size: M, L, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: XL, Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Manubrio
Size: XS, S, Bontrager alloy, 31.8mm, 15mm rise, 720mm width; Size: M, L, XL, Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Manopole
Bontrager XR Trail Comp, nylon lock-on
Seduta
Sella

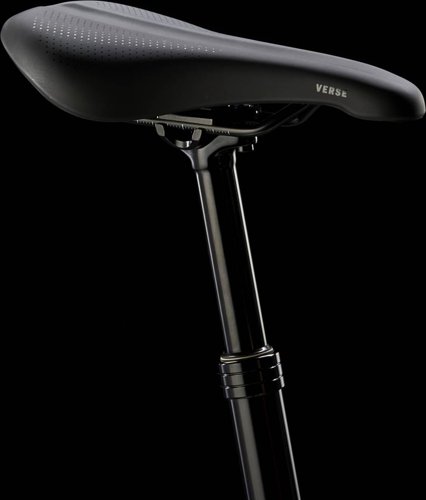

Size: XS, S, M, L, XL, Bontrager Verse P3, chromoly rails; Size: XS, S, M, L, XL, Bontrager Arvada, hollow chromoly rails, 138mm width
Reggisella
Size: XS, S, TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length; Size: M, L, XL, TranzX JD-YSP18, 150mm travel, internal routing, 31.6mm, 470mm length
Componenti Elettrici
Motore
Bosch Active Line Plus
Batteria
Bosch CompactTube 400Wh
Caricabatterie
Bosch standard 2A, 110V, smart system
Autonomia
1.5
Geometria
| Misura | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.444 mm | 1.422 mm | 1.423 mm | 1.351 mm | 1.319 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 663 mm | 700 | 739 mm | 772 mm | 805 mm |
| Rake | 42 mm | 42 mm | 46 mm | 46 mm | 46 mm |
| Trail | 110 mm | 110 mm | 114 mm | 114 mm | 114 mm |
| Stack | 563 mm | 590 mm | 626 mm | 635 mm | 653 mm |
| Reach | 390 mm | 415 mm | 440 mm | 470 mm | 495 mm |
| Top Tube Length | 551 mm | 584 mm | 620 mm | 652 mm | 682 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 450 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 100 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 470 mm | 470 mm | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1129 mm | 1166 mm | 1218 mm | 1251 mm | 1284 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 678 mm | 710 mm | 760 mm | 771 mm | 775 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 145 cm | 154 cm | 164 cm | 175 cm | 187 cm |
| Rider Max Height | 156 cm | 166 cm | 178 cm | 189 cm | 195 cm |
