THUNDRA
Mondraker
Trail
THUNDRA is een e-trail-mountainbike (2023) by Mondraker. In de praktijk is dit een sterke match voor een brede groep rijders dankzij de hoge fit-flexibiliteit. Fit: uitgebalanceerde houding. Gebruik: het best op flow trails en efficiënt rollen. De belangrijkste MatchBikes-metrics pluspunten zijn goede fit-flexibiliteit om je positie af te stellen, capabele vering op ruwer terrein en allround klimcapaciteit. De belangrijkste trade-off is een straffer rijgevoel dan comfort-first opties en minder focus op pure snelheid dan speed-georiënteerde builds. Als dit dichtbij voelt: vergelijk hem op MatchBikes.com met alternatieven.
6.0
Beoordeling

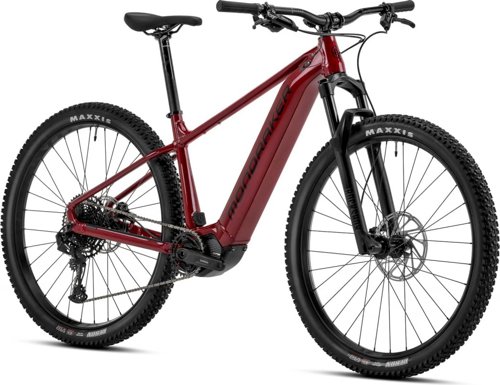

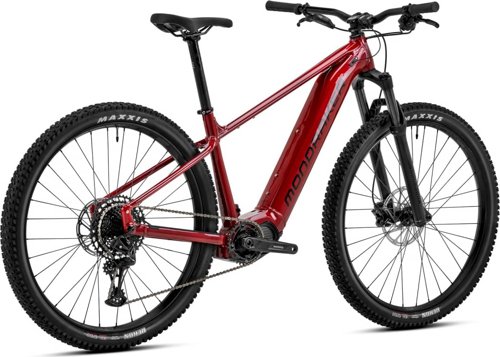

Image 1 of 4
Score Summary
Prestatie
5.6
Pasvorm
6.7
Prestatie
Built for speed and efficiency
Snelheid
4.7
Zeer laag
Klimefficiëntie
5.4
Alleskunner
Vering
6.0
Zelfverzekerde trailcontrole
Pasvorm
Dialed-in Fit & Comfort
Rijpositie
5.8
Gebalanceerd
Pasvorm Flexibiliteit
7.4
Verstelbaar
Rijcomfort
6.6
Stevig
Waarde
Ondergrond Bereik
Flow trailsBatterij
Batterij
4.0
Woon-werkritten
Specificaties
Algemeen
Merk
Mondraker
Model
THUNDRA
Jaar
2023
Gewicht
22 kg
Categorie
E-bikeMountain
Subcategorie
Trail
Groepset
SX Eagle, FSA
Wielen
29"
Frame
Frame
Thundra 6061 Xtralite Full Butted Alloy, Forward Geometry, integrated internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor.*Optional external battery
Voorvork
RockShox Recon Silver RL 29, 120mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 42mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Veringtype
Hardtail
Aandrijving
Shifters
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Achterderailleur
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Crankstel
FSA Shimano EP8, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Ketting
SRAM SX Eagle, 12s, Powerlock
Wielen
Voornaaf
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Achternaaf
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Velgen
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spaken
CN round stainless steel
Banden
Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Remmen
Remtype
Hydraulic Disc
Rembeschrijving
Front: SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pad
Remhendels
SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Cockpit
Stuurpen
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Stuur
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Handvatten
Onoff Twin, 1lock-on, 135mm
Zadel
Zadel
MDK ebike black
Zadelpen
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 31.6mm, length 400mm
Elektrische Componenten
Motor
Shimano STEPS EP600
Accu
Simplo internal 720Wh
Actieradius
4.0

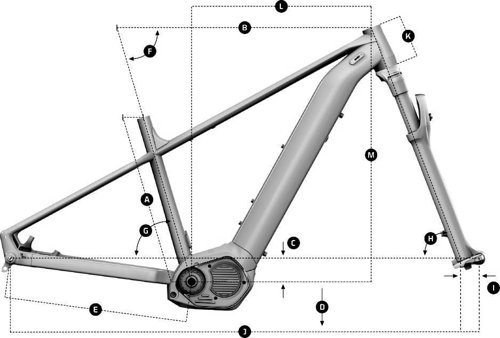

Geometrie
| Afmetingen | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.41 mm | 1.37 mm | 1.3 mm |
| Bottom Bracket Height | 317 mm | 317 mm | 317 mm | 317 mm | 317 mm |
| Front Center | 690 mm | 405 mm | 734 mm | 761 mm | 791 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 1191 mm | 89 mm | 94 mm | 89 mm |
| Stack | 637 mm | 637 mm | 637 mm | 655 mm | 655 mm |
| Reach | 407 mm | 422 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 597 mm | 612 mm | 642 mm | 667 mm | 697 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 390 mm | 430 mm | 470 mm | 658 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1135 mm | mm | 1180 mm | 1207 mm | 1237 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
