PRIME RX
Mondraker
Crosscountry
PRIME RX is een e-cross-country-mountainbike (2023) van Mondraker, onderdeel van de Prime-familie. Dit past bij een brede groep rijders dankzij de hoge fit-flexibiliteit. Houding: uitgebalanceerde houding. Gebruik: het best op flow trails en efficiënt rollen. Op basis van de metrics springen eruit: goede fit-flexibiliteit om je positie af te stellen, een balans tussen comfort en directheid en capabele vering op ruwer terrein. De belangrijkste trade-off is minder focus op pure snelheid dan speed-georiënteerde builds. Zet hem in de compare op MatchBikes.com en kijk hoe hij scoort.
5.6
Beoordeling

Image 1 of 4
Score Summary
Prestatie
5.1
Pasvorm
6.6
Prestatie
Built for speed and efficiency
Snelheid
5.2
Laag
Klimefficiëntie
5.0
Alleskunner
Vering
5.0
Zelfverzekerde trailcontrole
Pasvorm
Dialed-in Fit & Comfort
Rijpositie
6.4
Gebalanceerd
Pasvorm Flexibiliteit
7.1
Verstelbaar
Rijcomfort
6.4
Gebalanceerd
Waarde
Ondergrond Bereik
Flow trailsBatterij
Batterij
4.8
Regelmatige ritten
Specificaties
Algemeen
Merk
Mondraker
Model
PRIME RX
Jaar
2023
Gewicht
25.6 kg
Categorie
E-bikeMountain
Subcategorie
Crosscountry
Groepset
SX Eagle, Race Face
Wielen
29"
Frame
Frame
Prime 6061 Xtralite Fully Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor
Voorvork
RockShox 35 Silver TK 29, 100mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Veringtype
Hardtail
Aandrijving
Shifters
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Achterderailleur
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Crankstel
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Ketting
SRAM SX Eagle, 12s, Powerlock
Wielen
Voornaaf
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Achternaaf
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Velgen
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spaken
CN round stainless steel
Banden
Front: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall., Rear: Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.
Remmen
Remtype
Hydraulic Disc
Rembeschrijving
Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Remhendels
SRAM DB8, tool reach adjust
Cockpit
Stuurpen
MDK Urban 40mm 5º, 6061 forged alloy, 31.8mm barbore
Stuur
MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Handvatten
Onoff Shaper
Zadel
Zadel
MDK urban
Zadelpen
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Elektrische Componenten
Motor
Bosch Performance Line CX (25km/h) Smart System
Accu
Bosch Powertube 750Wh
Actieradius
4.8

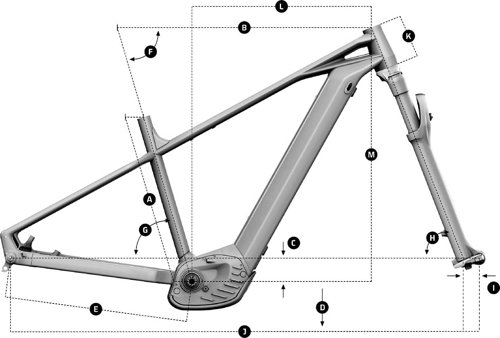

Geometrie
| Afmetingen | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.37 mm | 1.34 mm | 1.27 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 686 mm | 702 mm | 732 mm | 759 mm | 789 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 72 mm | 71 mm | 71 mm | 77 mm | 71 mm |
| Stack | 627 mm | 627 mm | 627 mm | 645 mm | 645 mm |
| Reach | 412 mm | 427 mm | 457 mm | 482 mm | 507 mm |
| Top Tube Length | 597 mm | 612 mm | 642 mm | 667 mm | 697 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 390 mm | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1129 mm | 1145 mm | 1175 mm | 1202 mm | 1232 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
