29″ Full Suspension Electric Mountain Bike E-Expl 520 S
ROCKRIDER
Trail
29″ Full Suspension Electric Mountain Bike E-Expl 520 S is een e-trail-mountainbike (2023) van Rockrider. In de praktijk is dit een sterke match voor een brede groep rijders dankzij de hoge fit-flexibiliteit. Houding: uitgebalanceerde houding. Qua terrein: sterk op natuurlijke trails en gemengd terrein. Op basis van de metrics springen eruit: sterke prijs/kwaliteit-verhouding, comfortgericht rijgevoel op langere ritten en goede fit-flexibiliteit om je positie af te stellen. Om rekening mee te houden: accubereik beter voor dagelijks gebruik dan all-day tochten. Zet hem in de compare op MatchBikes.com en kijk hoe hij scoort.
7.1
Beoordeling

+2
Image 1 of 8
Score Summary
Prestatie
6.2
Waarde
8.6
Pasvorm
7.5
Prestatie
Built for speed and efficiency
Snelheid
5.4
Laag
Klimefficiëntie
5.1
Alleskunner
Vering
7.0
Klaar voor zware impacts
Pasvorm
Dialed-in Fit & Comfort
Rijpositie
5.3
Gebalanceerd
Pasvorm Flexibiliteit
7.8
Verstelbaar
Rijcomfort
8.0
Comfortabel
Waarde
Prijs-kwaliteitverhouding
8.6
Uitzonderlijke waarde
Ondergrond Bereik
Natuurlijke trailsBatterij
Batterij
2.6
Korte ritten
Specificaties
Algemeen
Merk
ROCKRIDER
Model
29″ Full Suspension Electric Mountain Bike E-Expl 520 S
Jaar
2023
Prijs
$3,744
Gewicht
24.3 kg
Categorie
E-bikeMountain
Subcategorie
Trail
Groepset
microSHIFT Advent X
Wielen
29"
Frame
Frame
6061 aluminium suspended frame Single pivot with tie rod Max rear travel 140 mm Fully built-in battery, removes from the side Conical steering socket 31.6 mm diameter seat tube Mount for 1 bottle cage
Voorvork
X-Fusion McQueen R fork Travel: 140 mm Dampers: 34 mm Axle: Thru axle Format: 110 x 15 mm Offset: 46 mm Technology: Roughcut Air Adjustments: Bounce, air pressure X-Fusion PRO R shock Dimensions: 210 x 55 mm Mount: Standard
Veringtype
Full
Aandrijving
Shifters
Microshift ADVENT X
Achterderailleur
Microshift ADVENT X
Cassette
Microshift ADVENT X Series H 11-48 10-speed
Crankstel
34 teeth with chain guide
Ketting
KMC e10S

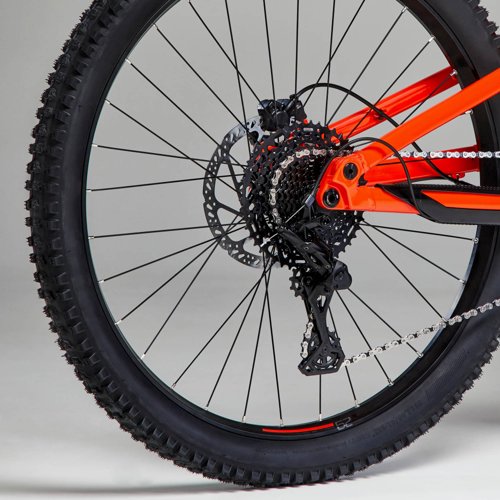

Wielen
Velgen
Rockrider 29” 30c wheels 29" size compatible with fat tyres: up to 2.6" Internal width between hooks: 30 mm 32 spokes Format: BOOST Discs: 6 holes Freewheel hub: HG Sealed bearings Tubeless Ready, with a sealed rim strip (requires TUBELESS tyres, Presta valves, and tyre sealant)
Banden
Rockrider Grip 500 29" x 2.4" Tubeless ready Bead: soft Carcass: 60 TPI 1 ply Sidewalls: Skinwall with puncture-resistant side strip Tread: Dual lug
Remmen
Remtype
Hydraulic Disc
Rembeschrijving
Tektro M276 hydraulic disc brakes Number of pistons: 2 Front disc: 203 mm Rear disc: 203 mm 6-bolt mount
Zadel
Zadel
Decathlon Core 60°
Zadelpen
Telescoping

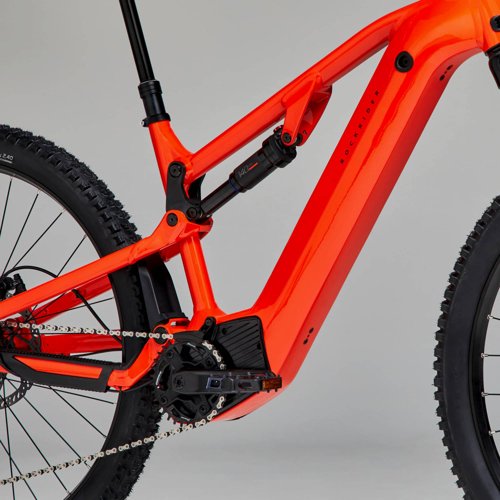

Elektrische Componenten
Motor
BROSE DRIVE T Aluminium motor Mid-drive position 70 Nm torque Torque sensor Max assistance: 320% In accordance with EU regulations, the electrical assistance cuts out above 25 km/h
Accu
Battery fully integrated into the frame with side outlet for easy gripping. Capacity: 500 Wh With their smart management (BMS), Decathlon lithium-ion batteries have a long life (over 500 full charging cycles). Compatible with a 360 Wh battery extension, sold separately (up to 44 additional km, at a low gradient)
Actieradius
2.6

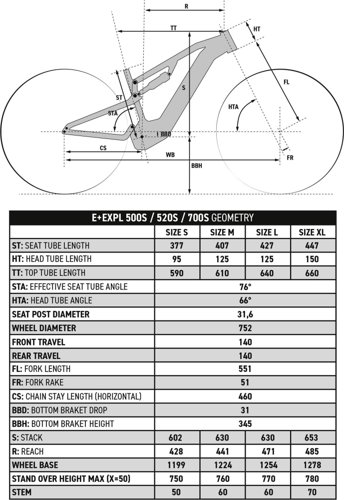

Geometrie
| Afmetingen | MD | LG |
|---|---|---|
| Wheels | 29" | 29" |
