AREON
CTM
Trail

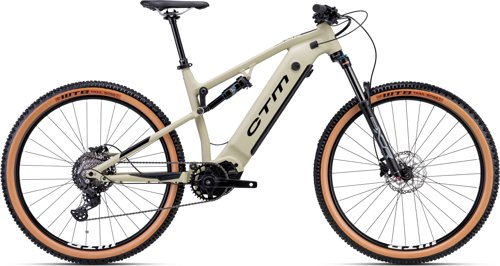

AREON is an alloy electric trail mountain bike (2023), by CTM, in the Areon series. This model is best for riders looking for a balanced off-road setup, with a balanced riding position, while being well suited to natural trails and mixed off-road terrain. Its profile is strongest in areas like strong value-for-money versus many similar bikes, strong speed potential on smoother terrain, and capable suspension support for rougher terrain. That said, what it gives up slightly is a firmer ride feel than comfort-first options and battery range that is better for shorter daily use than long all-day outings. Compare this bike on MatchBikes.com to similar trail models.
7.2
Rating

+6
Image 1 of 12
Score Summary
Performance
6.5
Value
9.9
Fit
6.6
Performance
Built for speed and efficiency
Speed
6.6
Medium
Climbing Efficiency
4.9
All-Rounder
Suspension
7.0
High-impact ready
Fit
Dialed-in Fit & Comfort
Riding Position
6.9
Balanced
Fit Flexibility
6.6
Moderately Adjustable
Ride Comfort
6.6
Race-Stiff
Value
Value for Money
9.9
Exceptional Value
Surface Range
Natural TrailsBattery
Battery
3.8
Commutes
Specifications
General
Brand
CTM
Model
AREON
Year
2023
Price
$3,254
Category
E-bikeMountain
Sub Category
Trail
Groupset
Deore
Wheels
29"
Frame
Frame
ALU 6061, rear travel 135 mm, M (17"), L (19"), XL (21")
Suspension Fork
Suntour XCR34, AIR, LOR, DS, 140mm, boost™ 15x110axle
Suspension Type
Hardtail
Drivetrain
Shift Levers
Shimano Deore SL-M5130/10sp.
Rear Derailleur
Shimano Deore RD-M5130
Crank

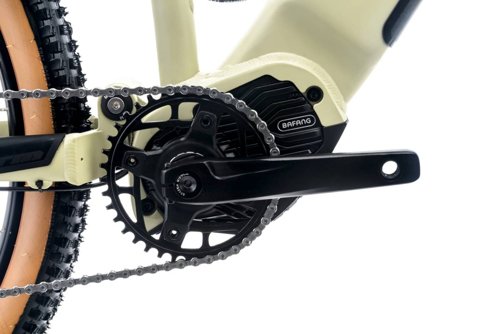

Bafang 38T, 170mm
Chain
Shimano CN-LG500 124L
Wheels
Rear Hub
Shimano MT400 boost / 32H
Rims
WTB ST i29 TCS 2.0 29" 32H
Tires
WTB Trail Boss 29x2.4" Comp
Brakes
Brake Type
Hydraulic Disc
Brake Description
Shimano MT200 / SMRT10M
Cockpit
Stem
CTM ASM03 45 mm
Handlebar
CTM rise bar, 31.8dia, 760mm
Seat
Saddle
CTM FLAT
Seatpost
EXA Form KSP900 (M-125mm/L,XL-150mm)
E-Bike Components
Motor

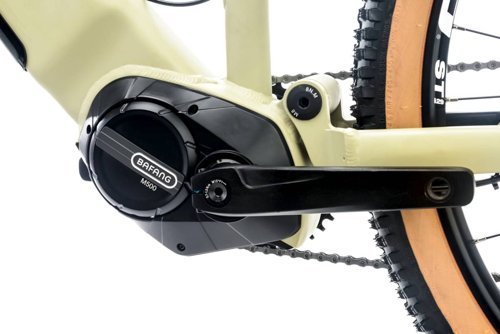

BAFANG M500 / 250W / 95Nm
Battery
CTM IGB 770Wh / 48V / 16Ah
Range
3.8
Geometry
| Measurement | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.27 mm |
| Front Center | 760 mm | 778 mm | 813 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Stack | 631 mm | 631 mm | 631 mm |
| Reach | 456 mm | 476 mm | 496 mm |
| Top Tube Length | 612 mm | 632 mm | 657 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 440 mm | 483 mm | 530 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 125 mm | 125 mm | 125 mm |
| Chainstay Length | 476 mm | 476 mm | 476 mm |
| Wheelbase | 1241 mm | 1261 mm | 1286 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 205 cm |
