Hydra Diode
Forestal
Downhill

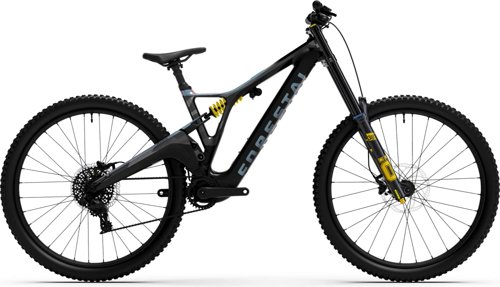

Hydra Diode è una e-MTB downhill (2024) di Forestal, parte della famiglia Hydra. È ideale per chi cerca un feeling off-road più attivo e orientato alla performance. Assetto: sportiva e attiva. Terreno: più a suo agio in bike park (gravity). I principali punti nelle metriche MatchBikes sono sospensioni capaci su terreno sconnesso, velocità equilibrata e versatile per l’uso quotidiano e capacità in salita da all-rounder. Il lato meno forte è un feeling più rigido rispetto alle opzioni comfort-first e il value dipende più dalle priorità che dal solo prezzo. Prossimo passo: confronta questa bici su MatchBikes.com.
6.3
Valutazione

Image 1 of 3
Score Summary
Prestazioni
7.6
Valore
1.0
Vestibilità
7.7
Prestazioni
Built for speed and efficiency
Velocità
6.3
Media
Efficienza in Salita
5.3
Tuttofare
Sospensione
9.0
Pronta per terreni estremi
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.1
Sportiva
Flessibilità Vestibilità
6.6
Moderatamente regolabile
Comfort di Guida
8.5
Rigida
Valore
Rapporto Qualità-Prezzo
1.0
Sovrapprezzata
Gamma Superfici
Bike ParkBatteria
Batteria
1.0
Tragitti brevi
Specifiche
Generale
Marca
Forestal
Modello
Hydra Diode
Anno
2024
Prezzo
$14,385
Peso
19.9 kg
Categoria
E-bikeMountain
Sottocategoria
Downhill
Gruppo
X1
Telaio
Telaio
Forestal Alpha Box Carbon Enduro 29" TR 170 Monocoque construction / Track Ready / 170mm Travel / 2.4kg Size M
Forcella Ammortizzata
Öhlins DH 38 M.1 29" 180mm Tapered / Boost 20x110 / Offset 46mm / Extl begin stroke rebound / Low Speed Compression / High Speed Compression / Gloss Black-Yellow
Ammortizzatore Posteriore
Öhlins TTX Coil Metric 230x65mm / Extl Rebound / Extl high and low speed compression / Spring rates: 320 lbs on S, 388 lbs on M, 434 lbs on L, 480 lbs on XL / Gloss Black-Yellow
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM X1 11 Speed / X-Actuation / Colour: Black
Deragliatore Posteriore
SRAM X1 11 Speed / X-Actuation / Long cage / Colour: Black
Cassetta
SRAM XG-1150 10-42t / 11 Speed / XD Driver Body / Colour: Black
Guarnitura
Praxis Carbon Q-Factor 170mm / ISIS Drive / 104 BCD / Length 160mm Sizes S, M / Length 165mm Sizes L, XL
Catena
SRAM 11 Speed / Powerlock / Colour: Grey
Ruote
Cerchi
Front: Crankbrothers Synthesis Carbon DH E11 29" Hub I9 1/1 / 15 x 110mm Boost / Spokes Sapim E-Light / 6-Bolt / Inner Rim 31.5mm / Outter Rim 37.5mm, Rear: Crankbrothers Synthesis Carbon DH E11 29" Hub I9 1/1 / 12 x 148mm Boost / Spokes Sapim Strong / XD Drivetrain/ 6-Bolt / Inner Rim 29.5mm / Outter Rim 36.5mm
Pneumatici
Front: Panaracer Romero 29 x 2.4 ST 3Comp. Super Tough / Tubeless Ready / Triple Compound / Puncture resistant wall, Rear: Panaracer Romero 29 x 2.4 ST 3Comp. Super Tough / Tubeless Ready / Triple Compound / Puncture resistant wall
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Braking Braking
Cockpit
Attacco Manubrio
Forestal X PP Direct Mount DH ? 31.8mm / 7075 T6 Aluminum CNC / Black
Manubrio
Forestal Oxydon C 780mm ? 31.8mm / Upsweep 4° / Backsweep 6° / Rise 15mm / Toray T700 & T800 Carbon
Manopole
Production Privée CR35 Forestal x Production Privée edition / 2-position adjustable (Tour / Race)
Seduta
Sella
Fizik Aidon X3 E-MTB Fibre reinforced nylon / S-alloy rails / 249g / 255 x 145mm
Reggisella
Crankbrothers Highline 7 ? 31.6mm / Length 125mm Size S / Length 150mm Sizes M, L / Length 170mm Size XL / Black ring / Aluminum 7076 T6
Componenti Elettrici
Motore
Forestal EonDrive 250W / 60Nm / IP67 / 1.95kg / 165 x 105 x 147mm
Batteria
Forestal Aurora Performance 360Wh / 52V / Integrated / Rapid Charge / 1.8kg / 350 x 72 x 50.5mm
Autonomia
1.0
Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.421 mm | 1.354 mm | 1.302 mm | 1.276 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Front Center | 743 mm | 770 mm | 799 mm | 825 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 123 mm | 123 mm | 123 mm | 123 mm |
| Stack | 611 mm | 616 mm | 625 mm | 638 mm |
| Reach | 430 mm | 455 mm | 480 mm | 500 mm |
| Top Tube Length | 577 mm | 603 mm | 633 mm | 657 mm |
| Seat Tube Angle | 76.6 ° | 76.6 ° | 76.6 ° | 76.6 ° |
| Seat Tube Length | 415 mm | 430 mm | 465 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 445 mm | 445 mm |
| Wheelbase | 1176 mm | 1203 mm | 1242 mm | 1268 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
