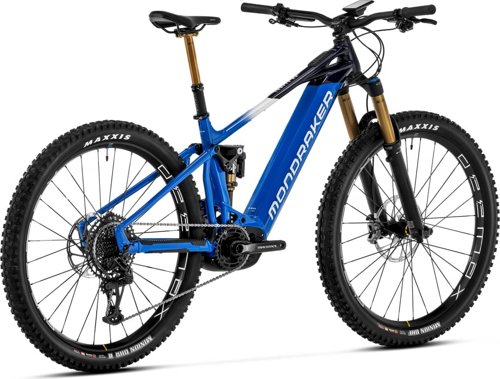

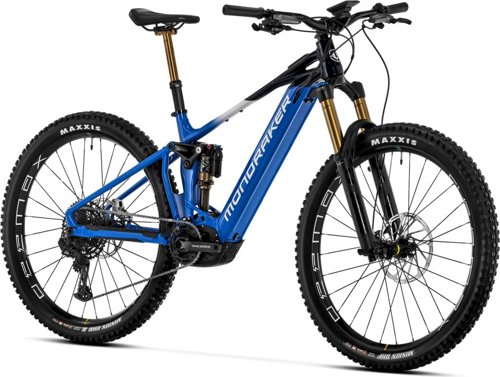

CRAFTY RR
Mondraker
Enduro
CRAFTY RR è una e-MTB enduro (2024) by Mondraker, nella serie Crafty. In pratica è un ottimo match per chi cerca un feeling off-road più attivo e orientato alla performance. Assetto: sportiva e attiva. Terreno: pensata per trail tecnici e terreno più sconnesso. Dalle metriche emergono un equilibrio tra comfort e reattività, sospensioni capaci su terreno sconnesso e capacità in salita da all-rounder. Da tenere presente: meno focus sulla velocità pura rispetto ai setup più race e un fit più specifico che può andare bene a meno persone. Prossimo passo: confronta questa bici su MatchBikes.com.
6.2
Valutazione

Image 1 of 4
Score Summary
Prestazioni
6.2
Valore
5.7
Vestibilità
6.5
Prestazioni
Built for speed and efficiency
Velocità
3.0
Molto bassa
Efficienza in Salita
5.3
Tuttofare
Sospensione
8.0
Pronta ai grandi impatti
Vestibilità
Dialed-in Fit & Comfort
Posizione di Guida
7.0
Sportiva
Flessibilità Vestibilità
2.8
Assetto specifico gara
Comfort di Guida
8.3
Bilanciata
Valore
Rapporto Qualità-Prezzo
5.7
Valore adeguato
Gamma Superfici
Trail tecniciBatteria
Batteria
3.7
Tragitti quotidiani
Specifiche
Generale
Marca
Mondraker
Modello
CRAFTY RR
Anno
2024
Prezzo
$7,699
Peso
25.85 kg
Categoria
E-bikeMountain
Sottocategoria
Enduro
Gruppo
GX Eagle
Telaio
Telaio
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Forcella Ammortizzata
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Ammortizzatore Posteriore
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Tipo di sospensione
Full
Trasmissione
Leve del Cambio
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Deragliatore Posteriore
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Guarnitura
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Catena
SRAM NX Eagle, 12s, Powerlock
Ruote
Mozzo Anteriore
Mavic, Boost 15x110mm, IS 6 bolts
Mozzo Posteriore
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Cerchi
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Raggi
Mavic J-bend double butted, contactless lacing
Pneumatici
Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Freni
Tipo di freno
Hydraulic Disc
Descrizione del freno
Front: SRAM Code Bronze, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Bronze, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Leve Freno
SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Cockpit
Attacco Manubrio
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Manubrio
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Manopole
Onoff Desert, 1lock-on, 135mm
Seduta
Sella
FIZIK Terra Aidon X5 145mm
Reggisella
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Componenti Elettrici
Motore
Bosch Performance Line CX Cruise (20 mph) GEN4 SMART SYSTEM
Batteria
Bosch Powertube 750Wh
Autonomia
3.7

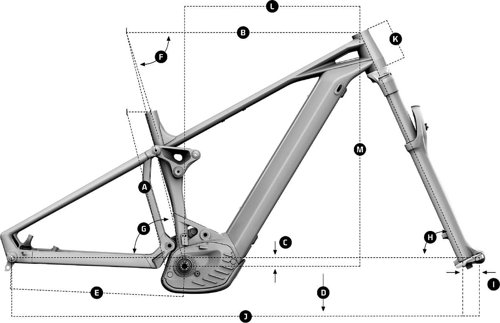

Geometria
| Misura | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.382 mm | 1.323 mm | 1.306 mm | 1.255 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 771 mm | 791 mm | 811 mm | 831 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 122 mm | 130 mm | 130 mm |
| Stack | 622 mm | 622 mm | 640 mm | 640 mm |
| Reach | 450 mm | 470 mm | 490 mm | 510 mm |
| Top Tube Length | 605 mm | 625 mm | 650 | 670 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1225 mm | 1245 mm | 1265 mm | 1285 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
