Aeroad CFR Disc Di2
Canyon
Aero

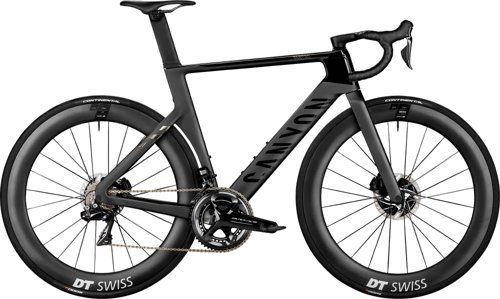

Aeroad CFR Disc Di2 is een aero racefiets (2022) van Canyon. Het is ideaal voor rijders die een sportief weggevoel willen zonder een keiharde racefit. Fit: sportieve houding. Terrein: het best op asfalt. Op basis van de metrics springen eruit: duidelijk aero-gericht voor hogere snelheid op de weg, sterk snelheidspotentieel op snel/strak terrein en goede fit-flexibiliteit om je positie af te stellen. Tegelijkertijd Wat hij iets inlevert is een straffer rijgevoel dan comfort-first opties en value hangt meer af van prioriteiten dan van puur ‘goedkoop’. Gebruik MatchBikes.com om deze fiets te vergelijken met aero-alternatieven.
6.4
Beoordeling

Image 1 of 1
Score Summary
Prestatie
7.1
Waarde
4.5
Pasvorm
5.7
Prestatie
Built for speed and efficiency
Snelheid
8.6
Zeer hoog
Klimefficiëntie
5.5
Alleskunner
Aerodynamica
9.7
Volledige aero
Pasvorm
Dialed-in Fit & Comfort
Rijpositie
6.4
Sportief
Pasvorm Flexibiliteit
7.2
Verstelbaar
Rijcomfort
2.8
Stevig
Waarde
Prijs-kwaliteitverhouding
4.5
Lage waarde
Ondergrond Bereik
Alleen wegSpecificaties
Algemeen
Merk
Canyon
Model
Aeroad CFR Disc Di2
Jaar
2022
Prijs
$9,660
Gewicht
7.14 kg
Categorie
Road
Subcategorie
Aero
Groepset
Dura-Ace Di2
Wielen
700c
Frame
Frame
Aeroad CFR DISC Di2
Voorvork
Canyon FK0060 CF Disc, All-new design, 12x120 mm through axle, flat-mount disc standard. CT scanner tested and approved. Weight: 425 g, Hub spacing: 12x100mm
Veringtype
Rigid
Aandrijving
Shifters
Shimano Dura Ace Di2 R9170, 11-speed, Left-hand electronic shifter, 2-by setup, reach adjustment. Weight: 160 g | Shimano Dura Ace Di2 R9170, 11-speed, Right-hand electronic shifter, 11-speed, reach adjustment. Weight: 160 g
Achterderailleur
Shimano Dura-Ace Di2 R9150, 11-speed, Short-cage 11-speed derailleur, max. cassette size: 30T, Shadow shifting technology. Weight: 205 g
Voorderailleur
Shimano Dura-Ace Di2 R9150, For 2x11 speed setups, with automatic trimming, braze-on mount. Weight: 105 g
Cassette
Shimano Dura-Ace R9100, 11-speed, 11-28, With mix of steel and titanium sprockets mounted on an ultralight aluminium spider for minimal weight. Gear range: 11-28T, weight: 180 g
Crankstel
Shimano Dura-Ace R9100 PM, 2x11-speed crankset with integrated dual-sided power meter and 52/36 gearing. With HollowTech II design for superlight construction. Weight: 670 g, *US size small comes with 170mm cranks
Trapas
Shimano Pressfit BB92, Pressfit BB86 standard, compatible with 24 mm axles, featuring Hollowtech 2 technology. Weight: 54 g
Ketting
Shimano HG901 11-speed, High-end chain with complete SIL-TEC treatment on plates and roller, for increased durability and efficiency.
Wielen
Velgen
DT Swiss ARC 1100 Dicut, Front wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim height: 62 mm, inner width: 20 mm, weight: 776 g | DT Swiss ARC 1100 Dicut, Rear wheel with Aero+ technology for stability, low drag, and all-round performance. With new DT Swiss aero spokes and SINC ceramic bearings. Tubeless-ready. Rim depth: 62 mm, inner width: 20 mm, driver: Shimano 11-speed road, weight: 900 g
Banden
Continental Grand Prix 5000, 25 mm, Aeroad & Speedmax: Continental Grand Prix Force, Ultimate: Continental Grand Prix 4000 S II | Continental Grand Prix 5000 28 mm, Casing: Vectran Breaker, Compound: BlackChili, Technology: Foldable
Remmen
Remtype
Hydraulic Disc
Rembeschrijving
hydraulicDisc
Remhendels
Shimano Dura Ace Di2 R9170, 11-speed, Left-hand electronic shifter, 2-by setup, reach adjustment. Weight: 160 g | Shimano Dura Ace Di2 R9170, 11-speed, Right-hand electronic shifter, 11-speed, reach adjustment. Weight: 160 g
Zadel
Zadel
Selle Italia SLR Boost Superflow Kit Carbonio, Superlight saddle with carbon rails, modern short-nose design and unisex ergonomics. Width: 130mm (S), rail material: carbon (oval), weight: 122 g
Zadelpen
Canyon SP0046 Aero Seatpost, Aero-optimised carbon seatpost with new sleeve bearing that creates a seal and reduces seatpost and seat tube friction and prevents dirt from entering.
Geometrie
| Afmetingen | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.39 mm | 1.39 mm | 1.43 mm | 1.46 mm | 1.45 mm | 1.46 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 573 mm | 585 mm | 577 mm | 589 mm | 602 mm | 625 mm | 638 mm |
| Rake | 43 mm | 49 mm | 36 mm | 43 mm | 42 mm | 41 mm | 42 mm |
| Trail | 73 mm | 61 mm | 66 mm | 56 mm | 57 mm | 57 mm | 54 mm |
| Stack | 490 mm | 513 mm | 531 mm | 552 mm | 572 mm | 598 mm | 616 mm |
| Reach | 364 mm | 370 mm | 382 mm | 385 mm | 393 mm | 411 mm | 421 mm |
| Top Tube Length | 512 mm | 525 mm | 541 mm | 551 mm | 564 mm | 590 mm | 605 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 443 mm | 473 mm | 503 mm | 533 mm | 563 mm | 593 mm | 623 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72.8 ° | 73.3 ° | 73.3 ° | 73.5 ° | 73.8 ° |
| Head Tube Length | 89 mm | 109 mm | 126 mm | 147 mm | 167 mm | 193 mm | 211 mm |
| Chainstay Length | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm | 402 mm |
| Wheelbase | 964 mm | 976 mm | 969 mm | 981 mm | 994 mm | 1017 mm | 1030 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 725 mm | 751 mm | 777 mm | 802 mm | 826 mm | 852 mm | 876 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | cm |
