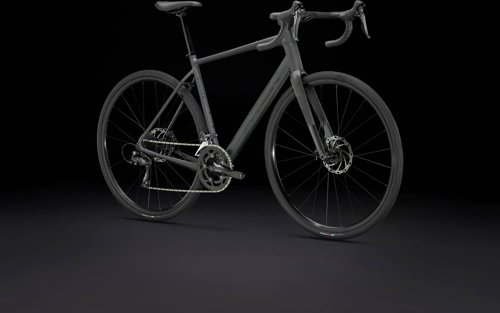

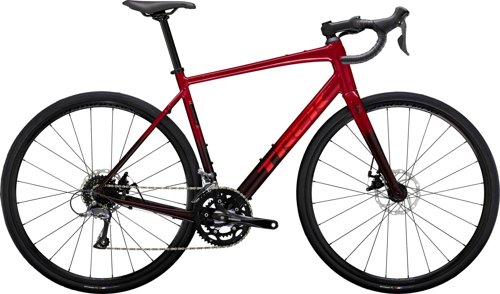

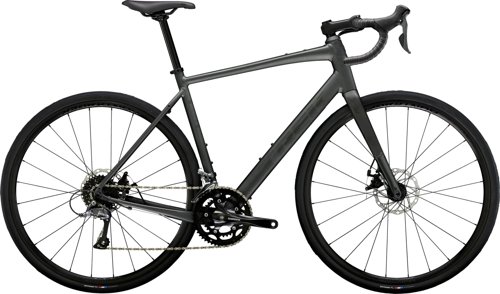

Domane AL 2 Gen 4
Trek
Endurance
Domane AL 2 Gen 4 is een endurance racefiets (2025) by Trek, onderdeel van de Domane-familie. Het is ideaal voor rijders die comfort, vertrouwen en langere ritten prioriteren. Houding: comfortgerichte houding. Qua terrein: sterk op slecht asfalt. Qua metrics valt hij op door sterke prijs/kwaliteit-verhouding, goede fit-flexibiliteit om je positie af te stellen en gebalanceerd aero-profiel. Tegelijkertijd De belangrijkste trade-off is minder focus op pure snelheid dan speed-georiënteerde builds. Volgende stap: vergelijk deze fiets op MatchBikes.com.
5.9
Beoordeling

+30
Image 1 of 36
Score Summary
Prestatie
4.1
Waarde
9.9
Pasvorm
5.9
Prestatie
Built for speed and efficiency
Snelheid
4.9
Zeer laag
Klimefficiëntie
5.4
Alleskunner
Aerodynamica
6.4
Gebalanceerde aero
Pasvorm
Dialed-in Fit & Comfort
Rijpositie
4.7
Comfort
Pasvorm Flexibiliteit
7.7
Verstelbaar
Rijcomfort
5.0
Gebalanceerd
Waarde
Prijs-kwaliteitverhouding
9.9
Uitzonderlijke waarde
Ondergrond Bereik
Ruwe wegSpecificaties
Algemeen
Merk
Trek
Model
Domane AL 2 Gen 4
Jaar
2025
Prijs
$1,259
Gewicht
10.55 kg
Categorie
Road
Subcategorie
Endurance
Groepset
Claris
Frame
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle

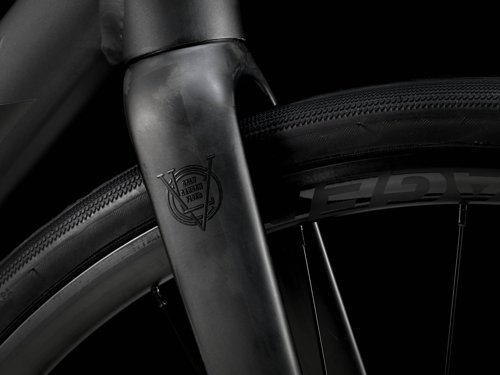

Voorvork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Veringtype
Rigid

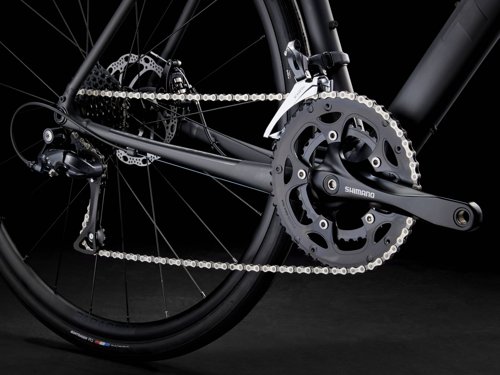

Aandrijving
Shifters
Size: 44, 49, 52, 54, 56, 58, 61, Shimano Claris ST-R2000-R, 8 speed, right; Size: 44, 49, 52, 54, 56, 58, 61, Shimano Claris ST-R2000-L, 8 speed, left
Achterderailleur
Shimano Claris RD-R2000, long cage, 34T max cog
Voorderailleur
Shimano Claris R2000, FD-R2000, 8-speed, 31.8mm clamp
Cassette
Shimano HG31, 11-32, 8 speed
Crankstel
Size: 44, Shimano RS200, 50/34 (compact), 165mm length; Size: 49, 52, 54, Shimano RS200, 50/34 (compact), 170mm length; Size: 56, 58, 61, Shimano RS200, 50/34 (compact), 175mm length
Trapas
Shimano UN30, 68mm, threaded cartridge, 110mm spindle
Ketting
Shimano Sora HG71, 8 speed
Wielen
Voornaaf
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Achternaaf
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Velgen
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spaken
14g stainless steel, black
Banden
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Remmen
Remtype
Mechanical Disc
Rembeschrijving
Tektro C550 mechanical disc brake, dual piston, flat mount
Cockpit
Stuurpen
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Stuur
Size: 44, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 49, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Zadel
Zadel
Verse Short, steel rails, 145mm width
Zadelpen
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Geometrie
| Afmetingen | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.467 mm | 1.512 mm | 1.537 mm | 1.568 mm | 1.608 mm | 1.678 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm |
| Front Center | 576 mm | 589 mm | 596 mm | 603 mm | 610 mm | 609 mm | 624 mm |
| Rake | 53 mm | 52 mm | 54 mm | 53 mm | 58 mm | 49 mm | 48 mm |
| Trail | 66 mm | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Stack | 510 mm | 540 mm | 561 mm | 575 mm | 591 mm | 611 mm | 646 mm |
| Reach | 360 mm | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 385 mm |
| Top Tube Length | 507 mm | 516 mm | 530 mm | 542 mm | 554 mm | 567 mm | 586 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 390 mm | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 95 mm | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Chainstay Length | 420 mm | 425 mm | 420 mm | 420 mm | 420 mm | 425 mm | 425 mm |
| Wheelbase | 983 mm | 1001 mm | 1003 mm | 1010 mm | 1018 mm | 1022 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Standover Height | 657 mm | 717 mm | 735 mm | 754 mm | 776 mm | 796 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 153 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
