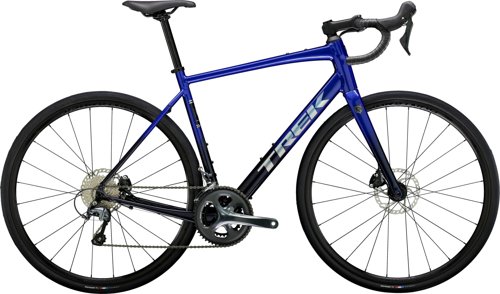

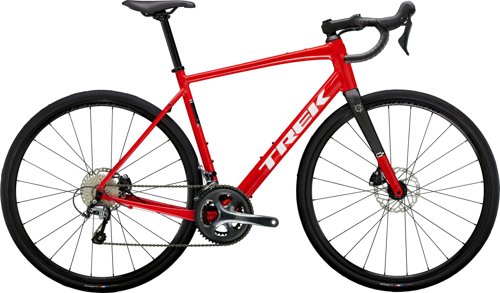

Domane AL 4 Gen 4
Trek
Endurance
Domane AL 4 Gen 4 is een endurance racefiets (2025) van Trek, in de Domane-serie. Deze fiets is gericht op rijders die comfort, vertrouwen en langere ritten prioriteren. Houding: comfortgerichte houding. Qua terrein: sterk op slecht asfalt. Op basis van de metrics springen eruit: sterke prijs/kwaliteit-verhouding, goede fit-flexibiliteit om je positie af te stellen en gebalanceerd aero-profiel. De belangrijkste trade-off is minder focus op pure snelheid dan speed-georiënteerde builds. Als dit dichtbij voelt: vergelijk hem op MatchBikes.com met alternatieven.
5.8
Beoordeling

Image 1 of 3
Score Summary
Prestatie
4.2
Waarde
9.1
Pasvorm
5.9
Prestatie
Built for speed and efficiency
Snelheid
5.2
Laag
Klimefficiëntie
5.4
Alleskunner
Aerodynamica
6.4
Gebalanceerde aero
Pasvorm
Dialed-in Fit & Comfort
Rijpositie
4.7
Comfort
Pasvorm Flexibiliteit
7.7
Verstelbaar
Rijcomfort
5.0
Gebalanceerd
Waarde
Prijs-kwaliteitverhouding
9.1
Uitzonderlijke waarde
Ondergrond Bereik
Ruwe wegSpecificaties
Algemeen
Merk
Trek
Model
Domane AL 4 Gen 4
Jaar
2025
Prijs
$1,889
Gewicht
10.35 kg
Categorie
Road
Subcategorie
Endurance
Groepset
Tiagra
Frame
Frame
100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, flat mount disc, UDH, 142x12mm thru axle
Voorvork
Domane AL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
Veringtype
Rigid
Aandrijving
Shifters
Shimano Tiagra R4720, 10 speed
Achterderailleur
Shimano Tiagra 4700, long cage, 34T max cog
Voorderailleur
Shimano Tiagra 4700, 31.8mm clamp
Cassette
Shimano HG500, 11-32, 10 speed
Crankstel
Size: 44, Shimano Tiagra 4700, 50/34, 165mm length; Size: 49, 52, Shimano Tiagra 4700, 50/34, 170mm length; Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5mm length; Size: 58, 61, Shimano Tiagra 4700, 50/34, 175mm length
Trapas
Shimano RS501 BSA
Ketting
Shimano Tiagra HG54, 10 speed
Wielen
Voornaaf
Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
Achternaaf
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
Velgen
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve
Spaken
14g stainless steel, black
Banden
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm
Remmen
Remtype
Hydraulic Disc
Rembeschrijving
Shimano Tiagra hydraulic disc, flat mount
Cockpit
Stuurpen
Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
Stuur
Size: 44, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width; Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 49, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width; Size: 52, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 44cm control width, 48cm drops width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Zadel
Zadel
Verse Short, steel rails, 145mm width
Zadelpen
Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
Geometrie
| Afmetingen | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.467 mm | 1.512 mm | 1.537 mm | 1.568 mm | 1.608 mm | 1.678 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm | 258 mm | 258 mm | 261 mm |
| Front Center | 576 mm | 589 mm | 596 mm | 603 mm | 610 mm | 609 mm | 624 mm |
| Rake | 53 mm | 52 mm | 54 mm | 53 mm | 58 mm | 49 mm | 48 mm |
| Trail | 66 mm | 66 mm | 59 mm | 59 mm | 61 mm | 60 mm | 63 mm |
| Stack | 510 mm | 540 mm | 561 mm | 575 mm | 591 mm | 611 mm | 646 mm |
| Reach | 360 mm | 368 mm | 371 mm | 374 mm | 377 mm | 380 mm | 385 mm |
| Top Tube Length | 507 mm | 516 mm | 530 mm | 542 mm | 554 mm | 567 mm | 586 mm |
| Seat Tube Angle | 74.6 ° | 74.6 ° | 74.2 ° | 73.7 ° | 73.3 ° | 73 ° | 72.7 ° |
| Seat Tube Length | 390 mm | 440 mm | 475 mm | 500 mm | 525 mm | 548 mm | 576 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 71.3 ° | 71.3 ° | 71.9 ° | 72 ° | 72.1 ° |
| Head Tube Length | 95 mm | 123 mm | 145 mm | 160 mm | 175 mm | 195 mm | 235 mm |
| Chainstay Length | 420 mm | 425 mm | 420 mm | 420 mm | 420 mm | 425 mm | 425 mm |
| Wheelbase | 983 mm | 1001 mm | 1003 mm | 1010 mm | 1018 mm | 1022 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm | 78 mm | 78 mm | 75 mm |
| Standover Height | 657 mm | 717 mm | 735 mm | 754 mm | 776 mm | 796 mm | 842 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 156 cm | 162 cm | 167 cm | 173 cm | 179 cm | 184 cm |
| Rider Max Height | 153 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm |
