RAZE CARBON R
Mondraker
Trail
RAZE CARBON R est un VTT trail (2023) de Mondraker. Ce vélo vise des riders qui veulent un ressenti off-road plus actif et orienté performance. Position: sportive et active. Terrain: à l’aise sur sentiers naturels et terrain mixte. Côté métriques, il/elle se distingue par très à l’aise en montée sur efforts longs, un comportement plus confortable sur la durée et une suspension solide en terrain cassant. Le compromis principal: moins axé vitesse pure que les montages orientés performance. Prochaine étape: comparez ce vélo sur MatchBikes.com.
7.1
Note

Image 1 of 4
Score Summary
Performance
6.9
Ajustement
7.4
Performance
Built for speed and efficiency
Vitesse
4.9
Très faible
Efficacité en montée
9.1
Chèvre de montagne
Suspension
7.0
Prêt pour gros impacts
Ajustement
Dialed-in Fit & Comfort
Position de conduite
7.4
Sportive
Flexibilité de l'ajustement
6.2
Modérément ajustable
Confort de conduite
8.0
Confortable
Valeur
Variété de surfaces
Trails naturelsSpécifications
Général
Marque
Mondraker
Modèle
RAZE CARBON R
Année
2023
Poids
13.5 kg
Catégorie
Mountain
Sous-catégorie
Trail
Groupe
GX Eagle, NX Eagle
Roues
29"
Cadre
Cadre
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Fourche Suspendue
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Amortisseur Arrière
Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings
Type de suspension
Full
Transmission
Manettes de Changement
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1
Dérailleur Arrière
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Pédalier
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm, Rings: 32T, CNC-machined alloy, X-SYNC 2
Boîtier de Pédalier
SRAM DUB BSA, sealed bearings, 73mm
Chaîne
SRAM NX Eagle, 12s, Powerlock
Roues
Moyeu Avant
Infinity hub, Boost 15x110mm, IS 6 bolts
Moyeu Arrière
Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts
Jantes
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Rayons
24 straight-pull double butted spokes
Pneus
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
Freins
Type de frein
Hydraulic Disc
Description des freins
Front: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Leviers de Frein
SRAM G2, SwingLink, tool-free reach adjust
Cockpit
Potence
ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Cintre
ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Poignées
ONOFF Desert, 1lock-on, 135mm
Assise
Selle
Fizik Antares R7
Tige de Selle
ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

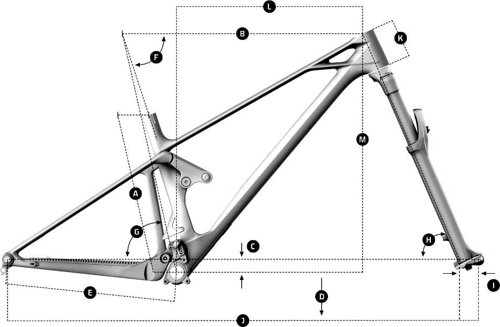

Géométrie
| Mesure | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.3 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 760 mm | 784 mm | 810 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 157 mm | 131 mm |
| Stack | 600 mm | 609 mm | 623 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 587 mm | 612 mm | 637 mm | 662 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 375 mm | 415 mm | 445 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1185 mm | 1209 mm | 1235 mm | 1261 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | -30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
