RAZE CARBON R
Mondraker
Trail
RAZE CARBON R est un VTT trail (2024) par Mondraker. Ce vélo vise des riders qui veulent un ressenti off-road plus actif et orienté performance. Position: sportive et active. Terrain: à l’aise sur sentiers naturels et terrain mixte. Les points forts selon les métriques: très à l’aise en montée sur efforts longs, un comportement plus confortable sur la durée et une suspension solide en terrain cassant. Face à des spécialistes, le compromis est moins axé vitesse pure que les montages orientés performance et la valeur dépend plus des priorités que du prix pur. Prochaine étape: comparez ce vélo sur MatchBikes.com.
5.9
Note

Image 1 of 4
Score Summary
Performance
6.9
Valeur
1.2
Ajustement
7.3
Performance
Built for speed and efficiency
Vitesse
4.8
Très faible
Efficacité en montée
9.1
Chèvre de montagne
Suspension
7.0
Prêt pour gros impacts
Ajustement
Dialed-in Fit & Comfort
Position de conduite
7.2
Sportive
Flexibilité de l'ajustement
6.2
Modérément ajustable
Confort de conduite
8.0
Confortable
Valeur
Rapport qualité-prix
1.2
Trop cher
Variété de surfaces
Trails naturelsSpécifications
Général
Marque
Mondraker
Modèle
RAZE CARBON R
Année
2024
Prix
$7,739
Poids
13.6 kg
Catégorie
Mountain
Sous-catégorie
Trail
Groupe
GX Eagle, NX Eagle
Roues
29"
Cadre
Cadre
Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.
Fourche Suspendue
Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Amortisseur Arrière
Fox Float EVOL Performance, 205x57.5mm. Settings: 2-position compression adjustment (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Type de suspension
Full
Transmission
Manettes de Changement
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1
Dérailleur Arrière
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Pédalier
Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL 52, Rings: 32T, CNC-machined alloy, X-SYNC 2
Boîtier de Pédalier
SRAM DUB BSA, sealed bearings, 73mm
Chaîne
SRAM NX Eagle, 12s, Powerlock
Roues
Moyeu Avant
Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Moyeu Arrière
Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts, XD freehub
Jantes
Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes
Rayons
Mavic 24 straight-pull double butted spokes
Pneus
Front: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead, Rear: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
Freins
Type de frein
Hydraulic Disc
Description des freins
Front: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads
Leviers de Frein
SRAM G2 R, tool-free reach adjust, lever pivot bushings
Cockpit
Potence
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Cintre
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Poignées
Onoff Desert, 1lock-on, 135mm
Assise
Selle
Fizik Vento Argo X5
Tige de Selle
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

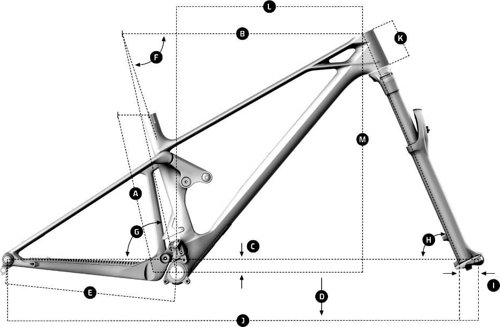

Géométrie
| Mesure | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.336 mm | 1.299 mm | 1.275 mm | 1.252 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 760 mm | 784 mm | 810 mm | 836 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 157 mm | 131 mm |
| Stack | 608 mm | 617 mm | 631 mm | 645 mm |
| Reach | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 595 mm | 620 mm | 645 mm | 670 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 375 mm | 415 mm | 445 mm | 500 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 90 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1193 mm | 1217 mm | 1243 mm | 1269 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | -30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
